Zoomlion 25 Ton 5 Section Boom Crane Qy25V552 in Uganda
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Five-Arm
Base Info
- Model NO.：QY25V552
- Type：Folding
- Sling Type：Wire Rope
- Main Girder Form：Single Girder
- Power Source：Hydraulic
- Span：6.1 M
- Engine：Weichai
- Transport Package：RO-RO,Bulk,Container
- Specification：12510*2500*3455mm
- Trademark：Zoomlion
- Origin：China
- HS Code：84269100
- Production Capacity：1000 Set Per Month
Description
Item
Value
Working performance specification
Max. rated total lifting capacity
25000 kg
Max. load moment of basic boom
980 kN.m
Max. load moment with max. main boom
length
573 kN.m
Max. lifting height of basic boom
11.5 m
Max. lifting height of main boom
33.8 m
Max. lifting height of fly jib
41.6 m
Working speed
Max. speed of single rope on main winch
120 m/min
Max. speed of single rope onauxiliary winch
105 m/min
Derricking time of boom
40 s
Telescopic time of boom
60 s
Slewing speed
0~2.2 r/min
Traveling specification
Max. traveling speed
72 km/h
Max. gradeability
40 %
Min. turning circle diameter
20 m
Min. ground clearance
220 mm
Limits for exhaust pollutants and smoke
Comply with related standards
Oil consumption per hundred kilometers
46 L
Mass specification
Deadweight of crane in traveling condition
28930 kg
Complete vehicle kerb mass
28800 kg
Front axle load
6300 kg
Rear axle load
22630 kg
Dimension specification
Overall dimensions(L×W×H)
13000×2500×3450 mm
Base on outriggers
5.36 m
Distance between outriggers
6.1 m
Main boom length
10.5~33.3 m
Main boom angle°
-2~80
Fly jib length
8 m
Offset angle of fly jib°
0 , 30
Chassis
Model
ZLJ5314
Class
II
Feature No.
ZLJ5314D3.1
Engine
Model
WP10.270
Rated power
199/2200 kW/r/min
Max. output torque
1100/1200~1600 N.m/r/min

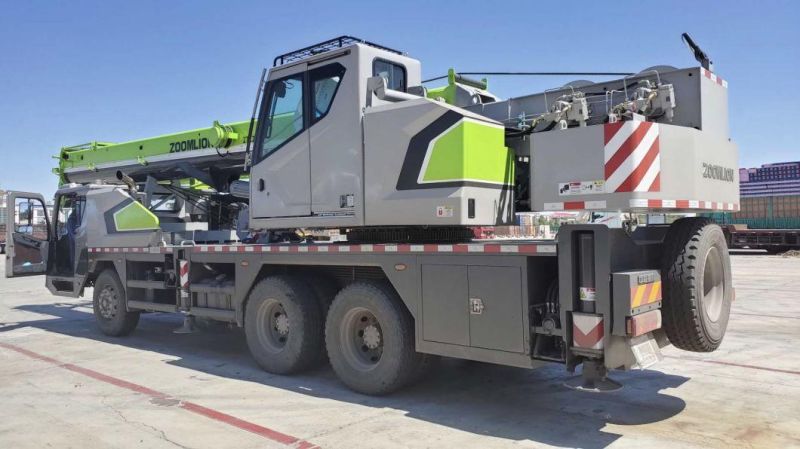

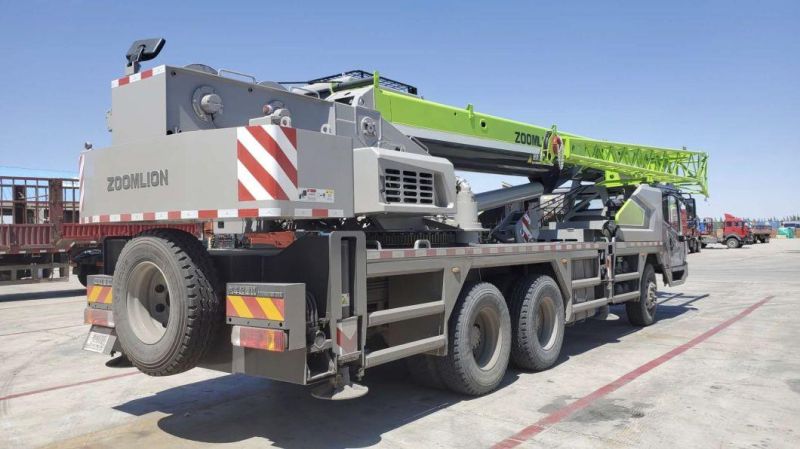

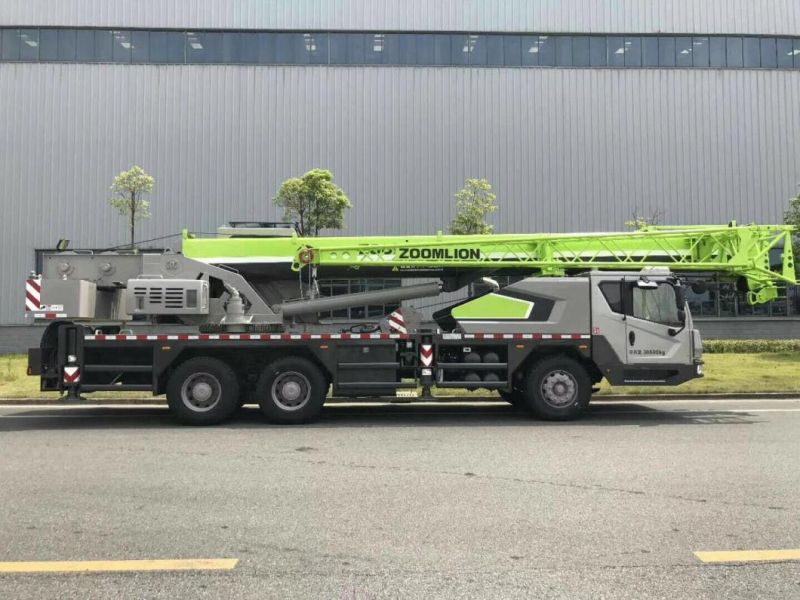

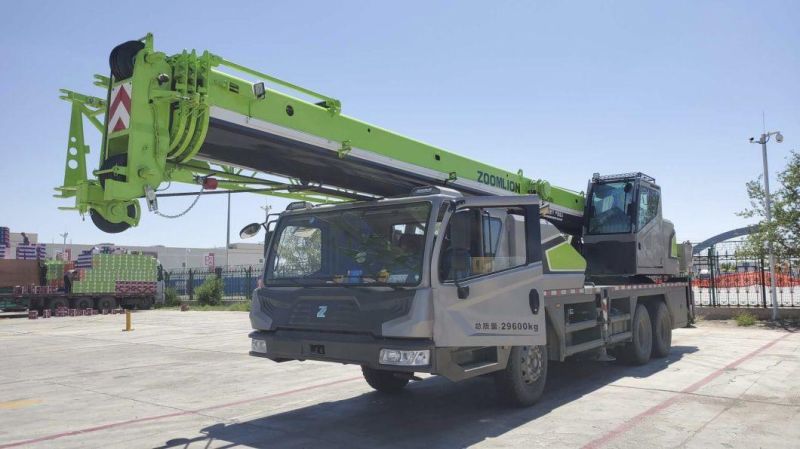

Product Show
