150ton Heavy Construction Equipment Mobile Crawler Crane in Dubai
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Max. Lifting Height：81m
- Rated Loading Capacity：150ton
- Certification：ISO9001, CE
- Condition：New
- Warranty：1 Year
- Max.Load Moment：927.4t*M
Base Info
- Model NO.：XGC150
- Main Boom Length：18-81m
- Fix Jib Length：13-31m
- Transport Package：Nude
- Specification：150ton
- Origin：Jiangsu China
- HS Code：8426491000
- Production Capacity：500 Units Per Month
Description
XGC150
Items
Unit
Data
Basic boom
T
150
Fixed jib
T
24
Max. load moment
t/m
927.4
Boom length
M
18-81
Boom working condition
.
30-80
Fixed jib working condition
.
30-80
Fixed jib length
M
13-31
Winch mechanism max single line speed(no load, at 5th layer)
m/min
110
Boom elevating mechanism max. single line speed(no load, at 1st layer)
m/min
2×32
Max rope single line pull
T
13.5
Wire rope diam
Mm
26
Max slewing speed
r/min
1.5
Max traveling speed
Km/h
1.3
Grade ability
%
30
Average ground pressure
Mpa
0.102

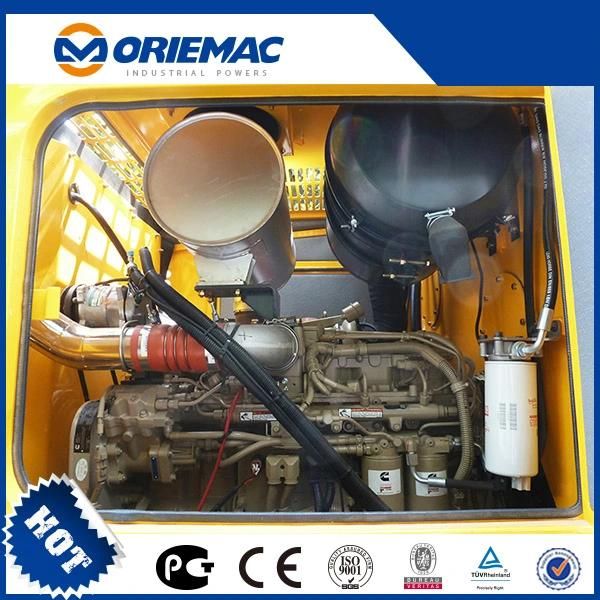

Engine power
Kw
235
Mass of the vehicle as a whole( including main hook block and 19m boom)
T
154
Max mass of single unit in travel configuration
37
Max dimension of single unit in travel configuration(L×W×H)
t
11.0×3.0×3.3
