• Model NO.：XGC55
• Type：Under-Slewing Crane
• Item Model：Lifting Equipment Construction Machinery
• Max. Rated Lifting Capacity：55t
• Overall Weight：48.5 Tons
• Transportation Dimension：11500*3470*3400 mm
• Engine Model：Shangchai Diesel Engine
• Engine Power：125 Kw
• Fixed Jib Length：9.15~15.25m
• Gradeability：40%
• Loading Method：1*40fr + 5*40′hq
• Warranty：1 Year
• Transport Package：Nude Package
• Specification：ISO, CE, GOST
• Trademark：~
• Origin：Jiangsu, China(Mainland)
• HS Code：84295212
• Production Capacity：800PCS,Month

Basic Info.

Model NO. XGC55 Type Under-Slewing Crane Item Model Lifting Equipment Construction Machinery Max. Rated Lifting Capacity 55t Overall Weight 48.5 Tons Transportation Dimension 11500*3470*3400 mm Engine Model Shangchai Diesel Engine Engine Power 125 Kw Fixed Jib Length 9.15~15.25m Gradeability 40% Loading Method 1*40fr + 5*40′hq Warranty 1 Year Transport Package Nude Package Specification ISO, CE, GOST Trademark ~ Origin Jiangsu, China(Mainland) HS Code 84295212 Production Capacity 800PCS/Month

Product Description

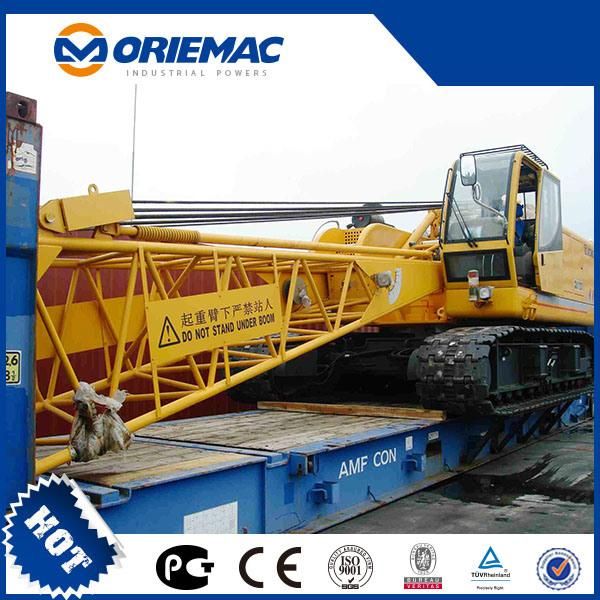

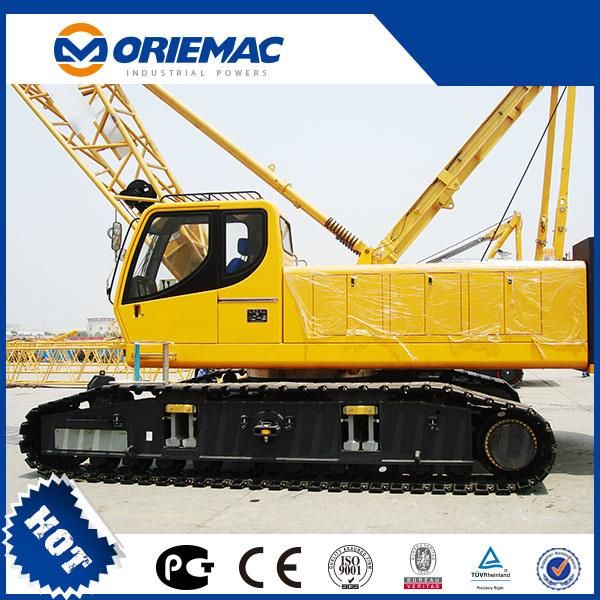

Chinese New Brand New 55ton Xgc55 Crawler Crane Sale in The Philippines
XGC55 crawler crane:The XGC55 crawler crane is a new generation of crawler crane product successfully developed by following QUY55 crawler crane. While inheriting the advantages of the old products, the new generation pays more attention to improving the performance, operating efficiency, convenience for disassembly and transportation, and comfort of operation. The system is mature and reliable, and the safety devices are complete. It is equipped with a self-erecting function, main winch quick release function, one key switch function, an engine cold start device, a winch monitoring system, a hydraulic high-pressure bypass filter system, and an electronic level gauge, anti-lightning system, travel commutation function, the main boom catwalk and other advanced technology, all aspects of performance are superior to the domestic counterparts.

Gradeability: 40%
Max. Travel speed: 1.35km/h
Max. Swing speed: 1.5r/min


Items	Unit	Parameter value
Performance parameters		*
Max. rated lifting load of main boom	(t)	55
Max. rated lifting load of fixed jib	(t)	11.4
Max. rated lifting load of luffing jib	(t)	-
Max. lifting load moment	(t.m)	203.5
Max. lifting load of tower jib	(t)	-
Max. rated lifting load of boom single pulley	(t)	6
Max. rated lifting load of special jib	(t)	-
Size		*
Main boom length	(m)	13~52
Main boom luffing angle	(°)	-3~80
Fixed jib length	(m)	7~16
Tower jib length	(m)	-
Max. size of single unit for transport (L×W×H)	(m)	12.04×3.45×3.36
Installation angle of fixed jib	(°)	10,30
Special jib length	(m)	-
Speed		*
Max. single line speed of hoist system	(m/min)	125
Max. single line speed of main luffing system	(m/min)	87/78
Max. single line speed of jib luffing system	(m/min)	-
Max. slewing speed	(r/min)	2.45/2.2
Max. travel speed	(km/h)	1.37/1.22
Gradeability	(%)	30
Average ground pressure	(MPa)	0.06
Max. single line speed of tower jib luffing system	(m/min)	-
Max. single line speed of SL luffing system	(m/min)	-
Engine		*
Model	-	SC7H210.1G3/QSB6.7
Engine power	(kW)	155/153
Emission	-	National III stage/Europe III
Mass		*
Crane overall mass	(t)	46.3(Main hook,13m boom)
Max. weight of single unit for transport	(t)	28.6
