Brand Factory Price Stc300s 30t 30 Ton Cranes Truck Crane Mobile Cranes
Evangel Industrial (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Five-Arm
Base Info
- Model NO.：STC300
- Type：Folding
- Longest Boom + Jib：43 + 15.25
- Rated Power/Revolution Speed：350 Kw , 1800 Rpm
- Boom Length：1320 Kn.M
- Swing Speed：2 R,Min
- HVAC in up Cab：Cooling and Heating
- Weight：30000kg
- 50000 Kg Front Axle Load：20000 Kg
- Transport Package：Regular Package

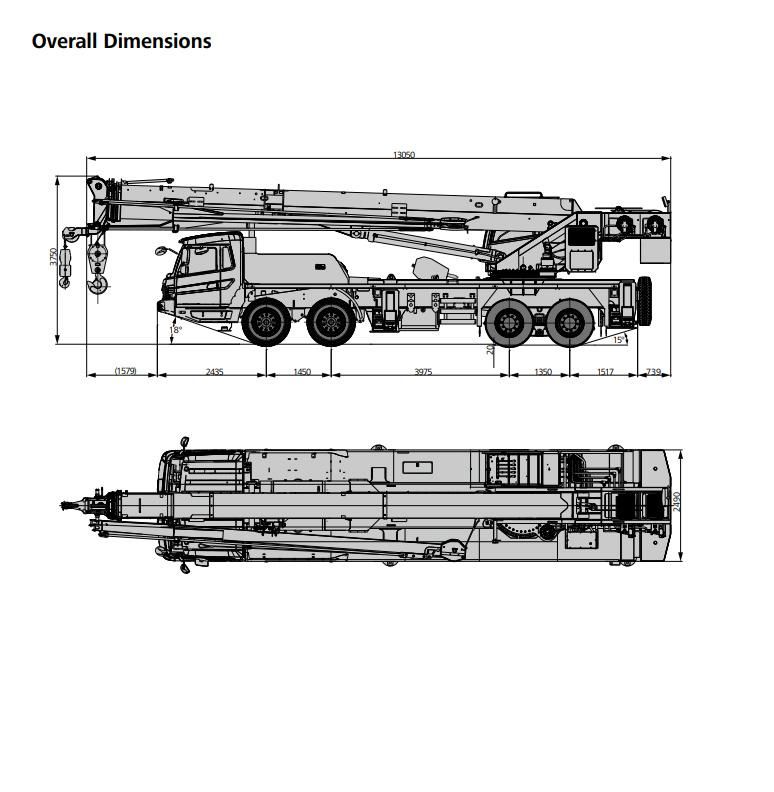

- Specification：14000*2800*4000kg
- Origin：China
- Production Capacity：50
Description
Basic Info.
Model NO. STC300 Type Folding Longest Boom + Jib 43 + 15.25 Rated Power/Revolution Speed 350 Kw / 1800 Rpm Boom Length 1320 Kn.M Swing Speed 2 R/Min HVAC in up Cab Cooling and Heating Weight 30000kg 50000 Kg Front Axle Load 20000 Kg Transport Package Regular Package Specification 14000*2800*4000kg Origin China Production Capacity 50Product Description

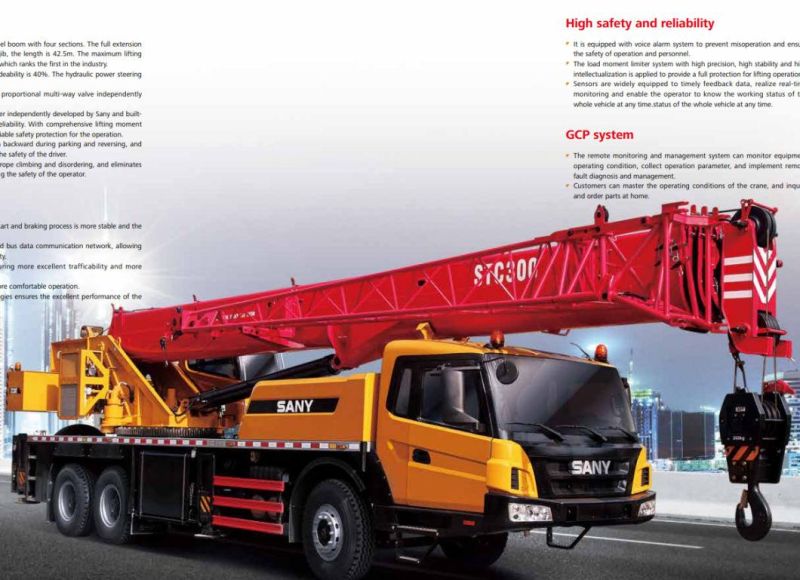

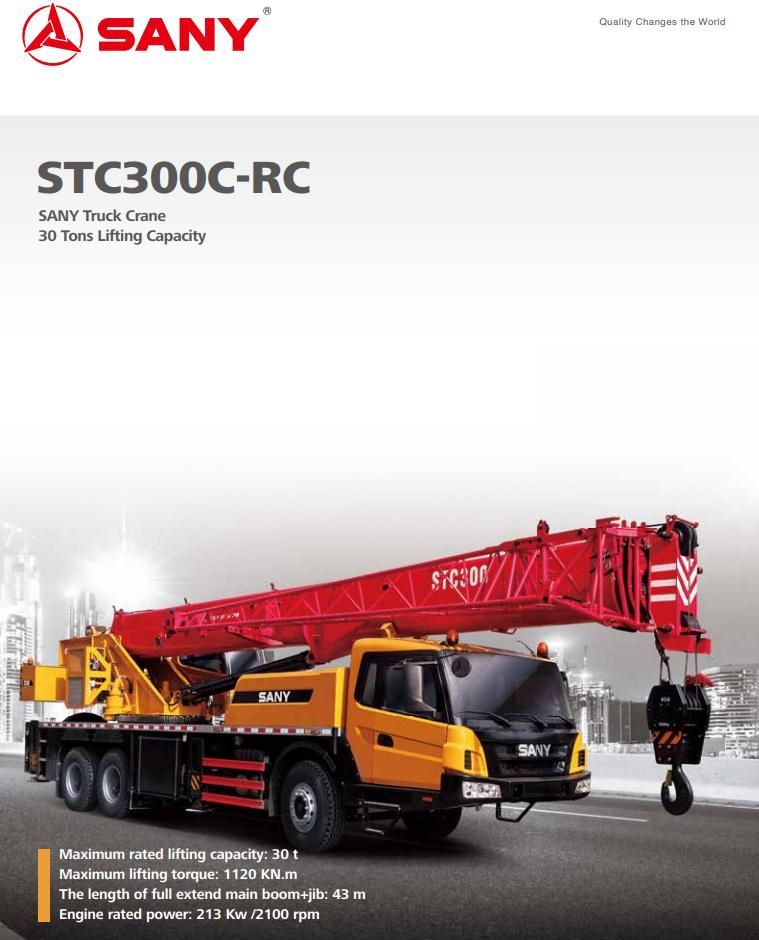

STC300 30t Truck Crane mobile cranesProduct Description
Excellent performance

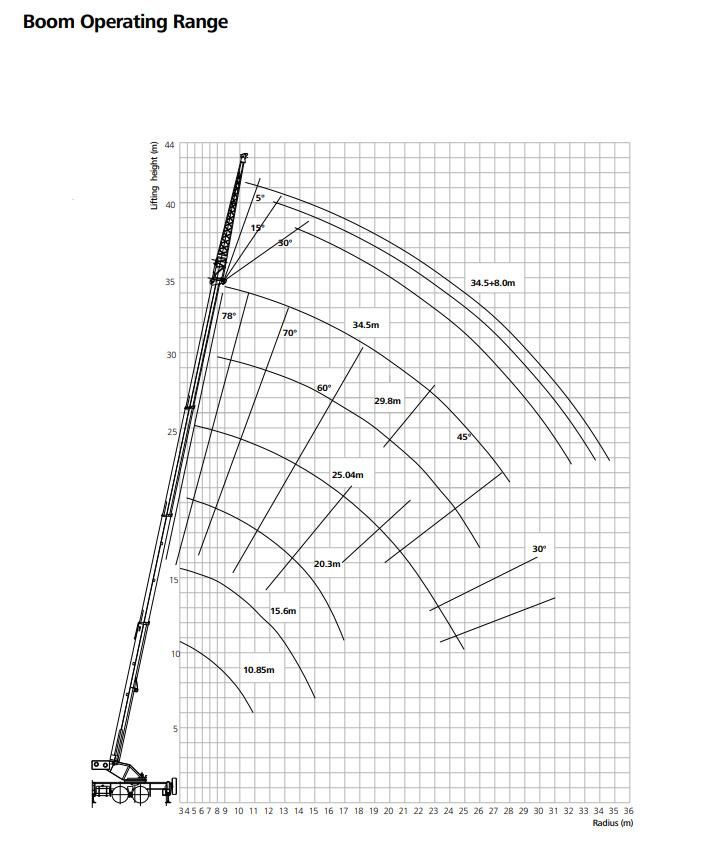

The crane is equipped with U shaped high-tensile structural steel boom with four sections. The full extension of the main boom is 34.5m, and adding the length of flying jib, the length is 42.5m. The maximum lifting height is 43m, and the maximum lifting moment is 1120kN·m, which ranks the first in the industry.The maximum driving speed is 80km/h, and the maximum gradeability is 40%. The hydraulic power steering adopted features simple structure and easy steering.
Good quality
It is adopted with international advanced distributed integrated bus data communication network, allowing processing of large amounts of data, fast speed and high stability. With streamlined full-width cab, it provides wider vision and more comfortable operation.

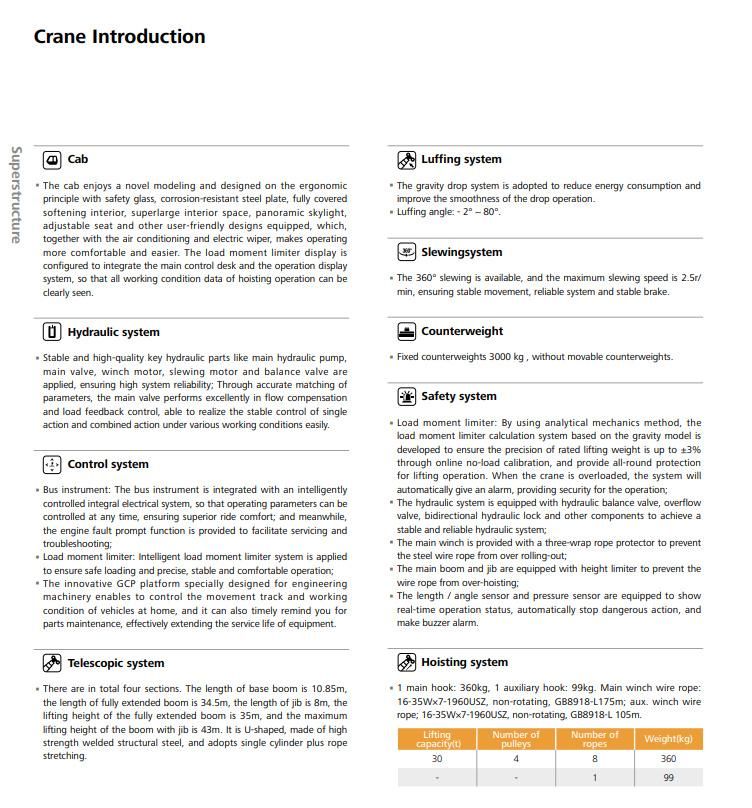

High safety and reliability
It is equipped with voice alarm system to prevent misoperation and ensure the safety of operation and personnel. The load moment limiter system with high precision, high stability and high intellectualization is applied to provide a full protection for lifting operations.
GCP system
The remote monitoring and management system can monitor equipment operating condition, collect operation parameter, and implement remote fault diagnosis and management. Customers can master the operating conditions of the crane, and inquire and order parts at home.
