• Model NO.：STC700T
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Straight Arm
• Max. Rated Lifting Capacity：70t
• Engine Model：Cummins
• Rated Power/Revolution Speed：213,2100 Kw, Rpm

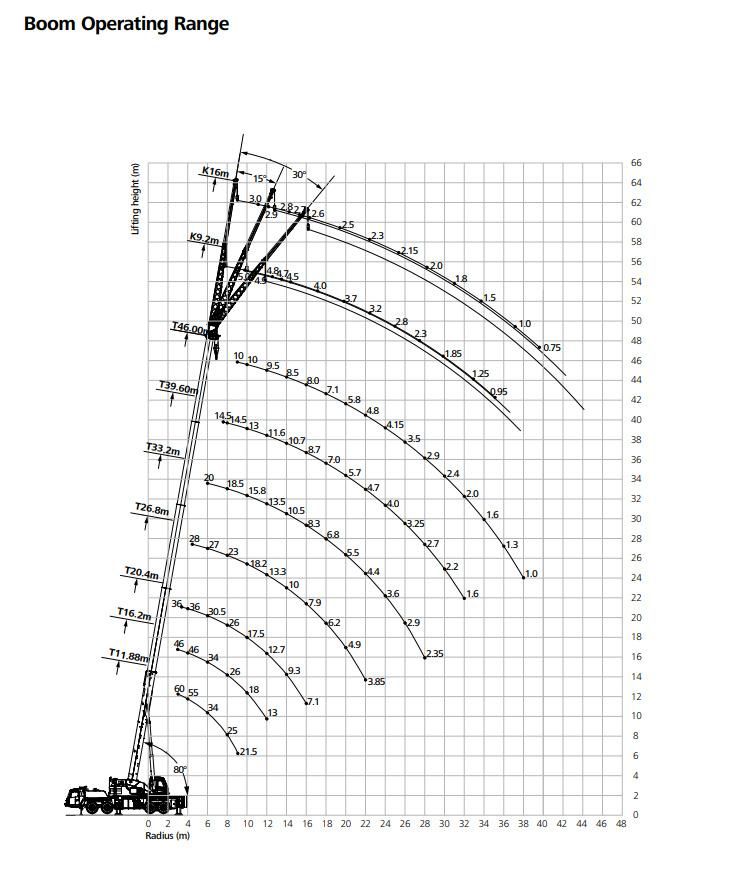

• Length-Full-Extend Boom+Jib：48.1m
• Swing Speed：0~2 R,Min
• HVAC in up Cab：Cooling
• HVAC in Low Cab：Cooling and Heating

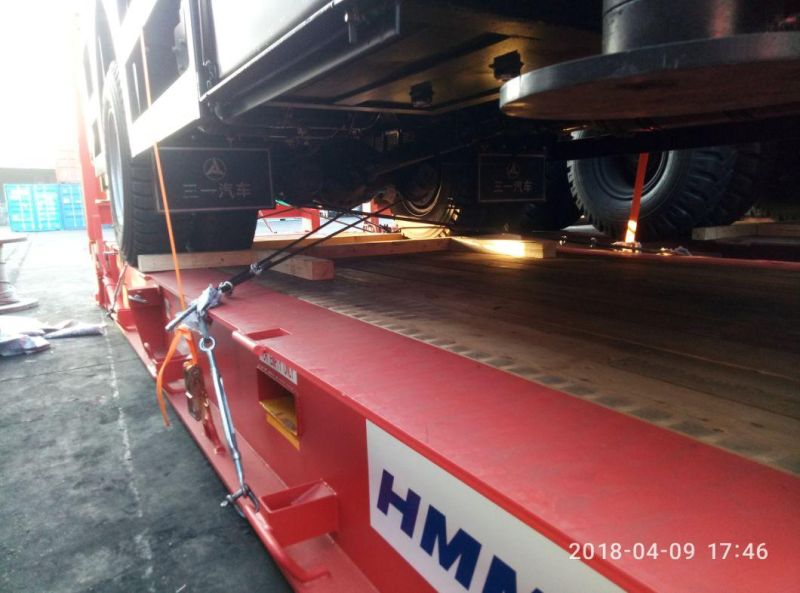

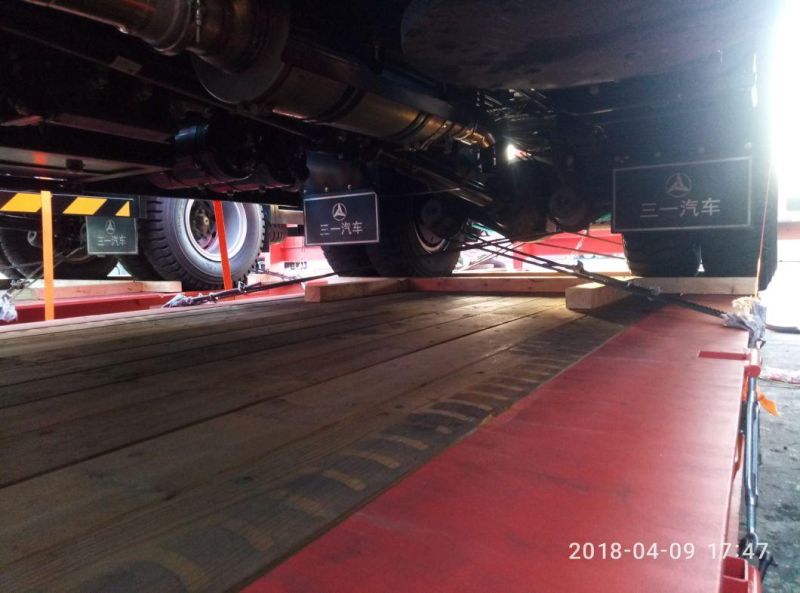

• Transport Package：Regular Package

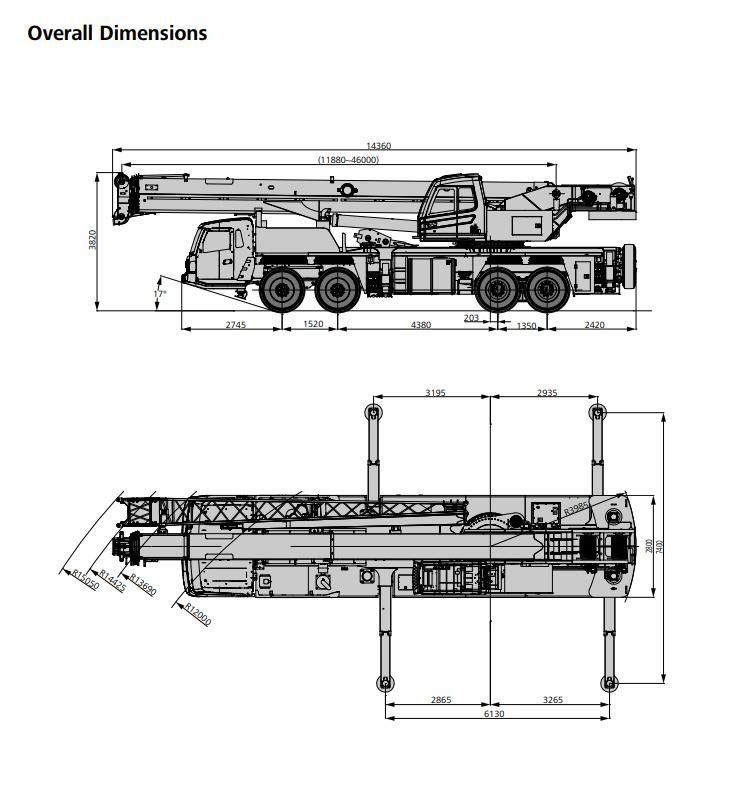

• Specification：12800*2500*4000
• Origin：China
• Production Capacity：100

Basic Info.

Model NO. STC700T Shaft Number 3 Crane Jib Four-Arm Type Straight Arm Max. Rated Lifting Capacity 70t Engine Model Cummins Rated Power/Revolution Speed 213/2100 Kw/ Rpm Length-Full-Extend Boom+Jib 48.1m Swing Speed 0~2 R/Min HVAC in up Cab Cooling HVAC in Low Cab Cooling and Heating Transport Package Regular Package Specification 12800*2500*4000 Origin China Production Capacity 100

Product Description

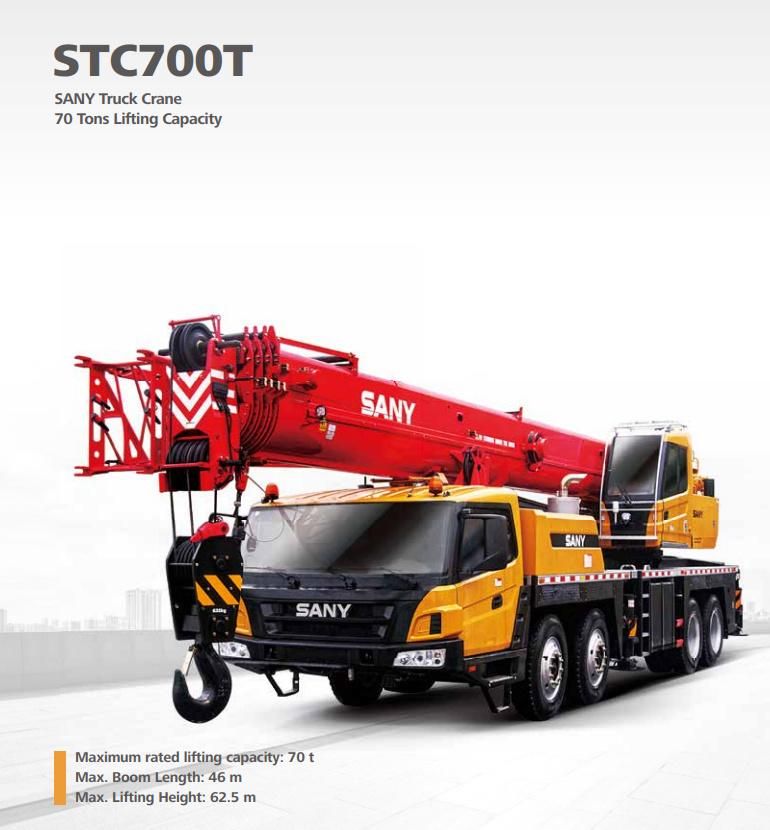

                                                70 ton STC700T Truck Crane mobile crane




Product Description

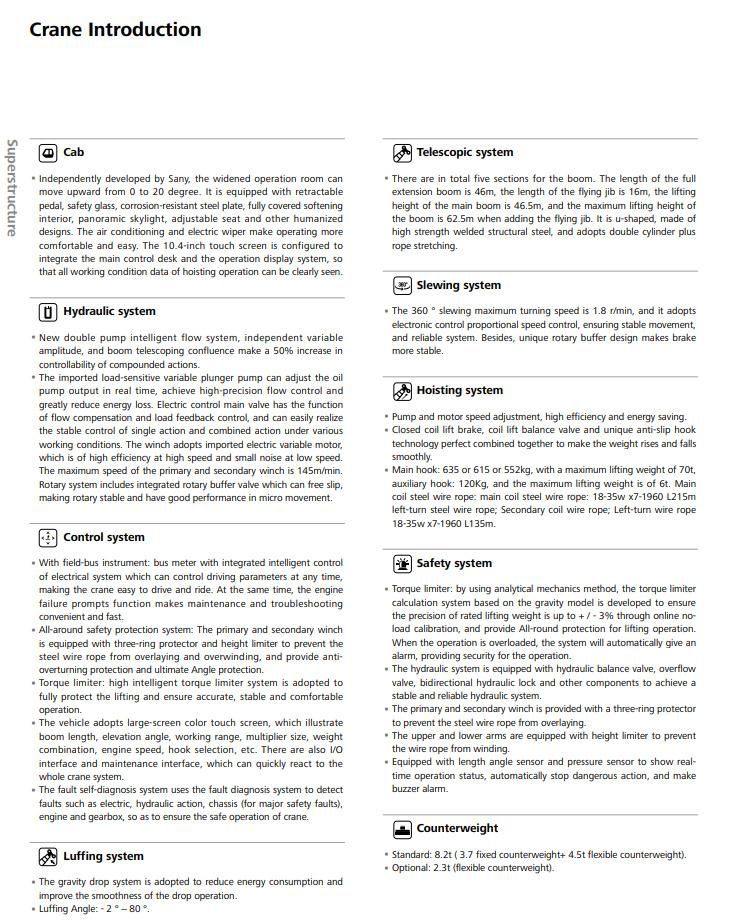

 STC700T truck crane is designed with five-section boom that is made of high strength steel structure and optimized U-shaped cross section. Its maximum lifting capacity is 70 ton, full-extended boom length of 46m. And the maximum lifting moment is 2107kN.m.

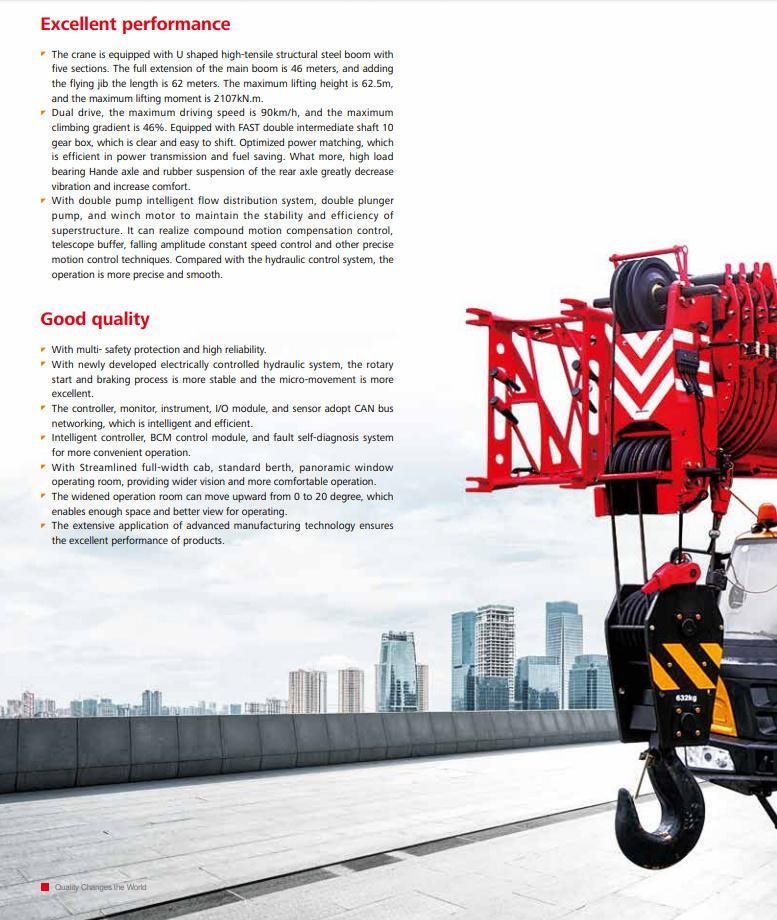

Excellent performance

High load bearing Hande axle and rubber suspension of the rear axle greatly decrease vibration and increase comfort. Compared with the hydraulic control system, the operation is more precise and smooth.

Good quality

With multi- safety protection and high reliability. Intelligent controller, BCM control module, and fault self-diagnosis system for more convenient operation. With Streamlined full-width cab, standard berth, providing wider vision and more comfortable operation.

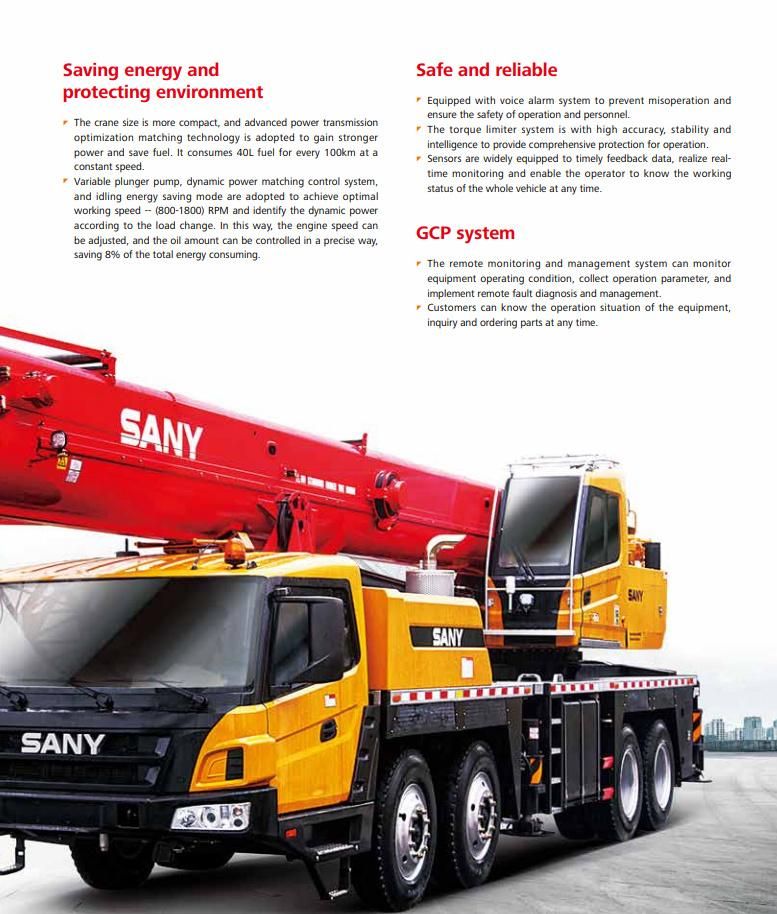

Saving energy and protecting environment

The crane size is more compact, and advanced power transmission optimization matching technology is adopted to gain stronger power and save fuel. It consumes 40L fuel for every 100km at a constant speed. The engine speed can be adjusted, and the oil amount can be controlled in a precise way, saving 8% of the total energy consuming.

Safe and reliable

Equipped with voice alarm system to prevent misoperation and ensure the safety of operation and personnel. The torque limiter system is with high accuracy, stability and intelligence to provide comprehensive protection for operation.

GCP system

The remote monitoring and management system can monitor equipment operating condition, collect operation parameter, and implement remote fault diagnosis and management. Customers can know the operation situation of the equipment, inquiry and ordering parts at any time.
