• Model NO.：STC160C
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Straight Arm

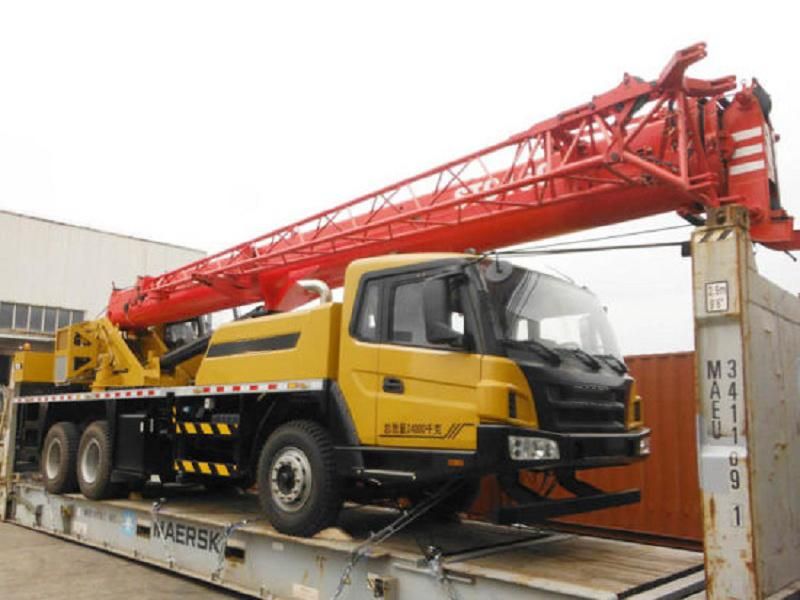

• Shipping Method：40fr, RO-RO or Bulk Ship
• Transport Package：Nude
• Specification：Mini truck crane
• Trademark：Oriemac
• Origin：China
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. STC160C Shaft Number 3 Crane Jib Four-Arm Type Straight Arm Shipping Method 40fr, RO-RO or Bulk Ship Transport Package Nude Specification Mini truck crane Trademark Oriemac Origin China Production Capacity 2000PCS/Year

Product Description

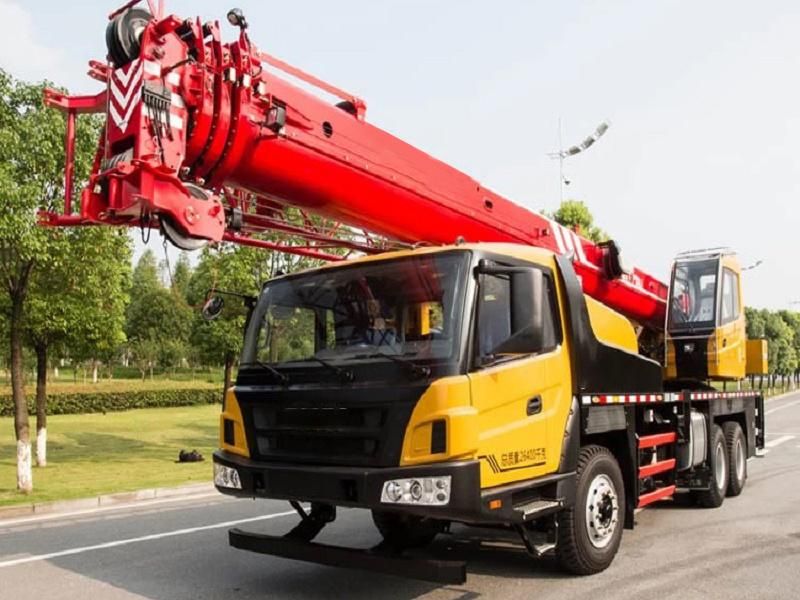

16 Ton crane small Truck Crane Stc160c Price



Main parameters:
Benefits & Features

Powerful load capacity
With box-type heavy frame design, its anti-bending and torsional modulus is greatly improved, and the rigidity is improved above 30%.
Strong travelling capacity
High power engine + Fast 8-gear gearbox, it is more powerful and more mobility.
Innovative layout
Power system and transmission system are of optimized layout; the bedplate is more flat with super-large storage space.
Diversified matching options
Functional matching: Auxiliary winch is optional, and the customers could choose independently to satisfy diversity of working conditions; superstructure air conditioner is optional;
Regional matching: Engine emissions complies with Euro , Euro , Euro standards;
Tire: radial tire, bias tire.


Dimension	Unit	STC160
Overall length	mm	12000
Overall width	mm	2500
Overall height	mm	3640
Power
Engine		Shangchai
Engine rated power	kW/(r/min)	180/2300
Engine rated torque	N.m/(r/min)	960/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	10.5
Max. grade ability	%	40
Fuel consumption for 100km	L	28
Main performance
Max. rated total lifting capacity	t	16
Base boom	m	10.5
Fully extended boom	m	32
Fully extended boom+ jib	m	40
Working speed
Boom luffing time	s	50
Boom full extension time	s	65
Max. swing speed	r/min	2.1
Max. speed of main winch (single rope) (no load)	m/min	105
Max. speed of aux. winch (single rope) (no load)	m/min	105
