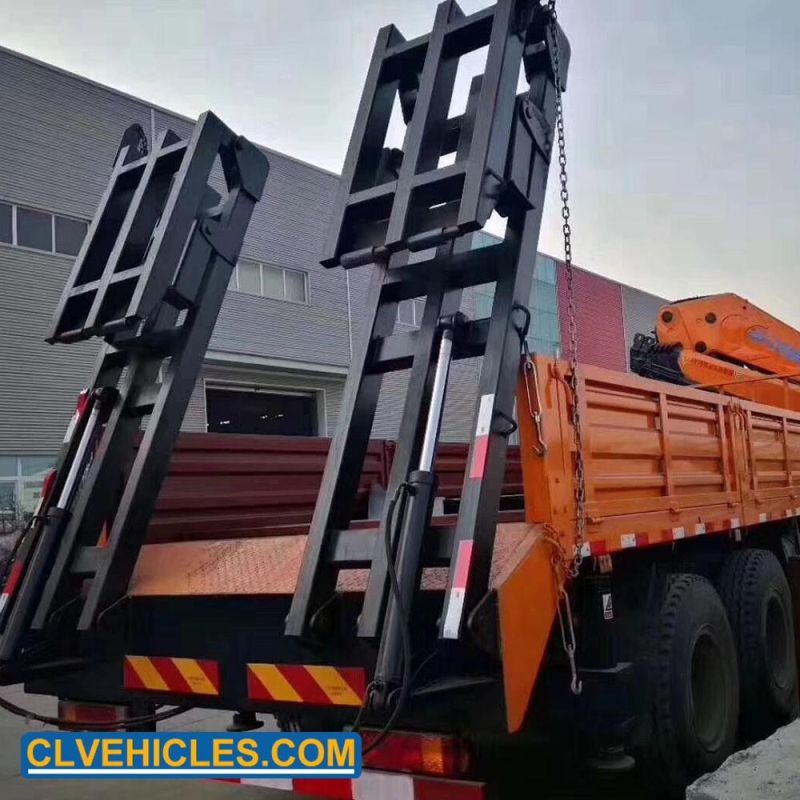

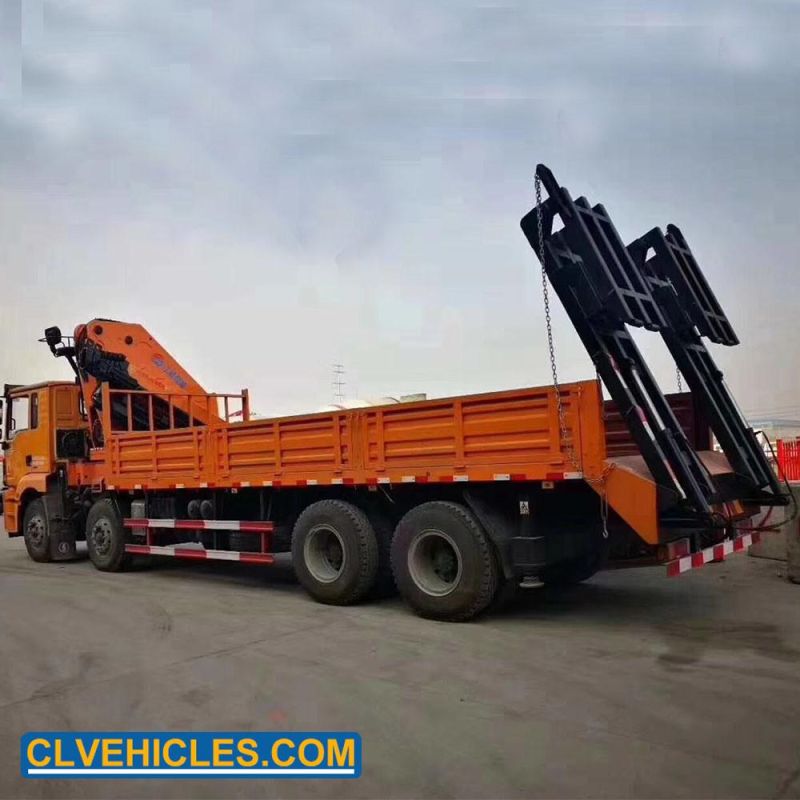

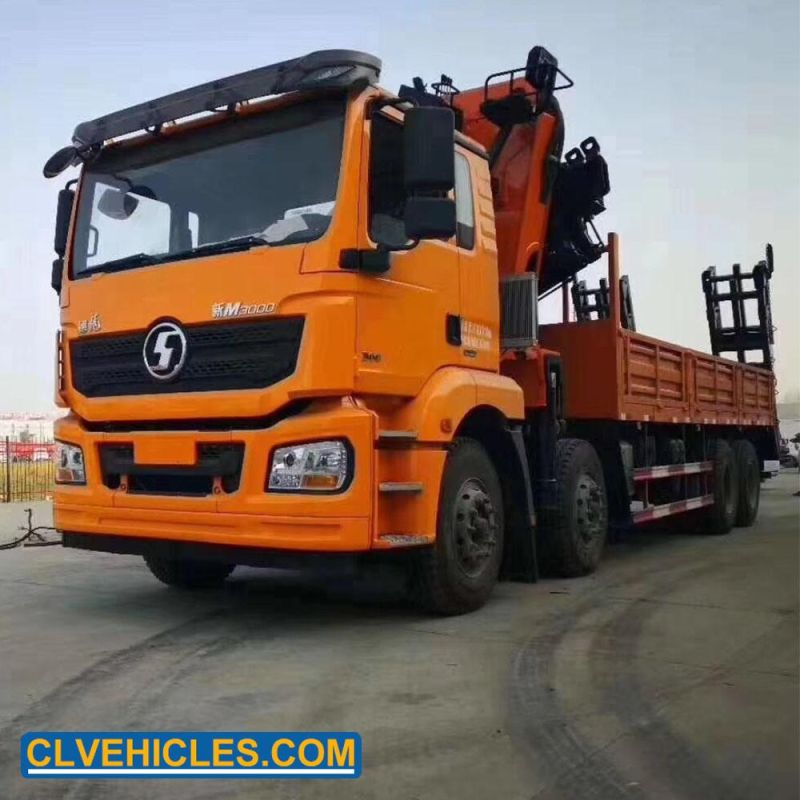

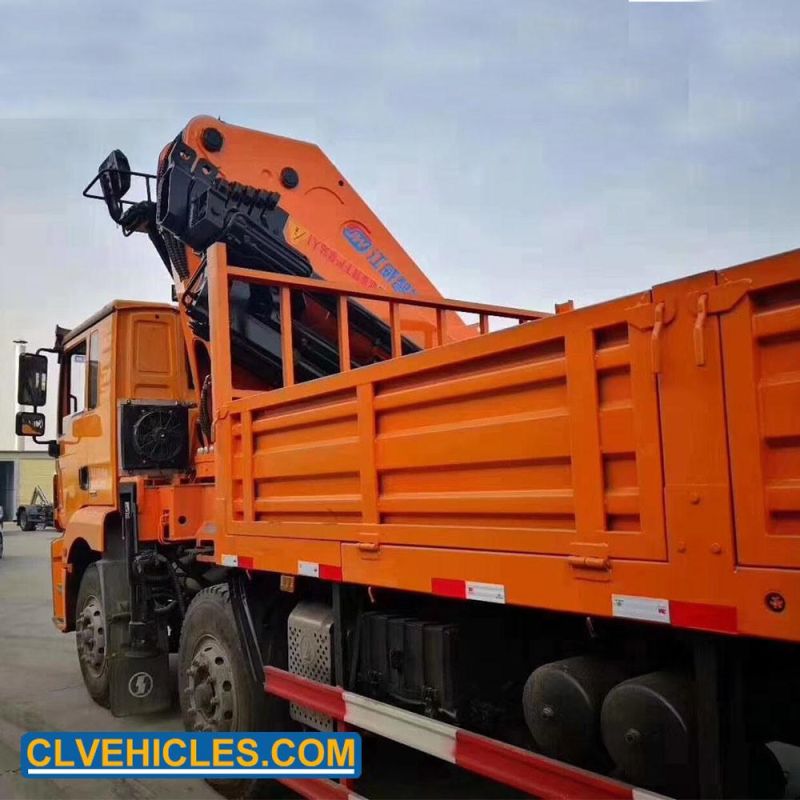

Folding Boom Crane Shacman 20ton Truck Mounted Crane Truck
Chengli Special Automobile Factory- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：20-25m
- Maximum Lifting Weight：>16t
- Shaft Number：4
- Crane Jib：Three-Arm
Base Info
- Model NO.：CLW
- Type：Folding
- Transport Package：Nude
- Specification：12280X2190X2270
- Trademark：CLW
- Origin：China
- HS Code：8701909000
- Production Capacity：500units One Month
Description
Plate spring piece number8/6+5 Approach/departure angle 24/16 Front/real overhang 1015/1500 Tire size 12R22.5 Tire qty 12
Upper Equipment
Upper Equipment
| Items | Unit | SPS8000A | SPS8001B |
| Rated lifting weight | Kg | 3200 | 3200 |
| rated lifting moment | T.m | 8 | 8 |
| Max outreach | m | 7.8 | 10.2 |
| Max lifting height | m | 9.8 | 12.5 |
| Length of the basic boom | m | 3.4 | 3.5 |
| Length of the fully extended boom | m | 8 | 10.4 |
| Numbers of the boom | / | 3 | 4 |
| Profile method of the basic boom | / | Hexagon | Hexagon |
| Range of the boom lifting angle | . | 0-75 | 0-75 |
| Slewing angle | Full circle | Full circle | |
| Outrigger span | mm | 4400 | 4400 |
| Recommended volume for the system | L/min | 35 | 35 |
| Recommended oil tank volume | L | 100 | 100 |
| Weight of the crane | Kg | 1200 | 1300 |
| Operating pressure | Mpa | 23/25 | 23/26 |
| Operating mode | Floor operated | Floor operated |
