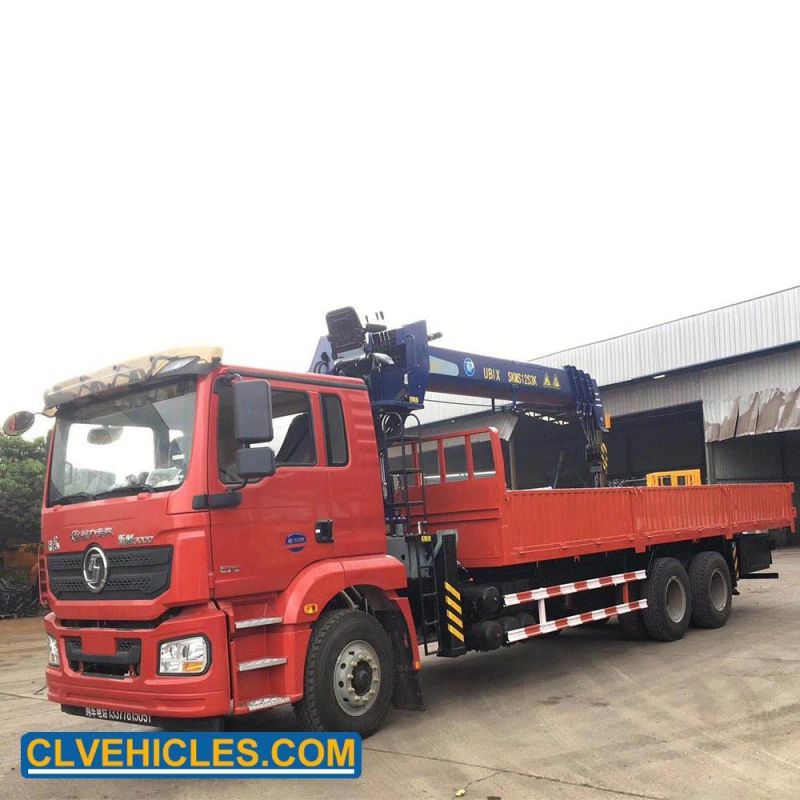

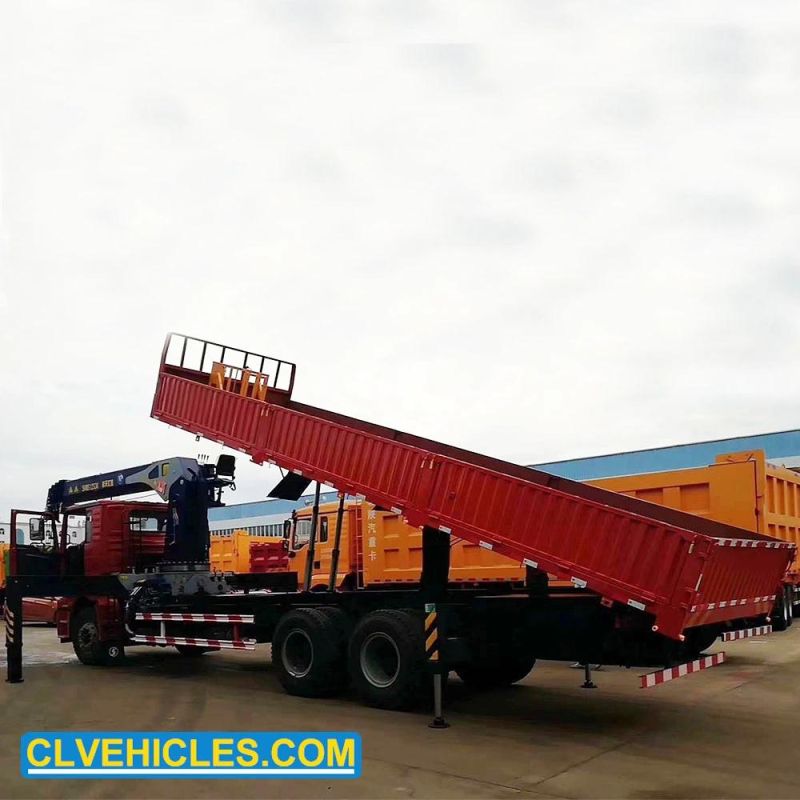

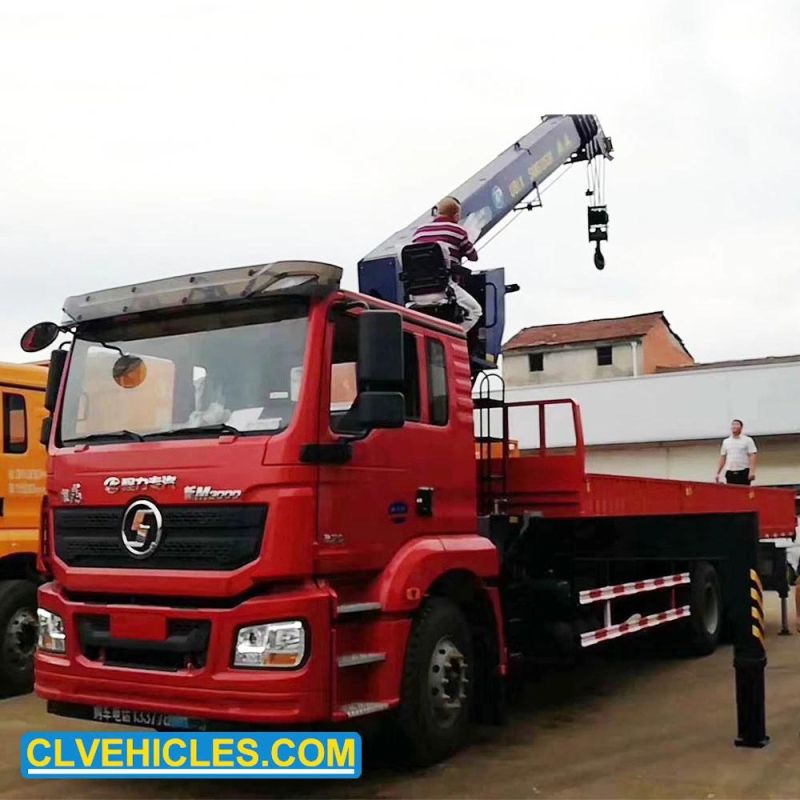

Telescopic Boom Truck Crane 20ton Truck Mounted Crane Truck
Chengli Special Automobile Factory- Certification:GS, RoHS, CE, ISO9001
- Condition:New
- Maximum Lifting Height:20-25m
- Maximum Lifting Weight:>16t
- Shaft Number:4
- Crane Jib:Three-Arm
Base Info
- Model NO.:CLW
- Type:Straight Arm
- Transport Package:Nude
- Specification:10280X2190X2270
- Trademark:CLW
- Origin:China
- HS Code:8701909000
- Production Capacity:500units One Month
Description
Plate spring piece number8/6+5 Approach/departure angle 24/16 Front/real overhang 1015/1500 Tire size 12R22.5 Tire qty 10
Upper Equipment
Upper Equipment
Items | Unit | SPS8000A | SPS8001B |
Rated lifting weight | Kg | 3200 | 3200 |
rated lifting moment | T.m | 8 | 8 |
Max outreach | m | 7.8 | 10.2 |
Max lifting height | m | 9.8 | 12.5 |
Length of the basic boom | m | 3.4 | 3.5 |
Length of the fully extended boom | m | 8 | 10.4 |
Numbers of the boom | / | 3 | 4 |
Profile method of the basic boom | / | Hexagon | Hexagon |
Range of the boom lifting angle | . | 0-75 | 0-75 |
Slewing angle | Full circle | Full circle | |
Outrigger span | mm | 4400 | 4400 |
Recommended volume for the system | L/min | 35 | 35 |
Recommended oil tank volume | L | 100 | 100 |
Weight of the crane | Kg | 1200 | 1300 |
Operating pressure | Mpa | 23/25 | 23/26 |
Operating mode | Floor operated | Floor operated |
