• Model NO.：ZCC1100H
• Traveling Speed：0.78,0.31 Km,H
• Main Boom Angle：30-82.5
• Fixed Jib Angle：10,30
• Transport Package：Comply with Export Packaging Requirements for Min
• Specification：7160*3360*3260mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：84262000
• Production Capacity：100 Units Per Month

Overview Product Description



EFFICIENT, QUICK AND SAFETY

The mechanism operating speed up 20%, and the speed of each mechanism don't slow down

while operating 2 functions simultaneously;

Time of erecting the whole crane is less than 6 hours;

Omni-directional real-time LMI and monitoring system, to ensure safety operation.



CONVENIENT, COMFORTABLE AND INTELLIGENCE

The max. Single transport weight is 30.5t, transport width is 3m;

Omni-directional vehicle information platform, real time monitoring equipment operation,

The IOT intelligent interaction system make the mobile service come true.

Full view cabin, buttons and switches are all within reach,

all-around air conditioner form a comfortable operating space.

Product Parameters



Max. lifting capacity / radiusUS Tons/ft(mt/m)110/10'6"(100/3.2)Max. lifting capacity of fixed jibUS Tons (mt)8.8(8)Main boom lengthft(m)42'8"-219'10"(13-67)Fixed jib lengthft(m)180'5"+59'(55+18)Main boom angle.30-82.5Fixed jib angle.10,30Rope speed of hoisting winches 1 and 2With free-fall functionft/min(m/min)325(99)Without free-fall functionft/min(m/min)393(120)Single rope speed of derricking winchft/min(m/min)190(58)Max./rated single rope force of hoisting winches 1 and 2With free-fall functionLbs(mt)44100/29988(20/13.6)Without free-fall functionLbs(mt)31311/27342(14.2/12.4)Slewing speedr/min

0-2.3

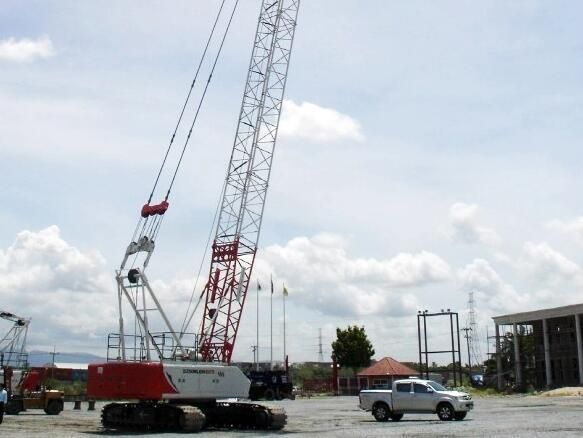

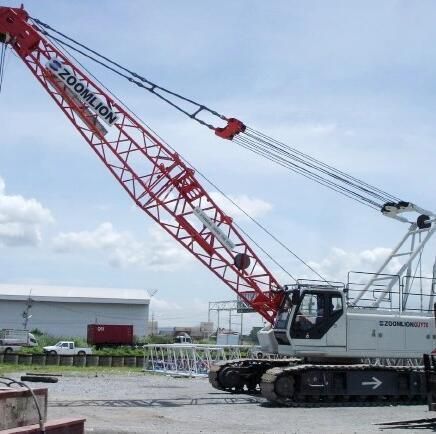

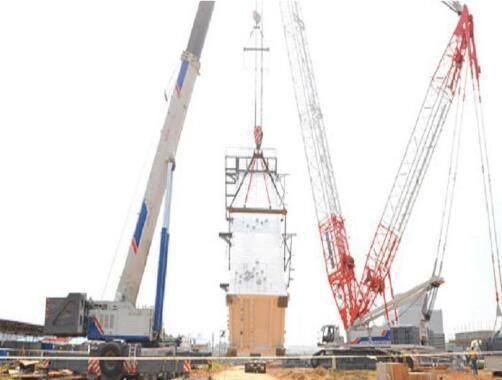

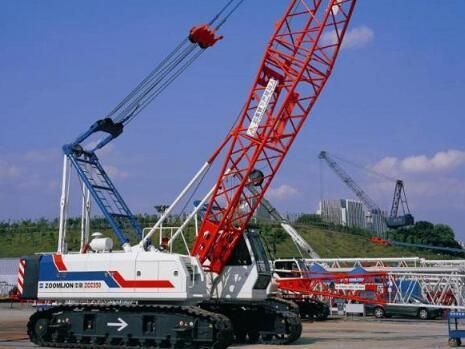

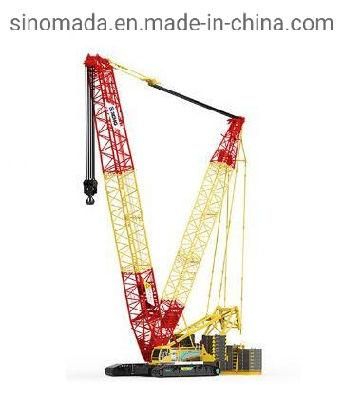

Traveling speed(high/low speed)mph(km/h)0.78/0.31(1.25/0.5)Gradeability%(°)30%(16.7°Max.transport weight of basic machineLbs(mt)99887(45.3)Deadweight(with basic boom)Lbs(mt)189630(86)CounterweightLbs(mt)61740(28)22050(10)Slewing radiusft(m)15'5"(4.7)Overall dimensions(L × W × H)m45'3"×11'2"×11'(13.8×3.4×3.35)Ground clearance of the undercarriageft(mm)17"(437)EngineType QSL9-280Exhaust standard According to U.S.EPA Tier 3Distance between track center×crawler contact length×crawler widthft(m)8'2"×17'10"×2'7"(2.5×5.44×0.8)13'9"×17'10"×2'7"(4.2×5.44×0.8)Detailed Photos
