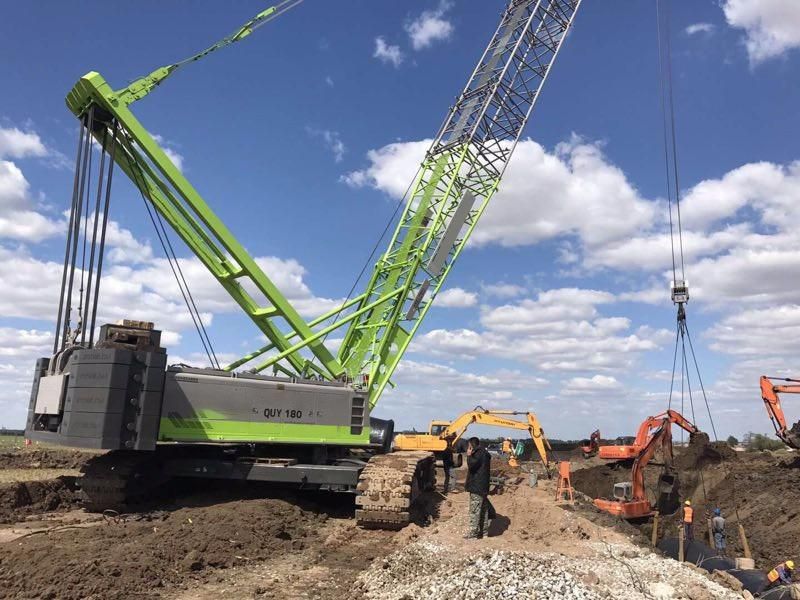

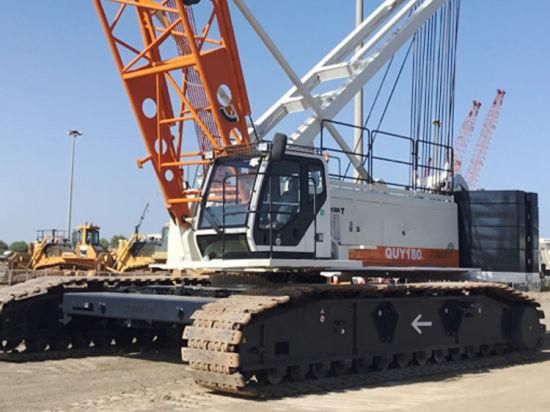

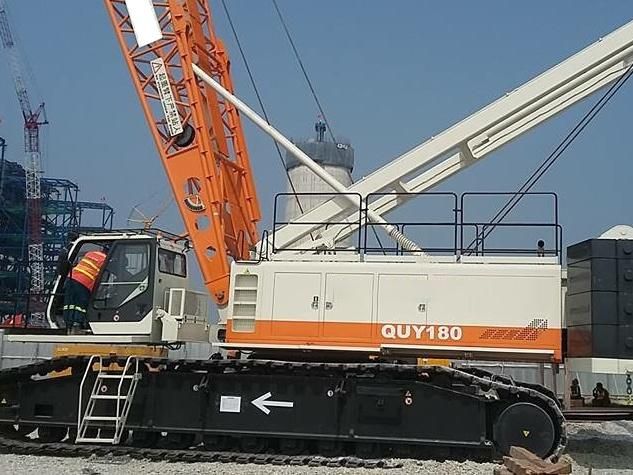

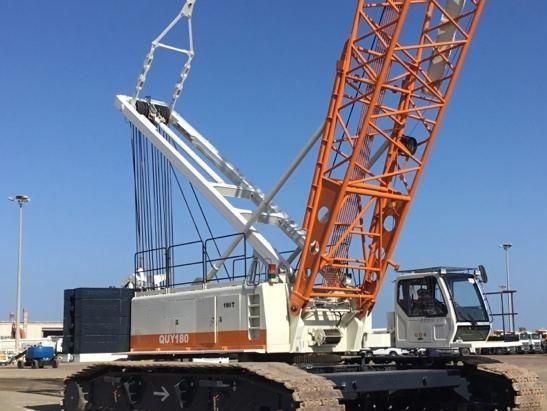

Zoomlion Brand New Hydraulic Crawler Crane 180 Ton (QUY180)
Sinomada Heavy Industry (Changsha) Co., Ltd.- Max. Lifting Height：83m
- Rated Loading Capacity：180t
- Certification：ISO9001, CE
- Condition：New
- Warranty：1 Year
- Slewing Speed：1.4 Rpm
Base Info
- Model NO.：QUY180
- Traveling Speed：1.2 Km,H
- Gradeability：30%
- Transport Package：Roro,Container,Nude
- Specification：10600*7100*3650 mm
- Trademark：Zoomlion
- Origin：China
- HS Code：8426491000
- Production Capacity：50units,Month
Description
Overview
Product ParametersMaximum lifting capacity × radius t × m 180 × 5 Deadweight of crane with basic boom t 167 Length of main boom Heavy duty boom m 20-83 Light duty boom m 86-92 Length of fixed jib m 13-31 Maximum lifting capacity with fixed jib t 22 Fixed jib angle . 10,30 Maximum length of main boom + fixed jib m 71+31 Length of main boom 47-71 Length of luffing jib m 24-51 Maximum lifting capacity with luffing jib t 38 Working angle of main boom in crane operation with luffing jib . 85,75,65 Maximum length of main boom + luffing jib m 56+51 Length of main boom 38- 56 Single rope speed of winches Main winch(hoisting winch 1) m/min 110 Sixth layer of drum Auxiliary Winch(hosting winch 2)) m/min 110 Sixth layer of drum derricking winch m/min 30 Fifth layer of drum Slewing speed rpm 1.4 Traveling speed km/h 1.2 Gradeability % 30 Ground pressure MPa 0.1 Overall dimensions(L × W × H) m 10.6×7.1×3.65 Without A-frame and boom frame Engine Rated power/rotational speed Kw/rpm 227/2000 QSL9-C305 Max. output torque/rotational speed Nm/rpm 1505/1400 Exhaust emission standard U.S.EPA Tier 3 and EU Stage 3 Distance between track center × crawler contact length × crawler shoe width mm 6000×7750×1100
