• Type：Folding
• Max. Lifting Cap.(T/M)：50,3
• Max.Lifting Moment：1825 Kn.M
• Engine Rated Output：276,2200 Kw,R
• Max. Lifting Height of Main Boom：42 M
• Total Weight in Travel：42000 Kg
• Dimension (L*W*H)：13770*2800*3570
• Base Boom：11.3 M
• Fully Extended Boom：42.7 M
• Fully Extended Boom+Jib：57.7 M
• Boom Luffing Time：88 S
• Max. Travel Speed：80 Km,H
• Transport Package：Roro Ship
• Specification：29400kg
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705102100
• Production Capacity：300set,Year

Basic Info.

Type Folding Max. Lifting Cap.(T/M) 50/3 Max.Lifting Moment 1825 Kn.M Engine Rated Output 276/2200 Kw/R Max. Lifting Height of Main Boom 42 M Total Weight in Travel 42000 Kg Dimension (L*W*H) 13770*2800*3570 Base Boom 11.3 M Fully Extended Boom 42.7 M Fully Extended Boom+Jib 57.7 M Boom Luffing Time 88 S Max. Travel Speed 80 Km/H Transport Package Roro Ship Specification 29400kg Trademark Super-above Origin Jiangsu, China HS Code 8705102100 Production Capacity 300set/Year

Product Description

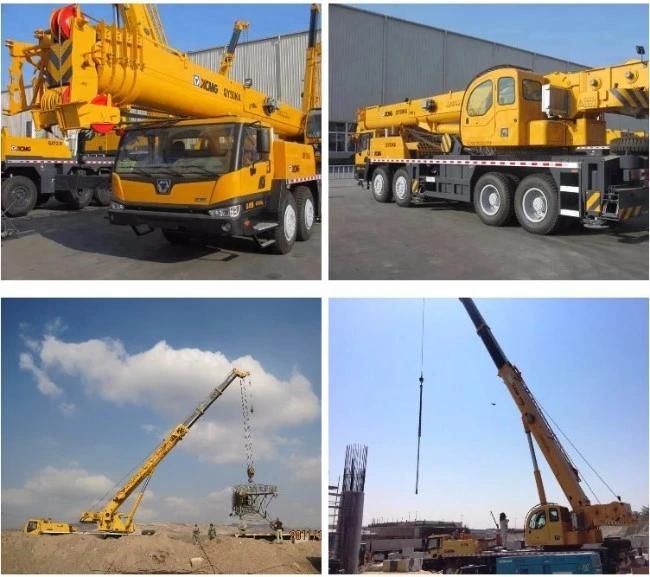

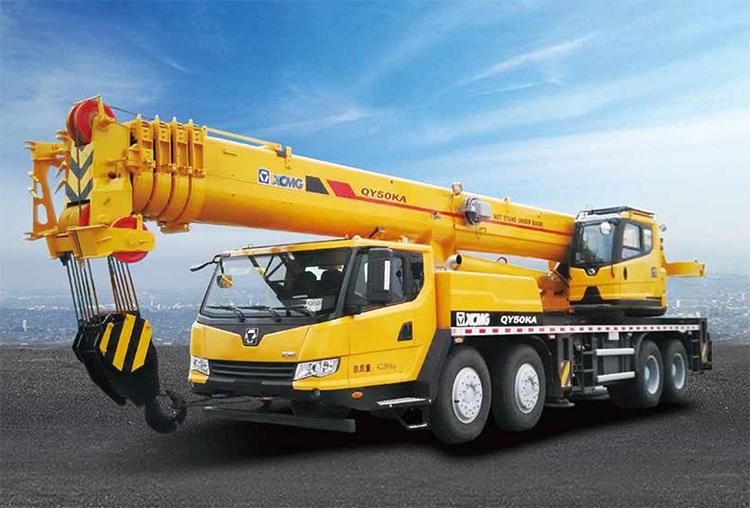

Specifications of 50 tons Hydraulic Truck Crane
• The innovative jib system adopts an embedded block, plug-in boom head and international advanced U section jib,
which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom
caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing
systems.
• Adopt the new hydraulic motor with a big torque starting point, making the secondary lifting safer.
• The torque limiter adopts a colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is
ahead of the industry.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure high quality.


PARAMETERS

Dimension	Unit	QY50K-II
Overall length	mm	13750
Overall width	mm	2800
Overall height	mm	3520
Weight
Total weight in travel	kg	41000
Front axle load	kg	15000
Rear-axle load	kg	26000
Power
Engine model		WD615.334(domestic III)
Engine rated power	kW/(r/min)	247/2200
Engine rated torque	N.m/(r/min)	1350/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	291
Approach angle	°	17
Departure angle	°	11
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	50
Min. rated working radius	m	3
Turning radius at turntable tail	m	3.482
Max. lifting torque	kN.m	1764
Base boom	m	11.3
Fully extended boom	m	42.7
Fully extended boom+ jib	m	57.7
Longitudinal outrigger span	m	5.91
Lateral outrigger span	m	6.9
Working speed
Boom luffing time	s	88
Boom full extension time	s	180
Max. swing speed	r/min	≥2.0
