• Type：Folding
• Max. Lifting Cap.(T/M)：200
• Max. Load Moment：6350
• Engine Rated Output：380,1800 Kw,R
• Chassis Length：14240 mm
• Total Weight in Travel：72000 Kg
• Drive Type：12*6
• Steering Type：12*10
• Fully Extended Boom+Jib：59.5 M
• Boom Luffing Time：60 S
• Max. Travel Speed：71 Km,H
• Max. Grade Ability：55 %
• Boom Length：13.8 M
• Fully Extended Boom Length：61m
• Outrigger Type：Double H
• Base Boom Lifting Height：14.5 M
• Transport Package：Roro Ship
• Specification：72000kg
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8705109200
• Production Capacity：300set,Year

Basic Info.

Type Folding Max. Lifting Cap.(T/M) 200 Max. Load Moment 6350 Engine Rated Output 380/1800 Kw/R Chassis Length 14240 mm Total Weight in Travel 72000 Kg Drive Type 12*6 Steering Type 12*10 Fully Extended Boom+Jib 59.5 M Boom Luffing Time 60 S Max. Travel Speed 71 Km/H Max. Grade Ability 55 % Boom Length 13.8 M Fully Extended Boom Length 61m Outrigger Type Double H Base Boom Lifting Height 14.5 M Transport Package Roro Ship Specification 72000kg Trademark Super-above Origin Jiangsu, China HS Code 8705109200 Production Capacity 300set/Year

Product Description

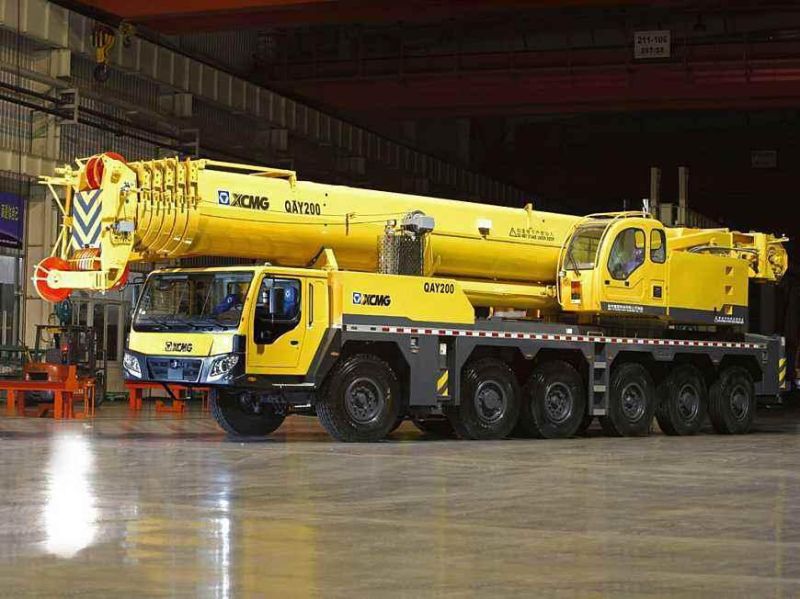

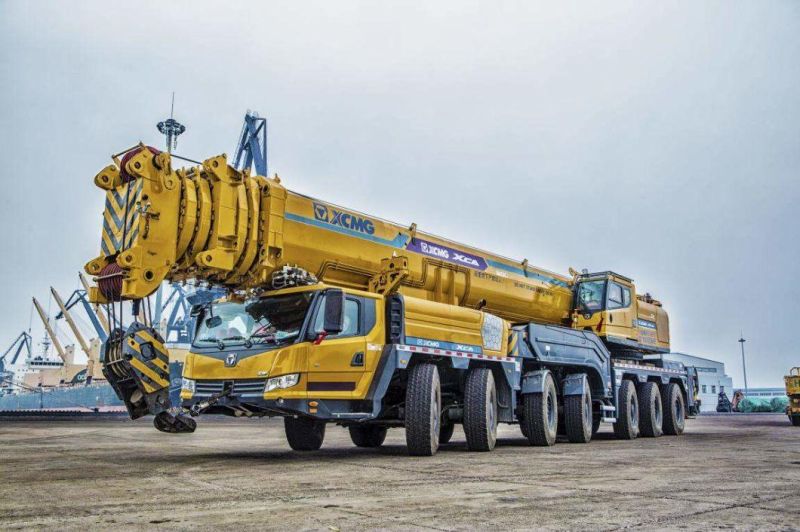

Specifications of 200 tons Hydraulic All Terrain Truck Crane
The mature application of limit load in accordance with the power makes the machine energy efficient, low noise,
environmentally friendly, and safe. The variable-rigidity air and hydraulic suspension technique make the machine
comfortable to drive and have good stability and longitudinal trafficability.
The additional equipment of the machine includes a super-lift device, luffing jib, and fixed lengthening jib, which
increases the lifting performance and working scope in an unimaginable proportion. The working radius and lifting
height are respectively up to 86m and 116m.



PARAMETERS

No.	Item	Unit	Parameter
1	Total mass in travel state	kg	72000
2	Overall length for travel	mm	16200
3	Overall width for travel	mm	≤3000
4	Overall height for travel	mm	≤4000
5	Chassis length	mm	14240
6	Max. travel speed	km/h	71
7	Min. stable travel speed	km/h	2
8	Drive type		12×6
9	Steering type		12×10
10	Approach angle	°	≥25
11	Departure angle	°	≥17.8 (24)
12	Max. grade-ability	%	≥55
13	Carrier engine rated output	kw/rpm	380/1800
14	Superstructure engine rated output	kw/rpm	162/2100
15	Outrigger type		Double H
16	Outrigger span(longitudinal×lateral )	mm	9625×8700
17	Min. turning diameter	mm	≤23000
18	Max. rated lifting capacity	kg	200000
19	Jib max. lifting capacity	kg	12000
20	Min. rated working radius	m	3
21	Max. load moment	kN .m	6350(9m×72t)
22	Boom elevation	°	0~82
23	Boom length	m	13.8
24	Fully extended boom length	m	61
25	Base boom lifting height	m	14.5
26	Fully extended boom lifting height	m	59.5
27	Jib length	m	11.55, 20
28	Swing speed	r/min	0~2
29	Single rope hoist speed	m/min	0~120
