Heavy Duty Hoist Mobile 70 T Truck Crane
Shanghai Super-Above Industry Holdings Co., Ltd.- Certification:ISO9001
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
- Shaft Number:2
- Crane Jib:Four-Arm
Base Info
- Type:Folding
- Max. Lifting Cap.(T/M):70
- Max.Lifting Moment:2303 Kn.M
- Engine Rated Output:276,2200 Kw,R
- Max. Lifting Height of Main Boom:44 M
- Total Weight in Travel:43000 Kg
- Dimension (L*W*H):13930*2800*3630
- Base Boom:11.6 M
- Fully Extended Boom:44.5 M
- Fully Extended Boom+Jib:59.5 M
- Boom Luffing Time:60 S
- Max. Travel Speed:80 Km,H
- Max. Grade Ability:40 %
- Longitudinal Outrigger Span:6.1 M
- Lateral Outrigger Span:7.3 M
- Min. Rated Working Radius:3000 M
- Transport Package:Roro Ship
- Specification:43000kg
- Trademark:Super-above
- Origin:Jiangsu, China
- HS Code:8705102100
- Production Capacity:300set,Year
Description
Basic Info.
Type Folding Max. Lifting Cap.(T/M) 70 Max.Lifting Moment 2303 Kn.M Engine Rated Output 276/2200 Kw/R Max. Lifting Height of Main Boom 44 M Total Weight in Travel 43000 Kg Dimension (L*W*H) 13930*2800*3630 Base Boom 11.6 M Fully Extended Boom 44.5 M Fully Extended Boom+Jib 59.5 M Boom Luffing Time 60 S Max. Travel Speed 80 Km/H Max. Grade Ability 40 % Longitudinal Outrigger Span 6.1 M Lateral Outrigger Span 7.3 M Min. Rated Working Radius 3000 M Transport Package Roro Ship Specification 43000kg Trademark Super-above Origin Jiangsu, China HS Code 8705102100 Production Capacity 300set/YearProduct Description

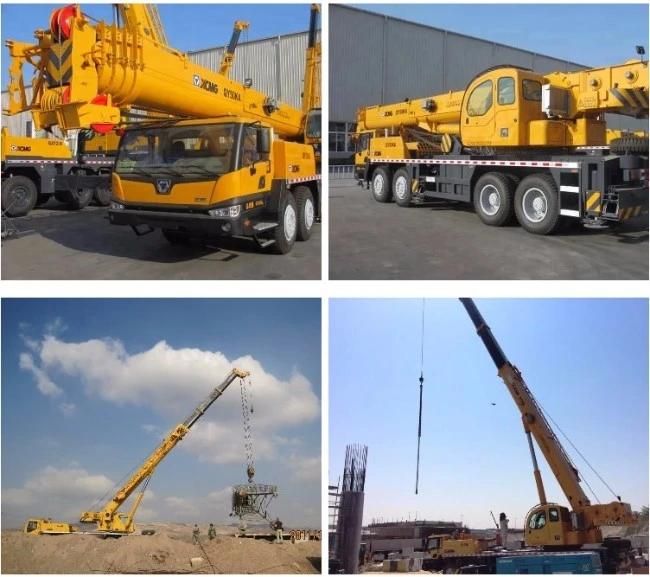

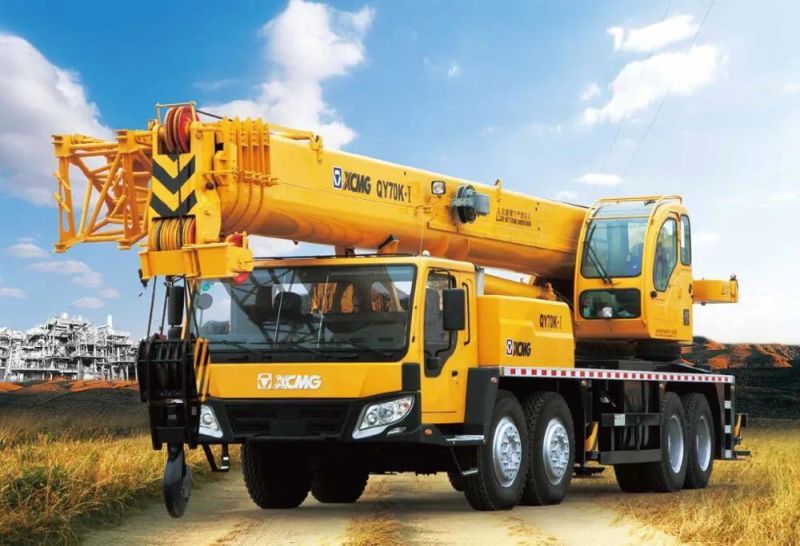

Specifications of 70 tons Hydraulic Truck Crane
• The innovative jib system adopts an embedded block, plug-in boom head and international advanced U section jib,
which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom
caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing
systems.
• Adopt the new hydraulic motor with a big torque starting point, making the secondary lifting safer.
• The torque limiter adopts a colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is
ahead of the industry.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure high quality.
PARAMETERS
Dimension | Unit | QY70K-I |
Overall length | mm | 13930 |
Overall width | mm | 2800 |
Overall height | mm | 3575 |
Weight | ||
Total weight in travel | kg | 43000(without 1t vice counterweight) |
Front axle load | kg | 17000 |
Rear axle load | kg | 26000 |
Power | ||
Engine model | WD615.338(domestic III) | |
Engine rated power | kW/(r/min) | 276/2200 |
Engine rated torque | N.m/(r/min) | 1500/1400 |
Travel | ||
Max. travel speed | km/h | 80 |
Min. turning diameter | m | 24 |
Min. ground clearance | mm | 327 |
Approach angle | ° | 19 |
Departure angle | ° | 13 |
Max. grade ability | % | 40 |
Fuel consumption for 100km | L | 45 |
Main performance | ||
Max. rated total lifting capacity | t | 70 |
Min. rated working radius | m | 3000 |
Turning radius at turntable tail | m | 3.55 |
Max. lifting torque | kN.m | 2303 |
Base boom | m | 11.6 |
Fully extended boom | m | 44.5 |
Fully extended boom+ jib | m | 59.5 |
Longitudinal outrigger span | m | 6.1 |
Lateral outrigger span | m | 7.3 |
Working speed | ||
Boom luffing time | s | 60 |
Boom full extension time | s | ≤150 |
Max. swing speed | r/min | ≥2.0 |
