• Model NO.：RT60
• Type：Folding
• Max. Gradeability：75%
• Front Axle Load：25220kg
• Swing Speed：0-2r,Min
• Wheelbase：3950mm
• Transport Package：Roro,Container,Nude
• Specification：13662*3300*3750mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：84262000
• Production Capacity：100 Units Per Month

ItemUnitValueWork    performanceMax.    rated lift capacity × work radiuskg.m60000×2.8Max.    load moment of basic jibkN.m1991Max.    load moment of max. length main boomkN.m1166Max.    lifting height of  max. length main    boom    m45.4Max.    lifting height of jibm62.2DimensionsOverall    dimensions(L×W×H)mm13662×3300×3750Distance    between outriggers (Longitudinal × transversal)mm6900×6900Main    boom length (Completely retracted - completely extended)mm11400    - 43000Jib    length (Jib section 1,jib sections 1+2)mm10000-17000Boom    angle°-3    - 78Swing    range°360°unlimited    swing(Full range)Work    SpeedsMax.    hoist rope speed (Main winch)m/min150Min.    boom telescoping out times140Min.    boom telescoping in times120Min.    boom derrick up times60Min.    boom derrick down times65Swing    speedr/min0-2Hydraulic    systemRated    working pressureMPa28Rated    working flowL/min400Hydraulic    oil tank capacityL730MassComplete    vehicle kerb masskg44260Front    axle loadkg25220Rear    axle loadkg19040DrivingMax.    driving speed (Forwarsd / backwards)km/h39Wheelbasemm3950Treads    (Front / rear)mm2605Max.    gradeability%75

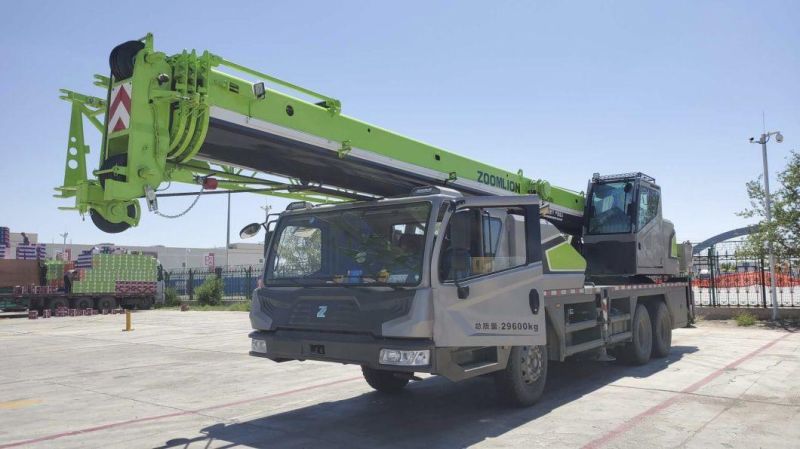

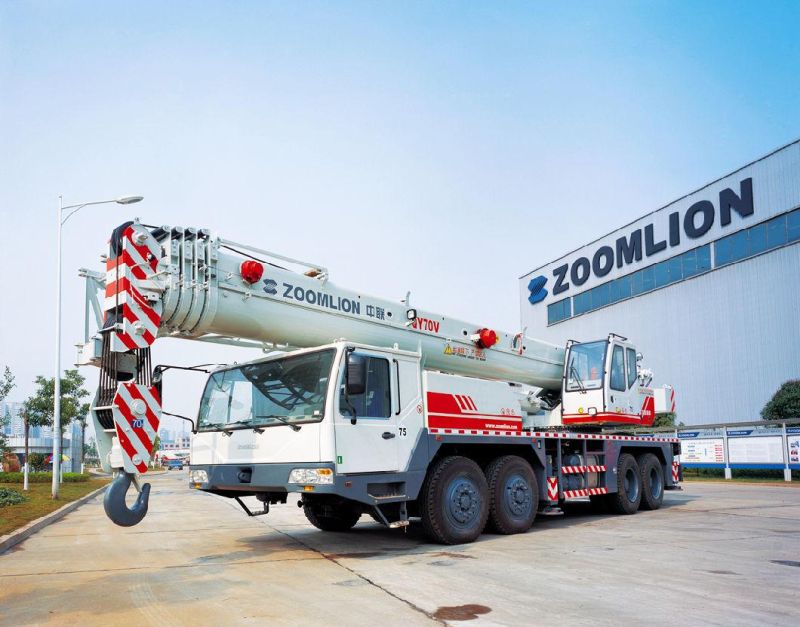

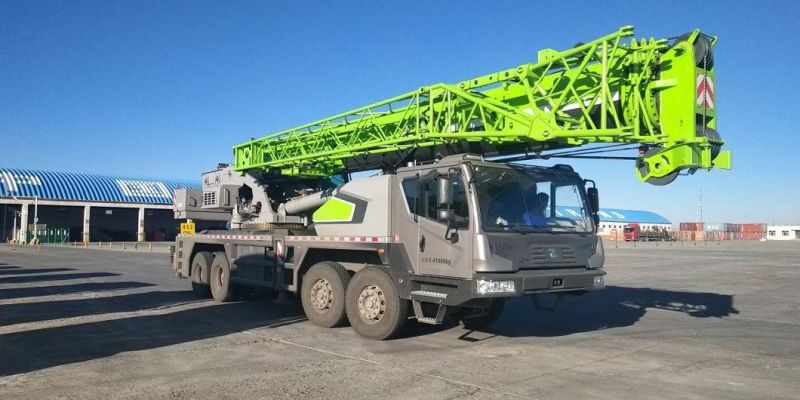

Photos
