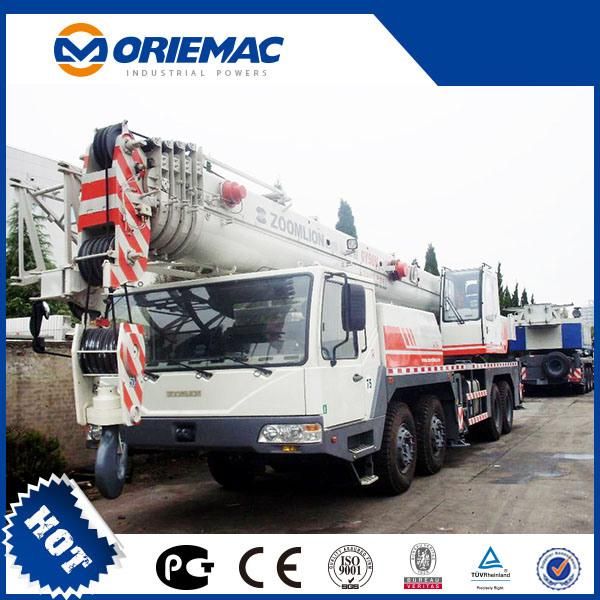

Zoomlion 70ton Hydraulic Truck Crane
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：CE, ISO9001: 2000
- Condition：New
- Type：Single Girder Crane
- Max. Rated Lifting Weight：70ton
- Max. Lifting Height of Basic Boom：11.1m
- Max. Lifting Height of Fly Jib：60.2m
Base Info
- Model NO.：QY70V532 truck crane
- Outline Dimensions：14100×2750×3750mm
- Main Girder Form：Single Girder
- Power Source：Hydraulic
- Moving Type：Wheel
- Installation：Assembled
- Transport Package：Nude Packing
- Specification：CE, ISO9001
- Trademark：ZOOMLION
- Origin：Jiangsu, China
- HS Code：87051092
- Production Capacity：100 Set,Sets , Month
Description
Working performance1 Max. rated lifting weight × working radius kg.m 70000×3.0 2 Max. lifting torque of basic boom kN.m 2352 3 Max.lifting torque of longest main boom kN.m 1098 4 Max. lifting height of longest main boom m 44.2 5 Max. lifting height of jib m 60.2 Dimensions 6 Outline dimensions (L×W×H) mm 14100×2750×3750 7 Distance between outriggers (longitudinal × transversal) mm 6000×7600 8 Main boom length (completely retracted - completely extended) m 11.6~44 9 Jib length m 9.516 10 Main boom angle of elevation ° -2~80 11 Swing range 360°continuously Working speed 12 Max.speed of single rope on the drum of main winch m/min 135 13 Boom extension time s 107 14 Boom derricking up time s 57 15 Swing speed r/min 0~1.8 Mass 16 Complete vehicle kerb mass kg 44870 17 Front axle load kg 19000 18 Rear axle load kg 26000 Traveling 19 Max. traveling speed km/h 75 20 Max. gradeability % 37 21 Minimum turn radius m 12 22 Min. ground clearance mm 280
