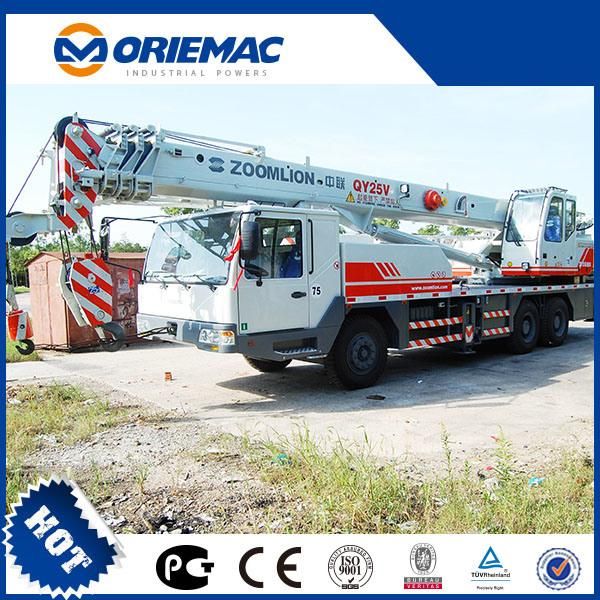

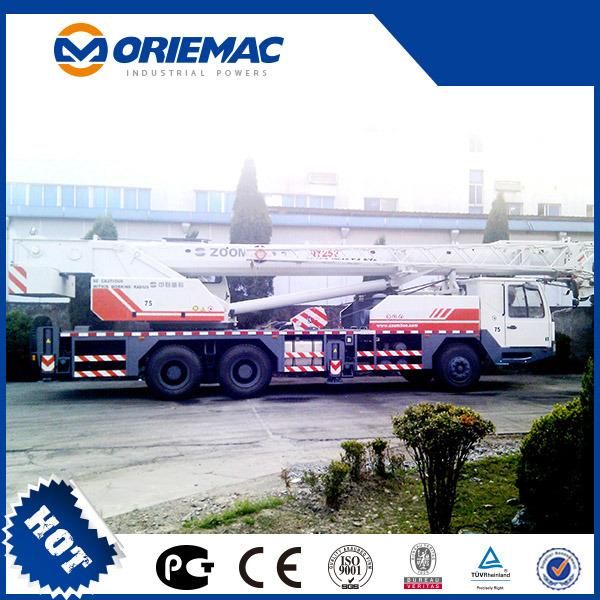

• Model NO.：QY25V532
• Max. Lifting Height of Fly Jib：47m
• Outline Dimensions：12700×2500×3450mm
• Tower Crane Type：Under Slewing Cranes
• Sling Type：Wire Rope
• Main Girder Form：Single Girder
• Power Source：Hydraulic
• Moving Type：Wheel
• Installation：Assembled
• Transport Package：Nude Packing
• Specification：CE, ISO9001
• Trademark：ZOOMLION
• Origin：Jiangsu, China
• HS Code：87051092
• Production Capacity：100 Set,Sets , Month

Working performance1Max. rated lifting weight × working radiuskg.m25000×3.02Max. lifting torque of basic boomkN.m9803Max.lifting torque of longest main boomkN.m4944Max. lifting height of longest main boomm395Max. lifting height of jibm47Dimensions6Outline dimensions (L×W×H)mm12700×2500×34507Distance between outriggers (longitudinal × transversal)mm5360×61008Main boom length (completely retracted - completely extended)m10.4~39.29Jib lengthm810Main boom angle of elevation°-2~8011Swing range 360°continuouslyWorking speed12Max.speed of single rope on the drum of main winchm/min12013Boom extension times8014Boom derricking up times4015Swing speedr/min0~2.2Mass16Complete vehicle kerb masskg3157017Front axle loadkg690018Rear axle loadkg24800Traveling19Max. traveling speedkm/h7820Max. gradeability%3721Min. turn radiusm1122Min. ground clearancemm220
