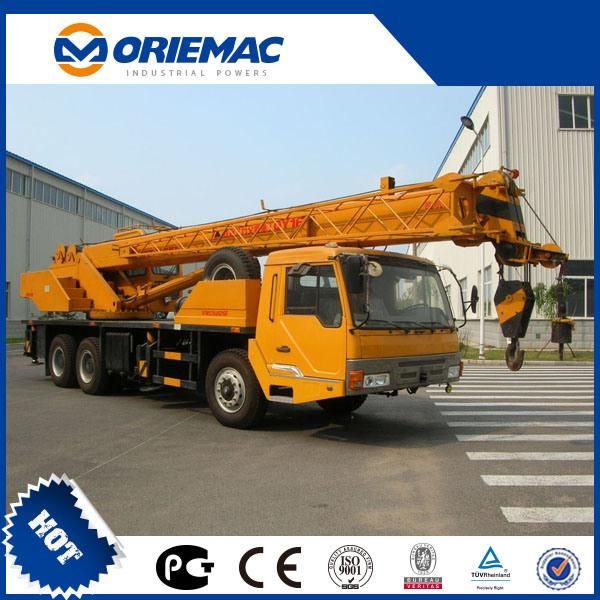

N. Traffic 12t Hydraulic Mobile Truck Crane
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：CE, ISO9001: 2000
- Condition：New
- Type：Small Crane
- Max. Rated Lifting Weight：12ton
- Max. Height of The Main Boom：22.65m
- Max. Height of The Basic Boom：9.6m
Base Info
- Model NO.：QY12G
- Max. Height of Boom and Jib：29.45m
- Rated Power/Rotate Speed：132,2500
- Sling Type：Wire Rope
- Power Source：Hydraulic
- Transport Package：Nude Packing
- Specification：CE, ISO9001
- Trademark：N. Traffic
- Origin：Liaoning, China
- HS Code：8428909090
- Production Capacity：500 Set,Sets , Month
Description
Items
Unit
Value
Working Performance Parameters
Max. Rated lifting weight
kg
10000
Max. Lifting force of the basic boom
kn.m
300
Max. Height of the basic boom
m
8.22
Max. Height of the main boom
m
19.54
Max. Height of the jib
m
25.4
Max. Speed of the single rope
m/min
120
Working Speed
Extension time of the lift boom
s
30
Lifting time of the lift boom
s
25
Turning speed
r/min
0 ~ 2.5
Traveling Parameters
Max. Traveling speed
km/h
74
Max. Grade ability
%
30
Min. Turning radius
m
8.2
Min. Ground clearance
m
0.265
The whole weight
kg
11070
Dimension Parameters
External dimension ( length×width×height )
mm
9142×2400×3380
Vertical span of outrigger
m
3.95
Horizontal span of outrigger
m
4.4
Length of main boom
m
7.7 ~ 19
Length of vice boom
m
6
Elevation of main boom
°
-1 ~ 80
Chassis
Model
_
CA5115JQZ
Engine model
_
XICHAI CA4DF3-13E3
Rated power/rotate speed
kw/ ( r/min )
101/2500
Max. Torque/rotate speed
n.m/ ( r/min )
450/1400
Axle base
mm
4050
