Hot Sale Crane Mobile Hydraulic Crane Telescopic Qy20b. 5
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Support
- Warranty：Support
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：QY20B. 5
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Transport Package：Nude Package
- Specification：12400*2500*3300mm
- Trademark：Top brand
- Origin：Jiangsu, China
- HS Code：84295900
- Production Capacity：10000 Units,Month
Description
Dimension
Unit
QY20B.5
Overall length
mm
12400
Overall width
mm
2500
Overall height
mm
3300
Weight
Total weight in travel
kg
26020
Front axle load
kg
6900
Rear axle load
kg
19120
Power
Engine model
SC8DK260Q3, WD615.327
Engine rated power
kW/(r/min)
192/2200 198/2200
Engine rated torque
N.m/(r/min)
1100/1400 1150/1400
Travel
Max. travel speed
km/h
75
Min. turning diameter
m
20
Min. ground clearance
mm
270
Approach angle
°
21
Departure angle
°
11
Max. grade ability
%
35
Fuel consumption for 100km
L
≈35
Main performance
Max. rated total lifting capacity
t
20
Min. rated working radius
mm
3000
Turning radius at turntable tail
m
3.385
Max. lifting torque
kN.m
860
Base boom
m
10.06
Fully extended boom
m
32.76
Fully extended boom+jib
m
42.12
Longitudinal outrigger span
m
4.97
Lateral outrigger span
m

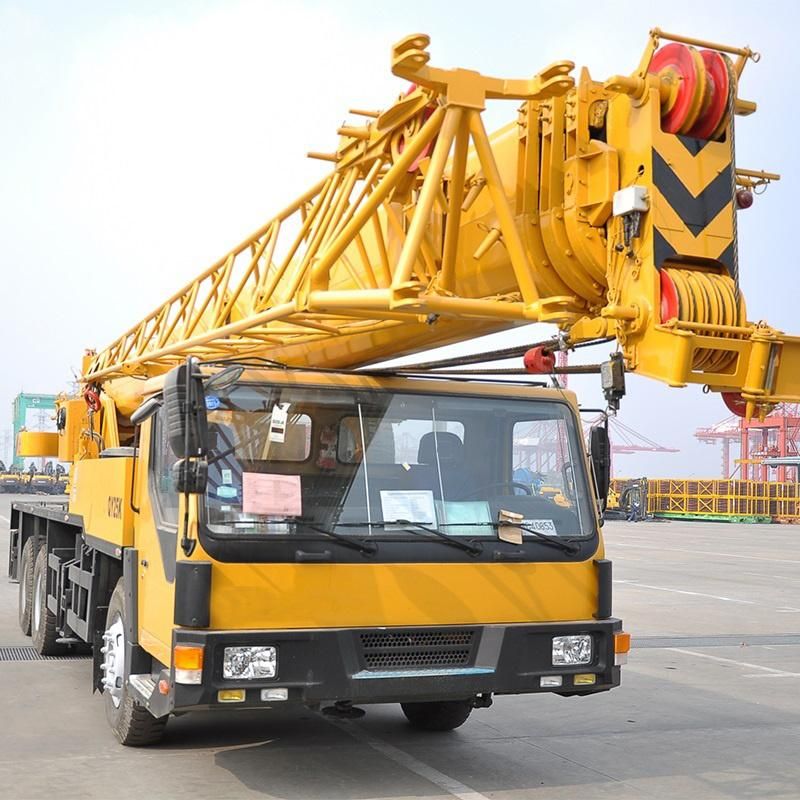

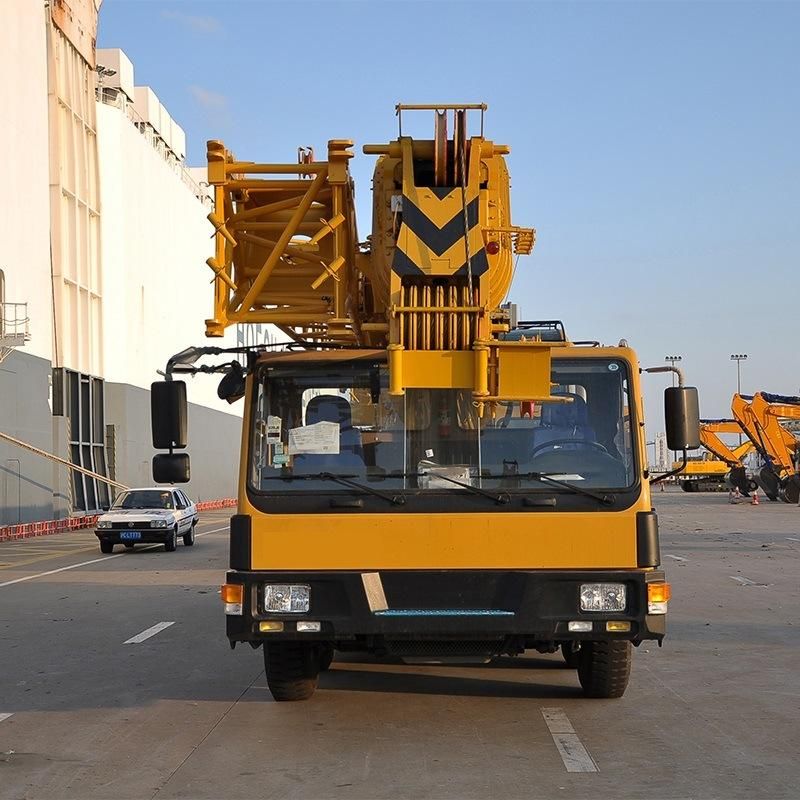

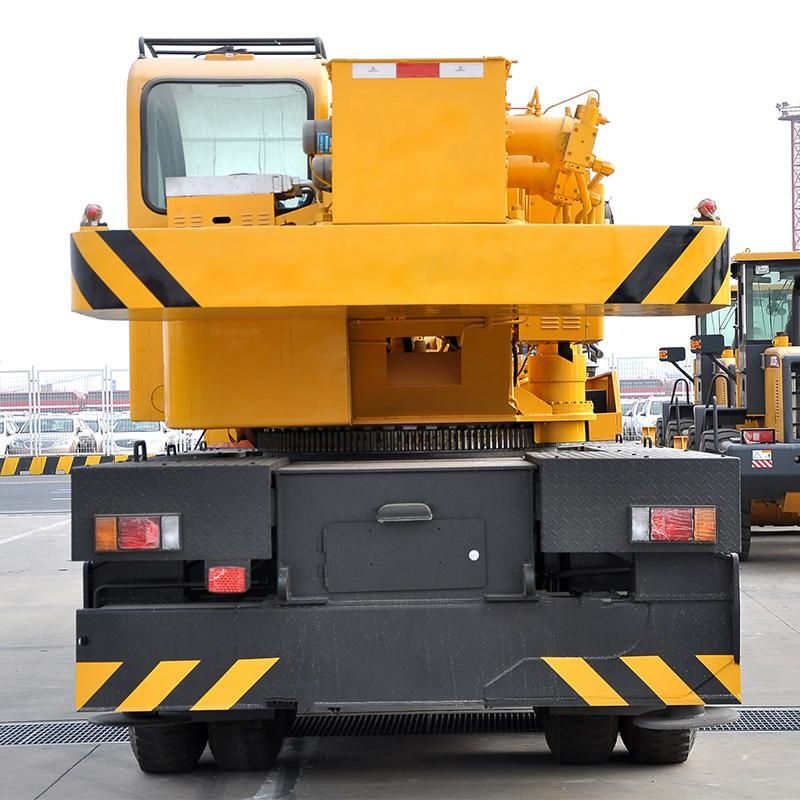

Product Show
