• Model NO.：XCA350
• Shaft Number：6
• Crane Jib：Six-Arm
• Type：Straight Arm
• Dimension (Lxwxh)：17654X3000X4000mm
• Overall Weight：60000kg
• Rated Power：205kw
• Transport Package：by Roro, Bulk Cargo or Container Transprot
• Specification：350 Ton
• Trademark：NEWINDU
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：50 Uint, Month

CategoryItemUnitParameter



Outline DimensionsOverall lengthmm17654Overall widthmm3000Overall heightmm4000

Wheel baseAxles 1 and 2mm1650Axles 2 and 3mm3100Axles 3 and 4mm1650Axles 4 and 5mm2440Axles 5 and 6mm1650Trackmm2590

WeightDead weight in travel configurationkg72000
Axle loadAxles 1 and 2kg12000Axles 3 and 4kg12000Axles 5 and 6kg12000


Power
Superstructure engineModel--OM906LA.E3A/1Rated powerkw/(r/min)205/2200Max. torqueN.m/(r/min)1100/1200~1600
Chassis engineModel--OM502LA.E3B/2Rated powerkw/(r/min)442.6/1800Max. torqueN.m/(r/min)2800/1300





Travel
Travel speedMax. travel speedkm/h≥80Min. stable travel speedkm/h≤2Min. turning diameterm≤23Min. ground clearancemm280Approach angle°16Departure angle°15Braking distance (at 30 km/h)m≤10Max. grade ability%≥57Oil consumption per 100 kml89.2

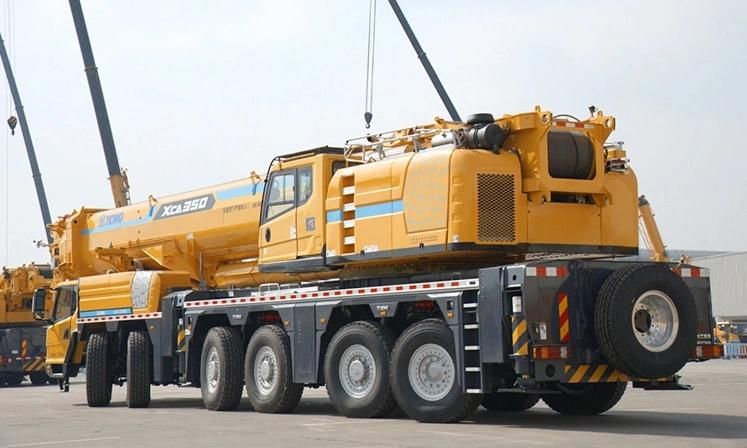

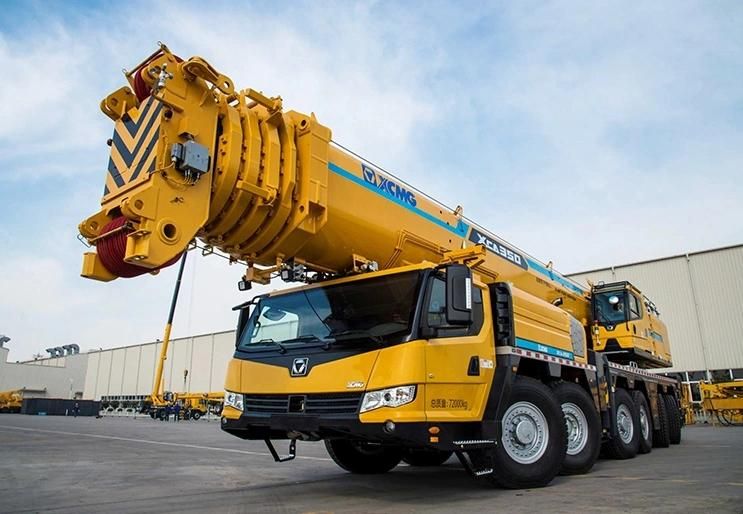

Pictures




Our company
Newindu Construction Engineering (Shanghai) Co., Ltd. is professional in construction machinery for nearly 12 years, exporting with good quality and low price, having excavator, truck crane, bulldozer, wheel loader, motor grader, drilling rig, dump truck, road roller, forklift, reach stacker, and also including the spare parts, etc.
