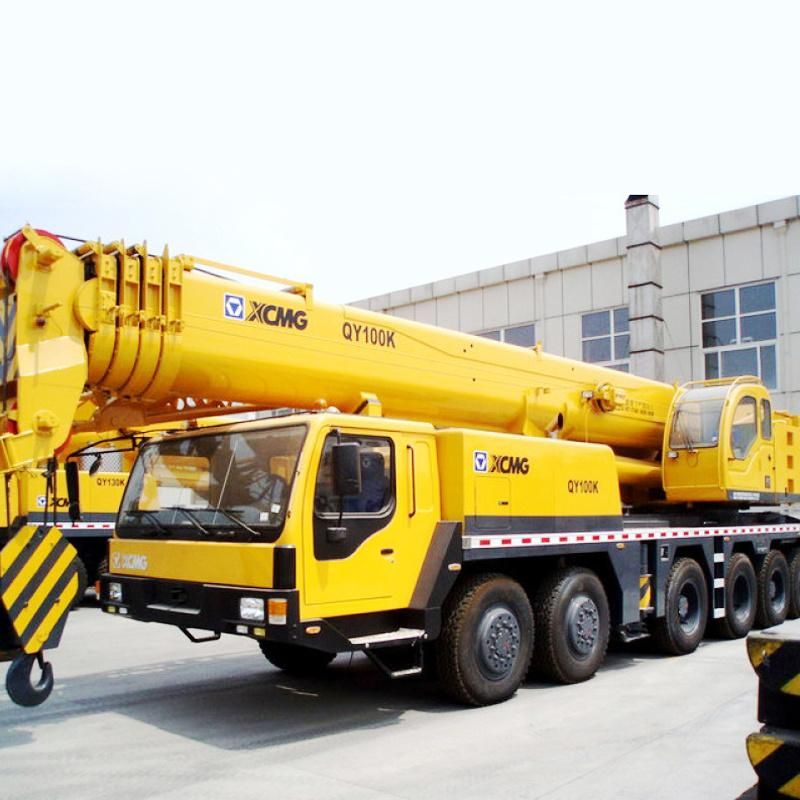

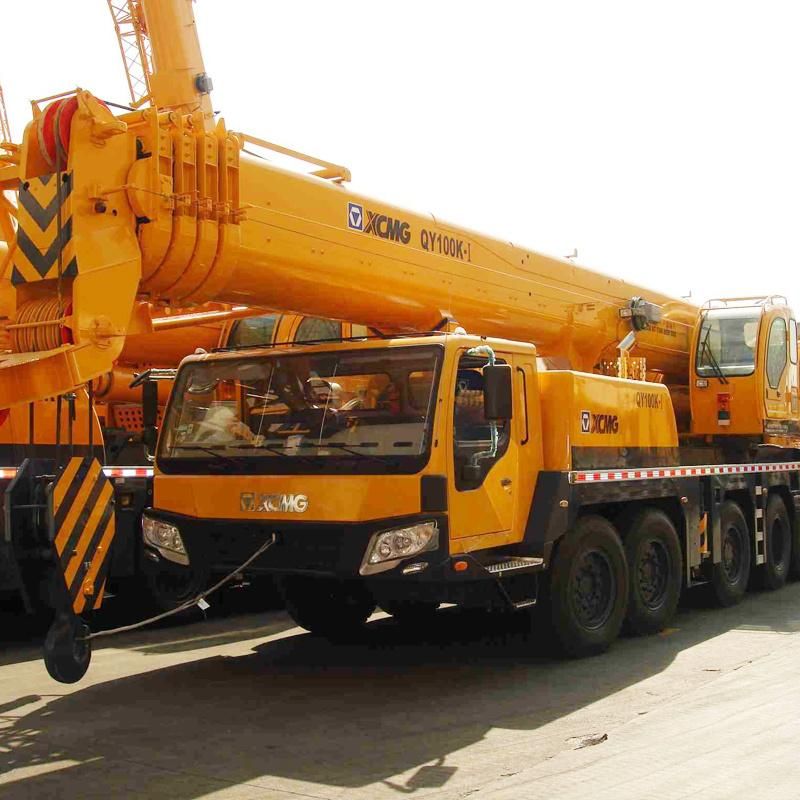

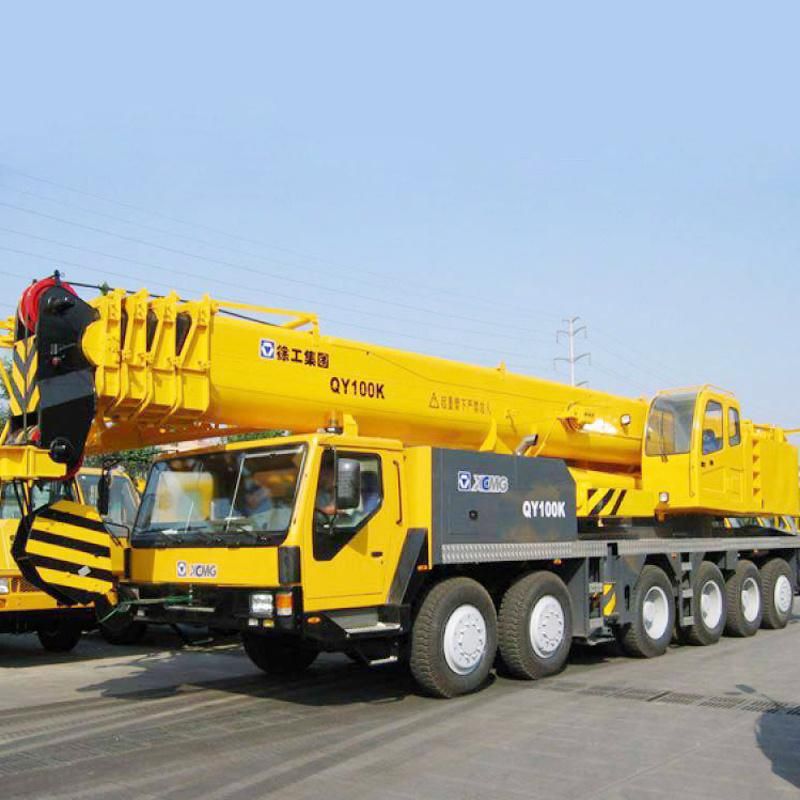

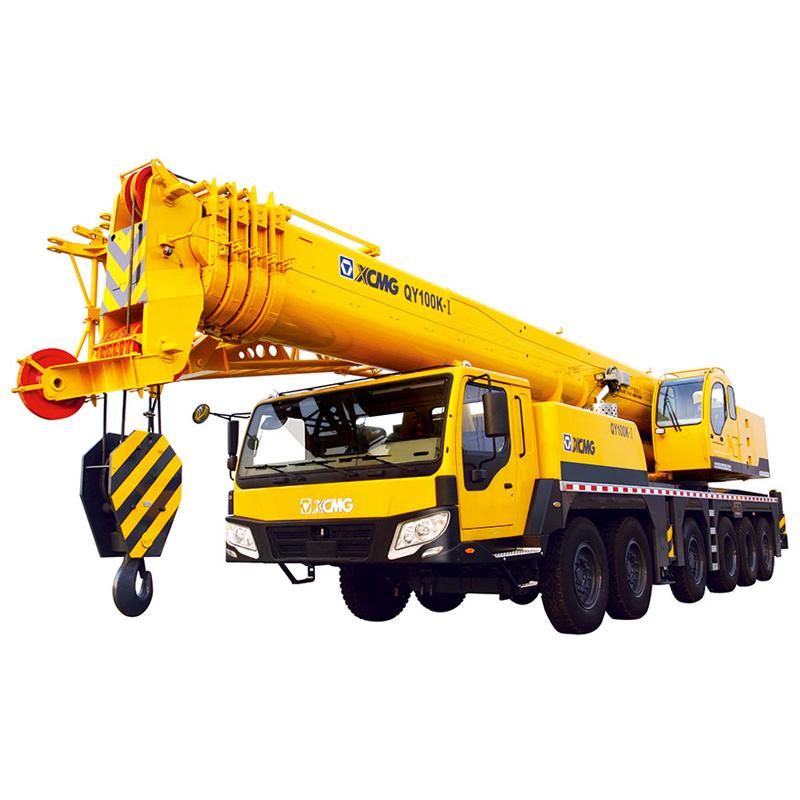

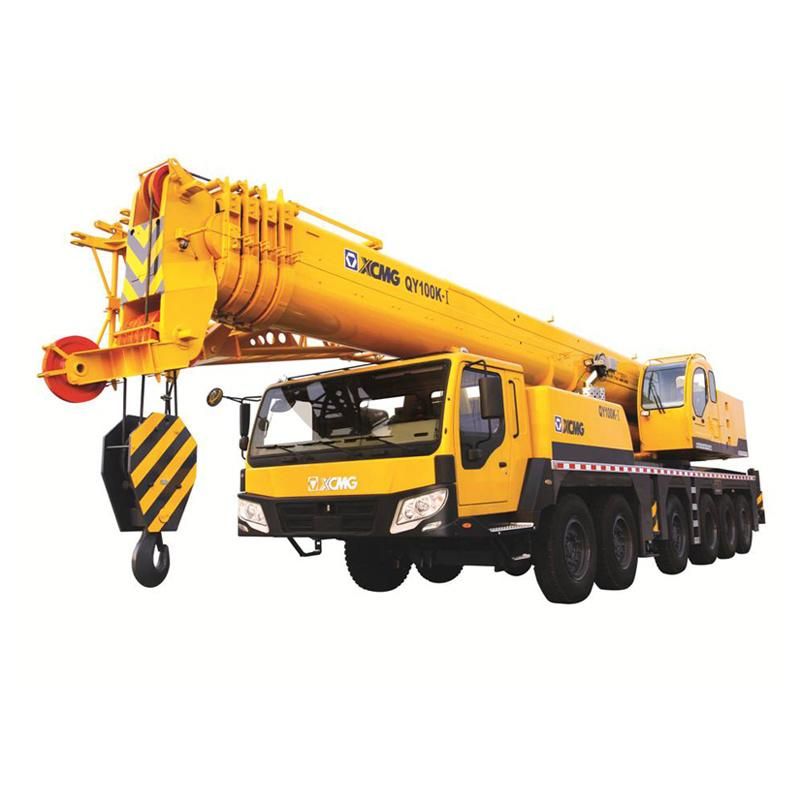

100ton Mobile Crane Qy100K Big Hydraulic Truck with Crane

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：3
  • Crane Jib：Five-Arm

Base Info

  • Model NO.：Qy100K
  • Type：Folding
  • Max. Lifting Load：100t
  • Max. Travel Speed：75km,H
  • Total Weight in Travel：54900kg
  • Min. Rated Working Radius：3m
  • Transport Package：Nude Package
  • Specification：15600*3000*3850
  • Trademark：xc, mg
  • Origin：China
  • Production Capacity：1000pieces,Year

Description

CategoryItemUnitParameterMain Lifting PerformanceMax. total rated lifting capacityt100Min. rated working radiusm3Turning radius at turntable tailAt counterweightmm4200At auxiliary winchmm4590Max. load momentBase boomkN.m3450Fully-extended boomkN.m1950Fully-extended boom+jibkN.m1230Outrigger spanLongitudinalm7.56Lateralm7.6Hoist heightBase boomm13.5Fully-extended boomm50.9Fully-extended boom +Jibm70.4Boom lengthBase boomm13.5Fully-extended boomm51Fully-extended boom +18.1m Jibm51+18.1Fully-extended boom +18.1m Jib+one 4m sectionm51+18.1+4Jib offset angle°0, 15, 30Working
SpeedElevating timeBoom raisings75Telescoping timeFully extended / retracteds160Max. swing speedr/min2Outrigger extending and retracting timeOutrigger
beamExtending
Simultaneouslys25Retracting
Simultaneouslys15Outrigger
jackExtending
Simultaneouslys45Retracting
Simultaneouslys25Hoist speed (single line, 4th layer)Main winchNo loadm/min105Auxiliary winchNo loadm/min104NoiseExterior noise leveldB (A)≤118Noise level at seated positiondB (A)≤90
