• Model NO.：Qy55V
• Type：Folding
• Max. Rated Lifting Capacity：55000kg
• Max. Load Moment of Main Boom(Fully E：1050kn.M
• Max. Lifting Height of Main Boom：43.6m
• Max. Load Moment of Basic Boom：12.6m
• Max. Lifting Height of Jib：58m
• Transport Package：RO-RO,Bulk Shipment,Suitable Container
• Trademark：Zoomlion
• Origin：China
• HS Code：8426990000
• Production Capacity：1000 Set Per Month

ItemUnitValueRemarksWorking    performanceMax.    rated lifting capacitykg55000 Max.    load moment of basic boomkN.m2009 Max.    load moment of main boom(fully extended)kN.m1050 Max.    load moment of basic boomm12.6 Max.    lifting height of main boomm43.6These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm58Working    speeds              Max.    hoist rope speed(Main winch)m/min120 Max.    hoist rope speed(Auxiliary winch)m/min120 Boom    demrricking up times50 Boom    demrricking up times95 Slewing  speedr/min0-2.2 Driving    parametersMax.    height above sea levelm2000 Max.    driving  speedkm/h76 Max.    gradeability%40 Min.    turning diameterm≤24 Min.  ground clearancemm260 Oil    consumption per hundred kilometersL43 MassDeadweight    in driving conditionkg42000 Complete    vehicle kerb masskg41870 Front    axle loadkg16000 Rear    axle loadkg26000 DimensionsOverall    dimensions(L×W×H)mm13700×2800×3800 Outrigger    spread(L)m5.92 Outrigger    spread(W)mFully    extended:7.1,intermediately extended:4.8 Tail    slewing radiusmm3900 Main    boom lengthm11.4    - 43.0 Boom    angle°-2    - 80 jib    lengthm9.2,14.6Low-mounted,    open-typeOffset°5,25,45

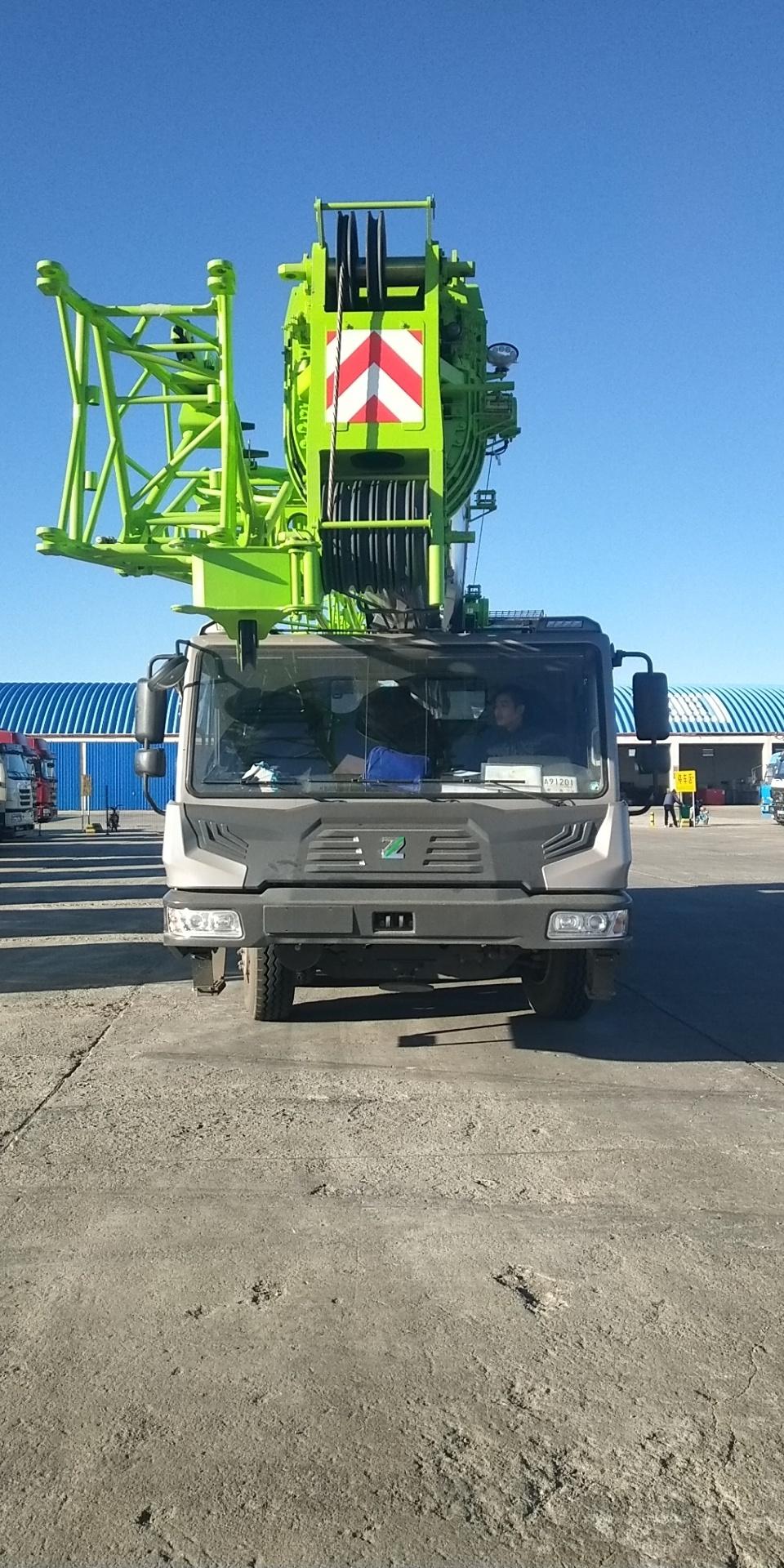

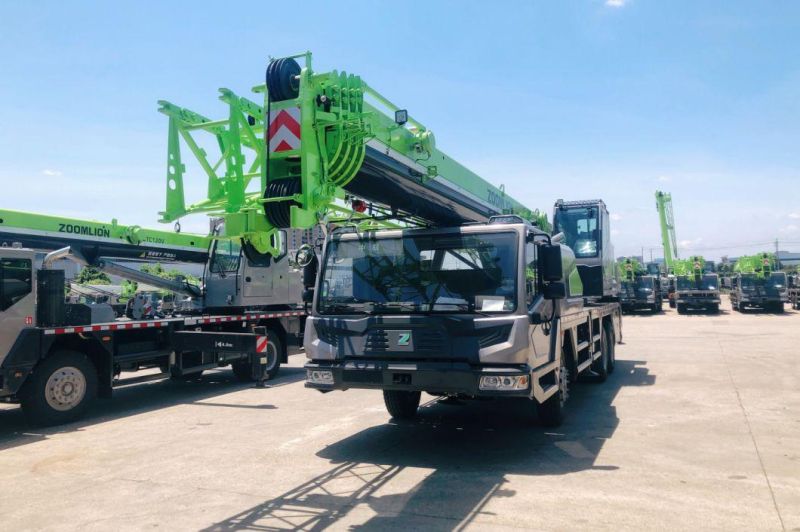

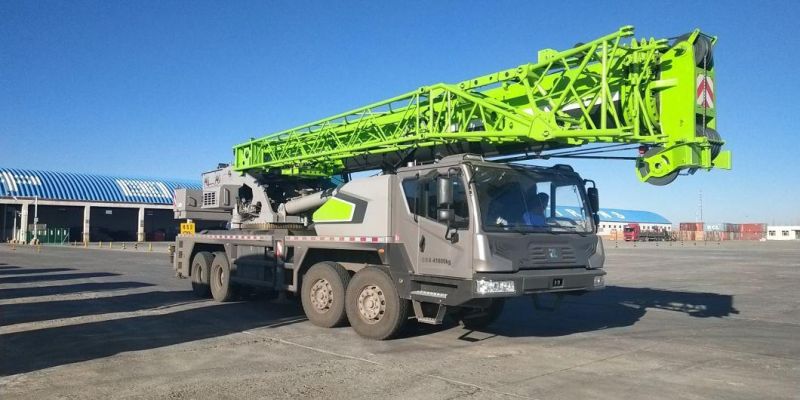

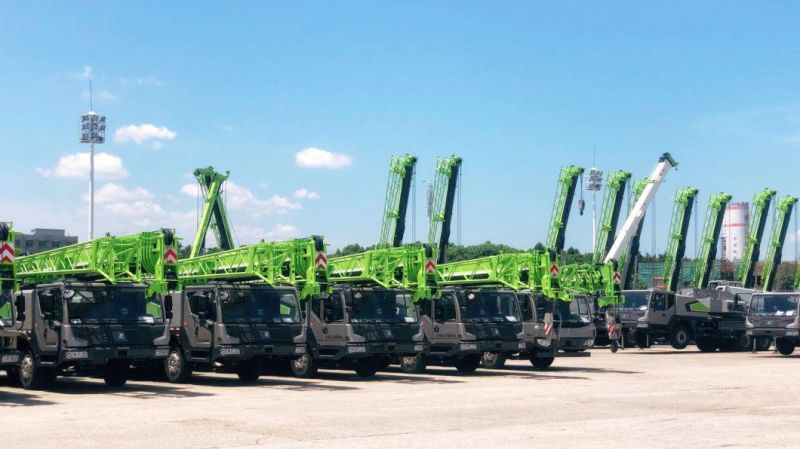

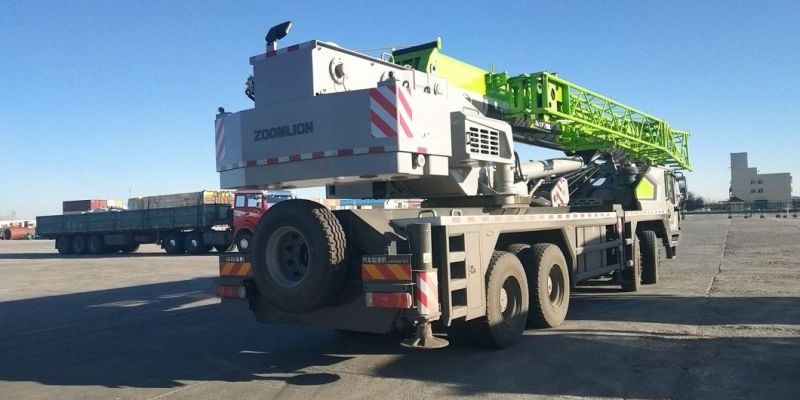

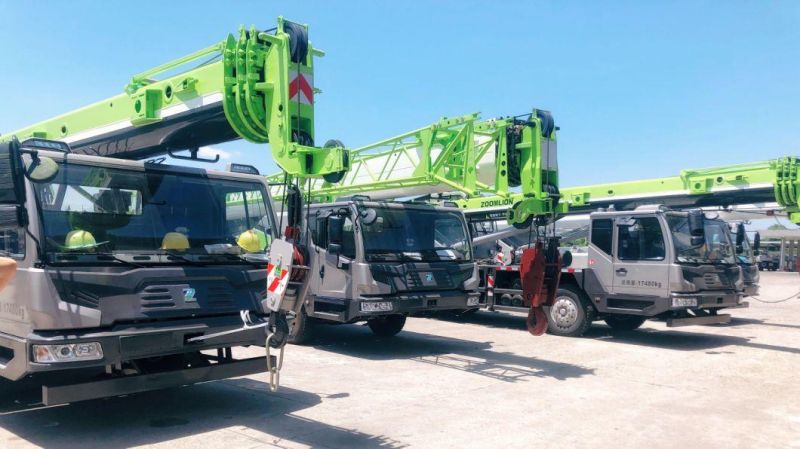

Product show

Company Information

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

       Oriemac is a leading Chinese construction machinery exporter, located in Shanghai, and has introduced top Chinese machinery enterprises and their products to international markets, such as Zoomlion, Changlin, liugong, Shantui, HBXG,etc.

      Oriemac brings you a wide range of construction machionery series as follows:

-- Lifting Machinery, such as Truck Crane, All Terrain Crane, Rough Terrain Crane, Crawler Crane, and mTruck-mounted Crane
-- Earthmoving Machinery, such as Wheel loader, Mini Loader, Excavator, Bulldozer, Backhoe Loader, and Skid Steer Loader
-- Concrete Machinery, such as Concrete Pump, Trailer-mounted Concrete Pump and Concrete Mixer
-- Drilling Machinery, such as Horizontal Directional Drill, Rotary Drilling Rig and Roadheader
-- Logistics Machinery, such as Telescopic Handler and Forklift
-- Special Vehicle, such as Dump Truck, Semi Trailer, Aerial Work Form, and Fire Truck

Our company will offer you the high quality products with a low price, quick delivery, and professional after-sale services.
