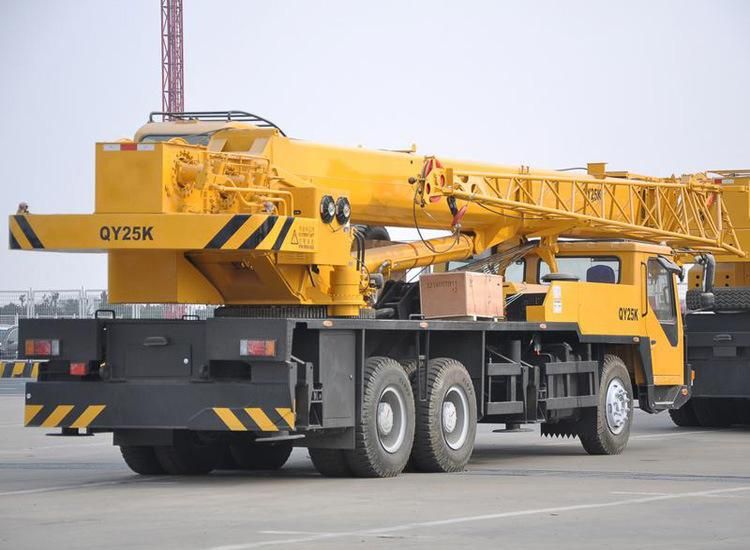

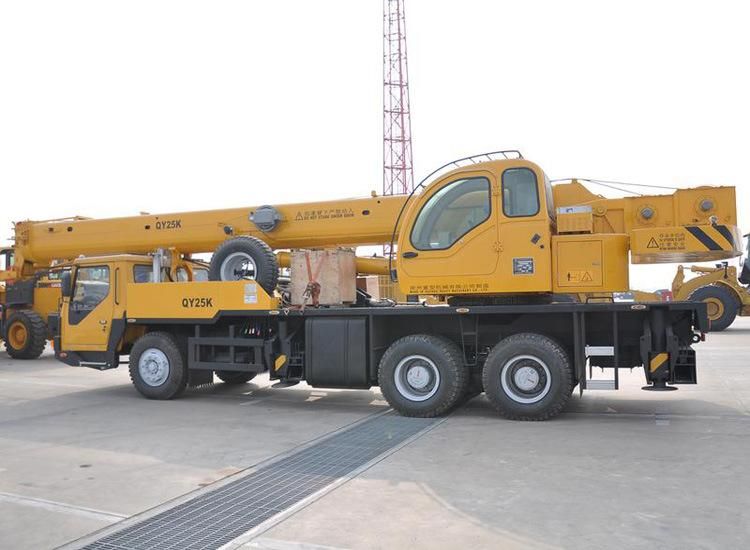

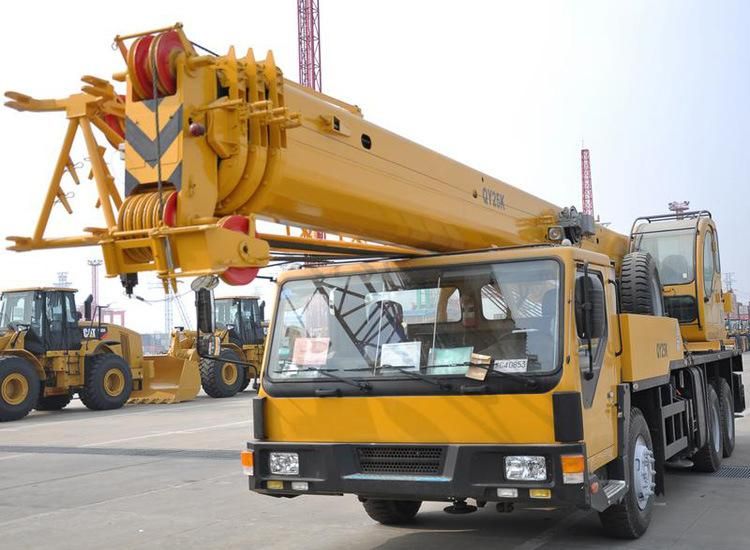

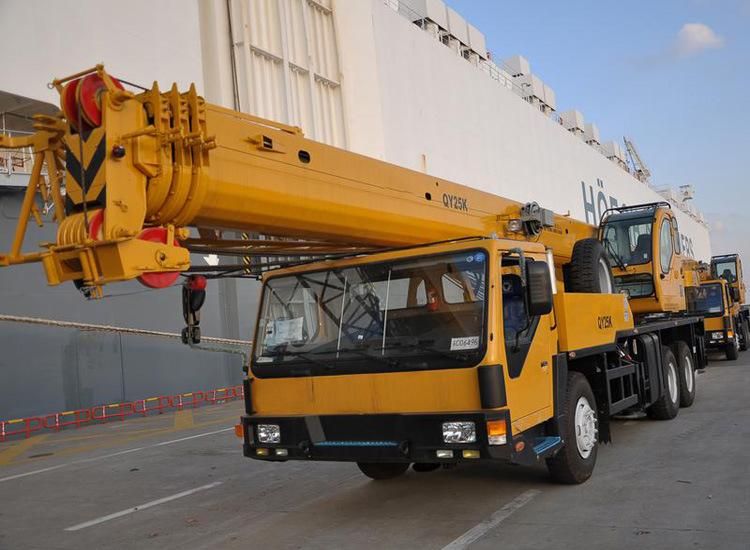

• Model NO.：QY25K
• Type：Straight Arm
• Total Mass in Travel State：29400kg
• Engine Model：Sc8dk280q3,Wd615.329,6cl280-2
• Fuel Consumption for 100km：37L
• Engine Rated Output：206,2200, 213,2200 206,2200kw,(R,Min)
• Engine Rated Torque：1112,1400 1160,1400 1170,1400n.M, (R,Min)
• Min. Rated Working Radius：3m
• Max. Total Rated Lifting Capacity：25t
• Base Boom Length：>10.6m
• Transport Package：Nude Packing
• Specification：11990*2500*3350mm
• Origin：China
• HS Code：8429119000
• Production Capacity：1000,Year

Item

Unit

Dimensions

Total length

12550

mm

Total width

2500

mm

Total height

3380

mm

Weight

Operating Weight

29400

Kg

Front axle load

6200

Kg

Rear axle load

23200

Kg

Power

Engine model

SC8DK280Q3/WD615.329/6CL280-2

Engine power ratings

206/2200/ 213/2200 206/2200

Kw(r/min)

Engine torque ratings

1112/1400 1160/1400 1170/1400

N.m(r/min)

Travel

Max.travel diameter

75

Km/h

Min. turning diameter

22

m

Min. ground clearance

260

mm

Approach angle

16

.

Departure angle

13

.

Max. grade ability

30

%

Fuel consumption of 100km

37

L

Driving Parameters

Max. total lifting capacity

25

t

Min. working radius

3000

mm

Turning  radius at swing table tail

3.065

m

Max. lifting torque

1000

Kn.m

Basic boom lifting length

10.6

m

Longest boom lifting length with secondary arm

41.15

m

Longest boom lifting length

33

m

Outrigger longitudinal distance span

5.14

m

Outrigger lateral distance span

6

m

Working speed

Elevation duration for secondary boom

75

s

Elevation duration for fully extended boom

100

s

Max. rotation speed

≥2.5

r/min

Max. speed for main winch

≥120

m/min

Max. speed  for auxiliary  winch

≥120

m/min
