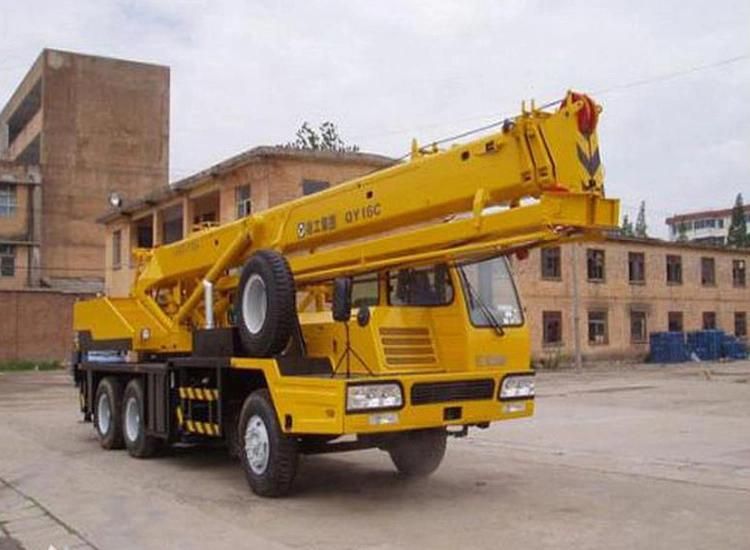

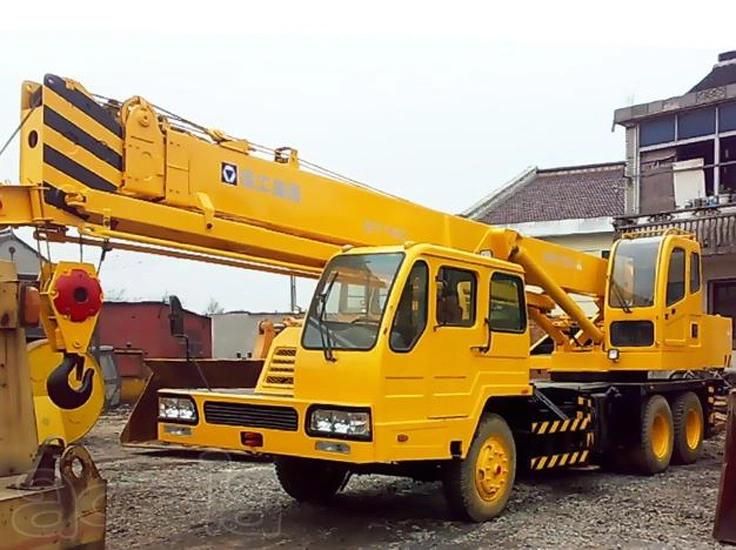

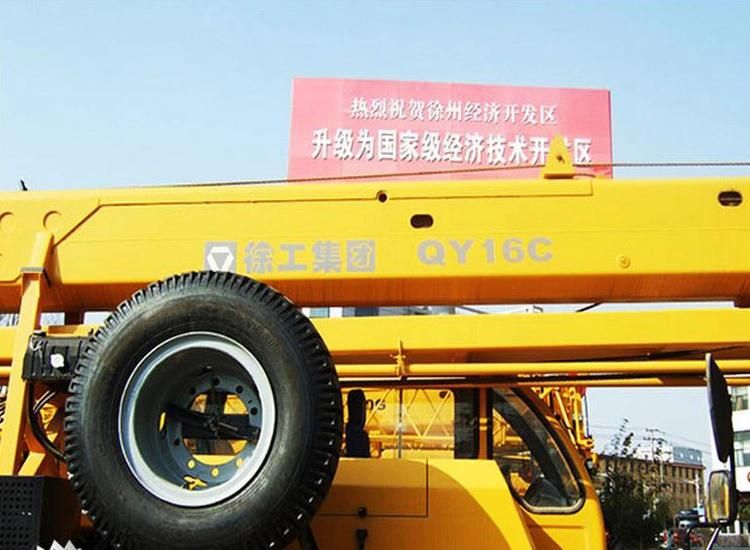

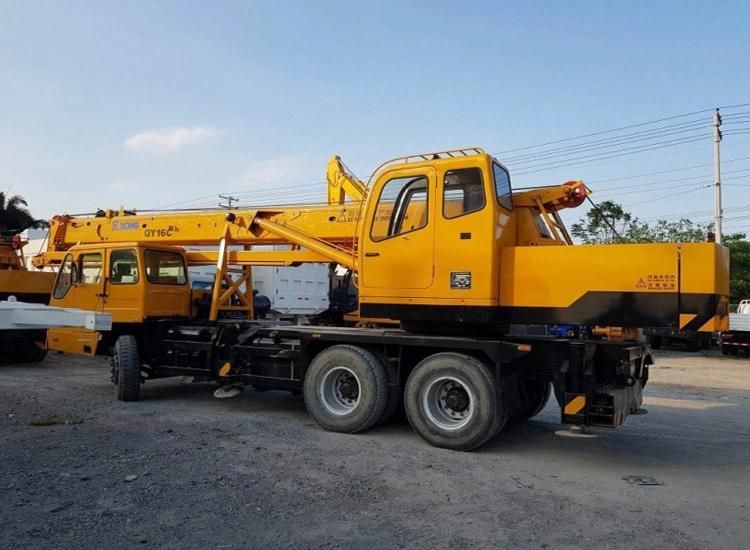

• Model NO.：QY16C
• Type：Straight Arm
• Total Mass in Travel State：22900kg
• Engine Model：D6114
• Fuel Consumption for 100km：35L
• Engine Rated Output：158,2200kw,(R,Min)
• Engine Rated Torque：790,1400n.M, (R,Min)
• Min. Rated Working Radius：3m
• Max. Total Rated Lifting Capacity：16t
• Base Boom Length：>9.9m
• Transport Package：Nude Packing
• Specification：11990*2500*3350mm
• Origin：China
• HS Code：8429119000
• Production Capacity：1000,Year

EngineModel D6114Outline dimensionOverall lengthmm11990Overall widthmm2500Overall heightmm3350Wheel baseAxle 1, Axle 2mm4025Axle 2, Axle 3mm1350MassTotal mass in travel statekg22900 Axle 1kg5240Axle loadAxle 2kg17660Travel performanceTravel speedMax. travel speedkm/h70Min. stable travel speedkm/h4Turning diameterMin. turning diameterm20Min. turning diameter at boom tipm23Min. ground clearancemm270Approach angle(°)21Departure angle(°)10Braking distance (at 30km/h with full load)m9.5Max. grade-ability%24Fuel consumption for 100kmL35PowerEngine rated outputkW/(r/min)158/2200Engine rated torqueN.m/ (r/min)790/1400Engine rated speedr/min2200
