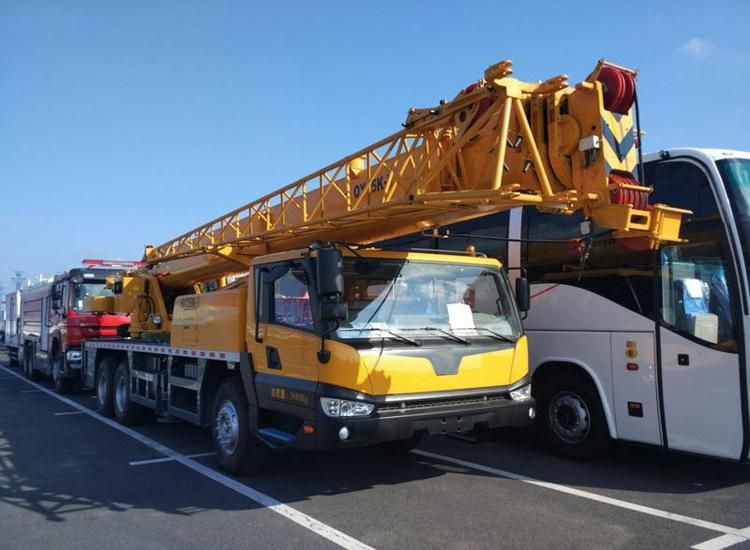

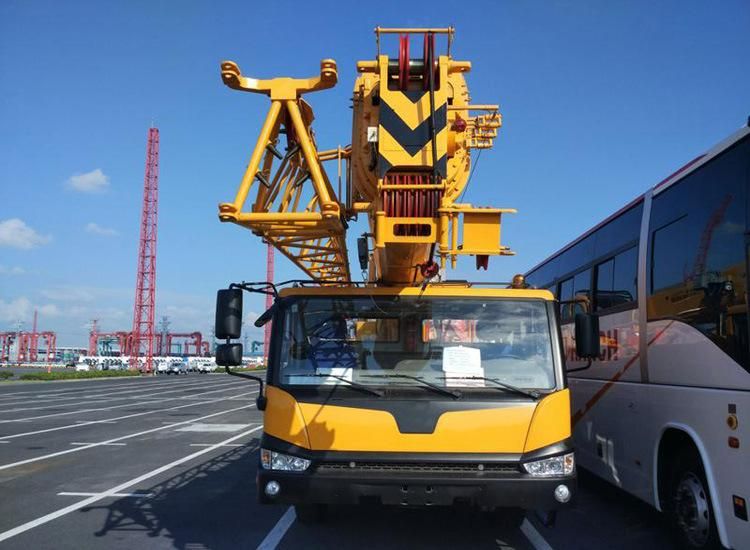

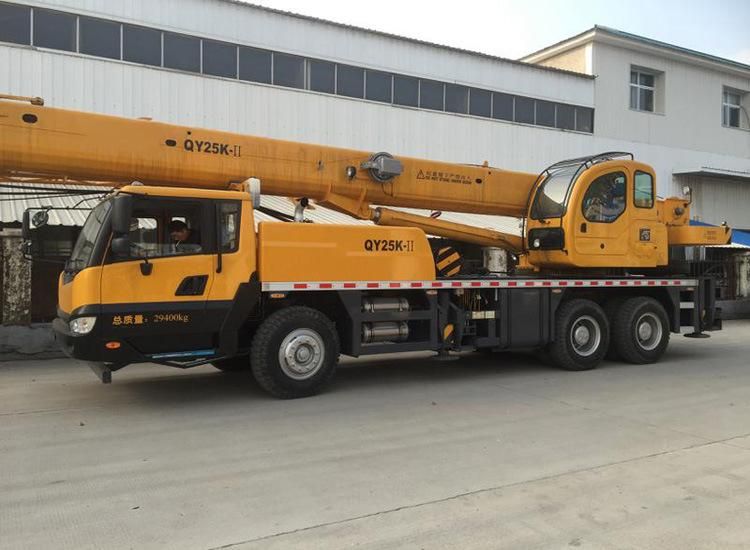

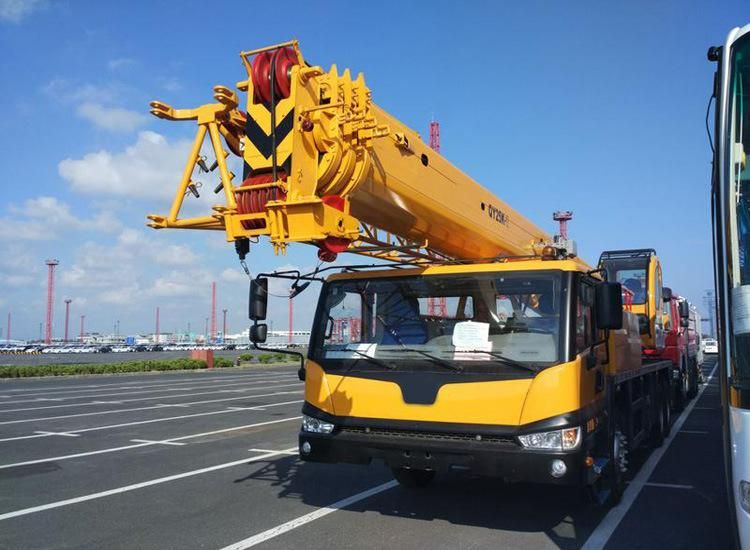

• Model NO.：QY25K-II
• Type：Straight Arm
• Total Mass in Travel State：29400kg
• Engine Model：Sc8dk280q3,Wd615.329
• Fuel Consumption for 100km：37L
• Engine Rated Output：206,2200, 213,2200 Kw,(R,Min)
• Engine Rated Torque：1112,1400 1160,1400 N.M, (R,Min)
• Min. Rated Working Radius：3000mm
• Max. Total Rated Lifting Capacity：25t
• Base Boom Length：>10.7m
• Transport Package：Nude Packing
• Specification：12300*2500*3380mm
• Origin：China
• HS Code：8429119000
• Production Capacity：1000,Year

Dimension

Unit

Overall length

mm

12650

Overall width

mm

2500

Overall height

mm

3380

Weight

Total weight in travel

kg

29400

Front axle load

kg

6200

Rear axle load

kg

23200

Power

Engine model

SC8DK280Q3 / WD615.329(domestic III)

Engine rated power

kW/(r/min)

206/2200   213/2200

Engine rated torque

N.m/(r/min)

1112/1400  1160/1400

Travel

Max. travel speed

km/h

75

Min. turning diameter

m

21.5

Min. ground clearance

mm

275

Approach angle

°

16

Departure angle

°

13

Max. grade ability

%

30

Fuel consumption for 100km

L

≈37

Main performance

Max. rated total lifting capacity

t

25

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.065

Max. lifting torque

kN.m

1010

Base boom

m

10.7

Fully extended boom

m

34.19

Fully extended boom+jib

m

42.15

Longitudinal outrigger span

m

5.14

Lateral outrigger span

m

6

Working speed

Boom luffing time

s

75

Boom full extension time

s

100

Max. swing speed

r/min

≥2.5

Max. speed of main winch (single rope)

m/min

≥120

Max. speed of aux. winch (single rope)

m/min

≥120
