Chinese Factory Qy25K-II Truck Crane Price for Sale

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • After-sales Service：Support
  • Warranty：Support
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：QY25K-II
  • Shaft Number：3
  • Crane Jib：Four-Arm
  • Type：Straight Arm
  • Transport Package：Container Roro Bulk Break Shipment
  • Specification：12650*2500*3380mm
  • Trademark：Top brand
  • Origin：Jiangsu, China
  • HS Code：8705109100
  • Production Capacity：10000 Units,Month

Description

Dimension

Unit

QY25K-II

Overall length

mm

12650

Overall width

mm

2500

Overall height

mm

3380

Weight



Total weight in travel

kg

29400

Front axle load

kg

6200

Rear axle load

kg

23200

Power



Engine model



SC8DK280Q3 / WD615.329(domestic III)

Engine rated power

kW/(r/min)

206/2200   213/2200

Engine rated torque

N.m/(r/min)

1112/1400  1160/1400

Travel



Max. travel speed

km/h

75

Min. turning diameter

m

21.5

Min. ground clearance

mm

275

Main performance



Max. rated total lifting capacity

t

25

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.065

Max. lifting torque

kN.m

1010

Base boom

m

10.7

Lateral outrigger span

m

6

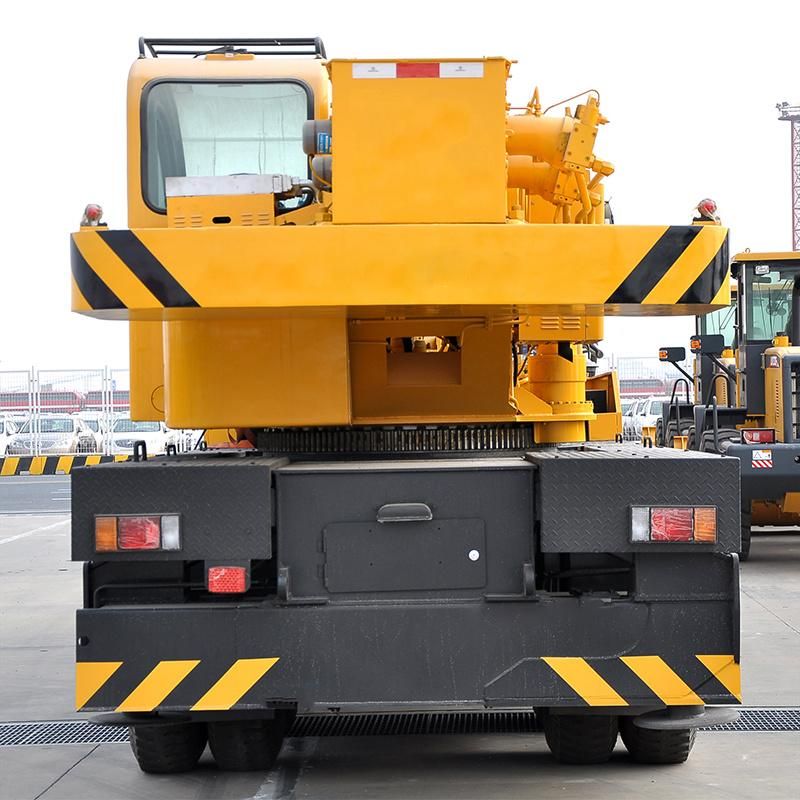

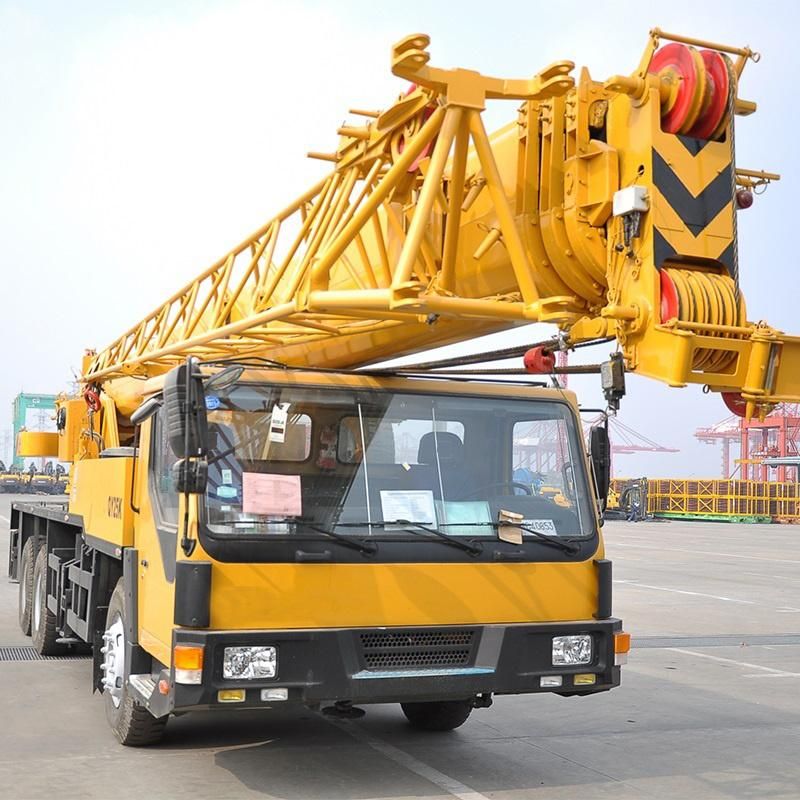

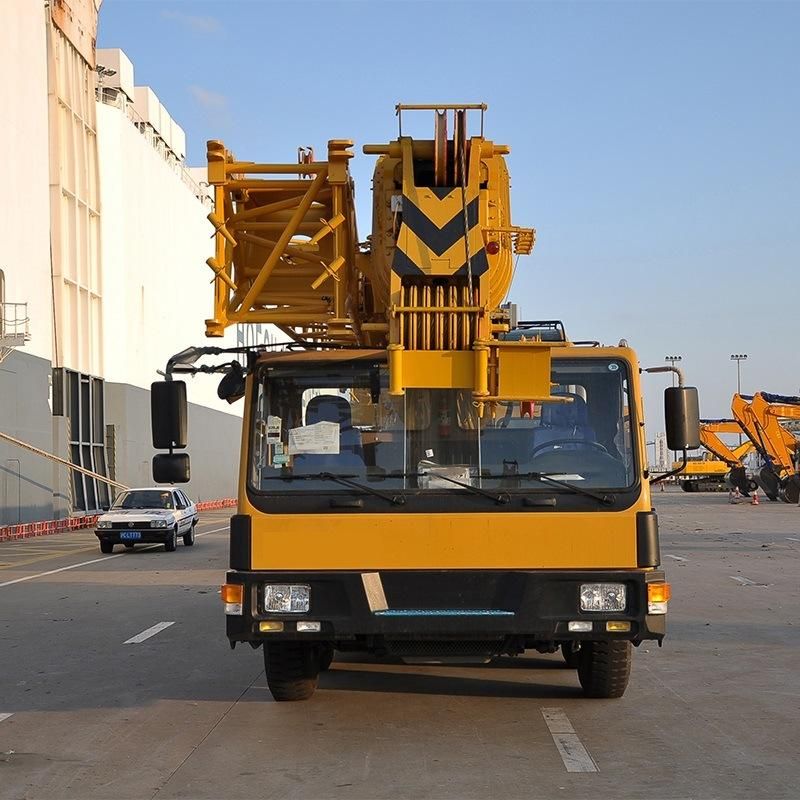

Product Show
