L Type Gantry Crane-Single Main Beam Hook Gantry Crane
Henan Kuangshan Crane Co., Ltd.- After-sales Service：on Line
- Warranty：on Line
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Weight：20-50t
- Maximum Lifting Height：30-40m
Base Info
- Model NO.：MDG
- Operation Form：Cabin
- Type：Common Gantry Crane
- Main Girder Form：Single Girder
- Name：L Type Gantry Crane
- Hoisting Mechanism：Winch Trolley
- Lifting Speed：8m,Min
- Traveling Speed：20m,Min
- Voltage：Customized
- Protection Class：IP54
- Transport Package：Our Standard Package. Generally, We Use Wooden CAS
- Specification：different
- Trademark：Kuangyaun
- Origin：Xinxiang(Crane Hometown), Henan Province, China
Description
380V 50Hz 3-Phase
Description

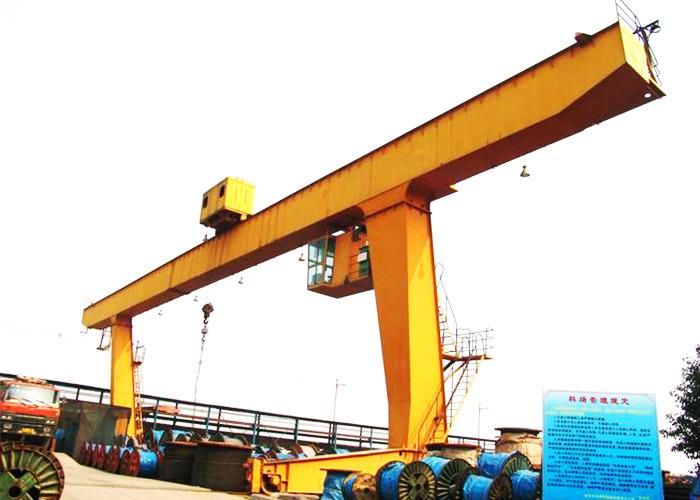

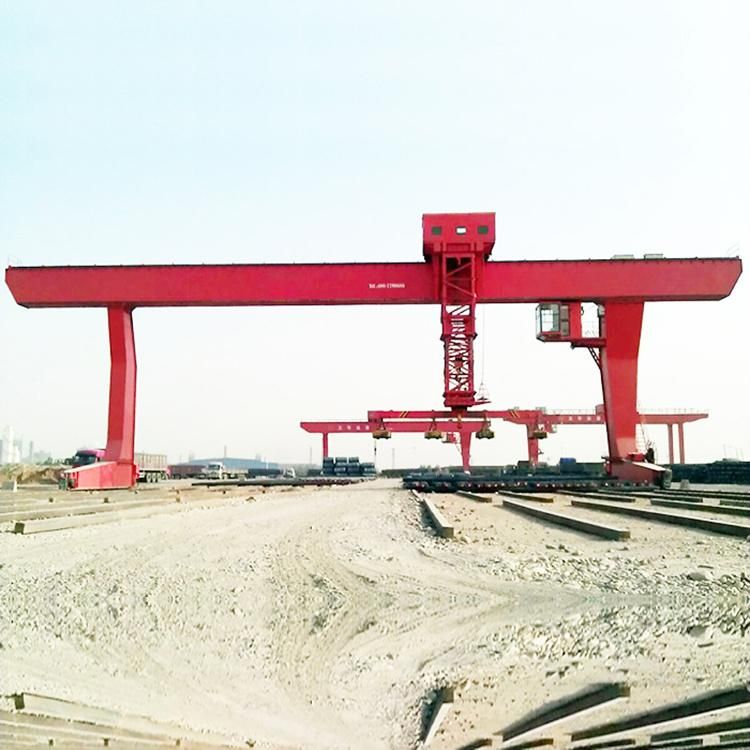

1. L single main beam hook hoist gantry/door crane is mainly composed of gantry, crane crab, and trolley traveling mechanism, cab and electric control system.
2. The gantry is of a box-shape structure. The crab adopts vertical reaction wheel when the lifting load is below 20t, and horizontal reaction wheel when above 20t to run at the girder side.
3. The girder is of single-girder bias track and the leg is L-shaped, so that the lifting space is large and the spanning ability is strong, making it easy to covey articles from the span to under the jib.
4.The closed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and interphone which can be furnished as required by users.
Feature
1. Crane material:Q235,Q345B/Q345D
2. Strong box type, no-welding joint strong box type, by machine hand, strong and beautiful.
3. Wheelsare vacuum casting by ourselves, intermediate frequency quenching.
4. Wheels,wirerope,drum,gears,coupling are manufactured by our CNC machines.
5. Nanjing special or Nanjing Brand motor,top quality in China.
6. Eletrical equipments:Siemens or Schneider brand.
7. Control method:Cabin control,wireless remote control or pendant control,you can choose two of them (According to your demand to design the gantry crane.)
Safety system:
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Current overload protection system and so on!
Description
1. L single main beam hook hoist gantry/door crane is mainly composed of gantry, crane crab, and trolley traveling mechanism, cab and electric control system.
2. The gantry is of a box-shape structure. The crab adopts vertical reaction wheel when the lifting load is below 20t, and horizontal reaction wheel when above 20t to run at the girder side.
3. The girder is of single-girder bias track and the leg is L-shaped, so that the lifting space is large and the spanning ability is strong, making it easy to covey articles from the span to under the jib.
4.The closed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and interphone which can be furnished as required by users.
Feature
1. Crane material:Q235,Q345B/Q345D
2. Strong box type, no-welding joint strong box type, by machine hand, strong and beautiful.
3. Wheelsare vacuum casting by ourselves, intermediate frequency quenching.
4. Wheels,wirerope,drum,gears,coupling are manufactured by our CNC machines.
5. Nanjing special or Nanjing Brand motor,top quality in China.
6. Eletrical equipments:Siemens or Schneider brand.
7. Control method:Cabin control,wireless remote control or pendant control,you can choose two of them (According to your demand to design the gantry crane.)
Safety system:
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Current overload protection system and so on!
| Type/Model | L type single beam gantry crane |
| Advantage: | Mid-light type crane, Special good performance for long and heavy goods |
| Structure | Main Beam, Ground Truck, Hoist trolley, Complete Electrical system and control system |
| Quality Standard | ISO 9001: 2000 ISO 14001: 2004 and OHSAS 18001 |
| Motor | Slipring motors, dust proof construction foot / flange mounted TESC / TEFC |
| Brakes: | Independent Hydraulic Brake or built-in mechanical brake |
| Gear Box: | All gears & pinions running on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication |
| Limit Switch | Safety limit switches for stoppers will be provided to prevent over traveling in all motions. |
| Optional Features: | Wireless Radio Remote control Variable speed at all motions available Flameproof Anti-explosion Cabin Operated PLC automatic Control system |
