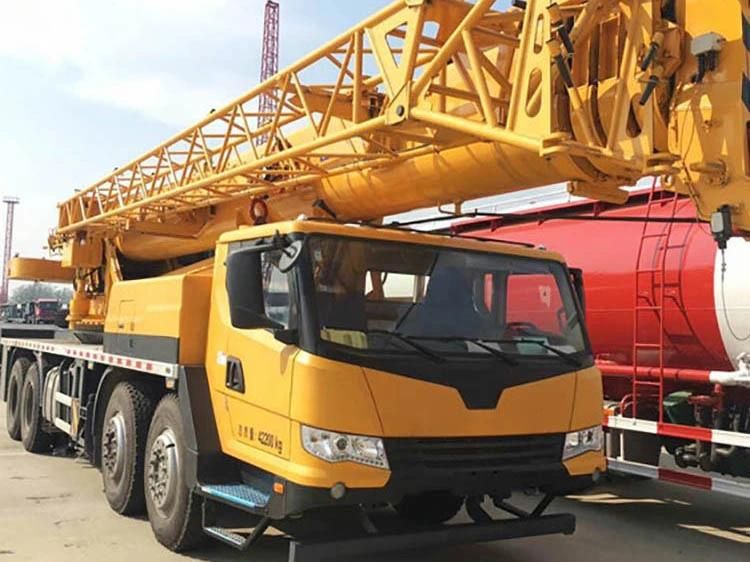

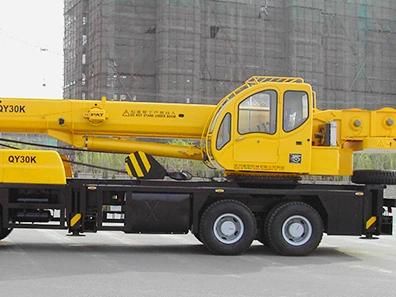

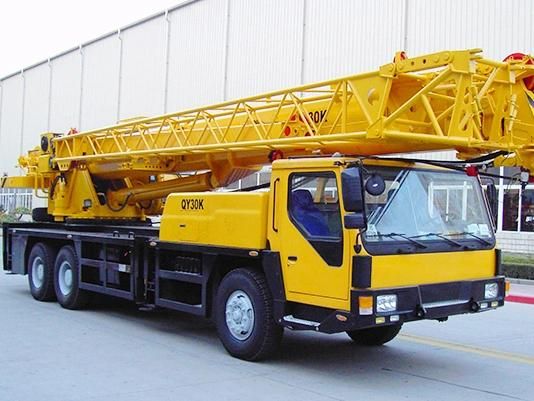

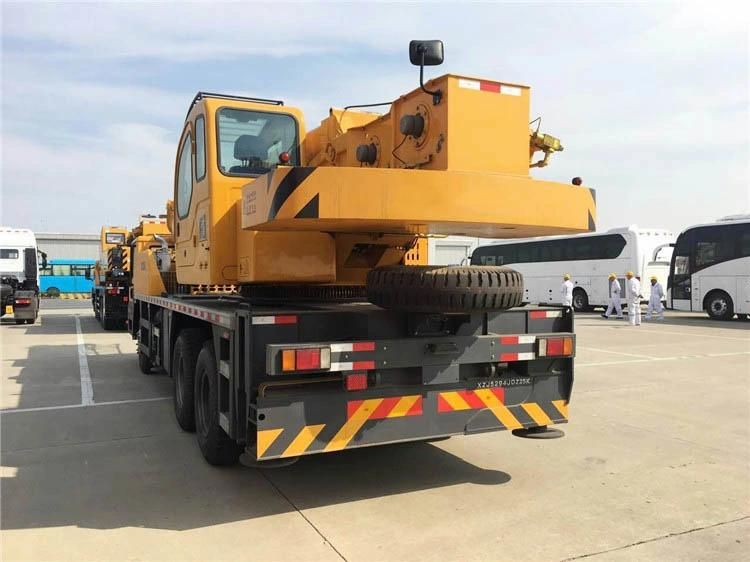

30 Ton Truck Crane Qy30K5-I

Evangel Industrial (Shanghai) Co., Ltd.

After-sales Service：Online Support
Warranty：1year
Certification：CE, ISO9001
Condition：New
Maximum Lifting Height：>40m
Maximum Lifting Weight：>16t

Base Info

Model NO.：QY30K5-I
Shaft Number：3
Crane Jib：Four-Arm
Type：Straight Arm
Max. Lifting Height：48.7m
Max. Lifting Load：30t
Max. Travel Speed：80km,H
Max. Gradeability：40%
Rated Lifting Moment：1025kn. M
Engine：Sc8dk280q3,Wd615.329
Feature：Hydraulic Crane
Color：Golden Yellow
Overall Dimensions(Lxwxh)：12570x2500x3390mm
Transport Package：Seaworthy Packing
Specification：CE, ISO Standard
Trademark：top brand
Origin：Jiangsu
HS Code：8426411000
Production Capacity：30 Sets Per Month

Description

QY30K5-IOverall lengthmm12570Overall widthmm2500Overall heightmm3390Weight Total weight in travelkg32400Front axle loadkg7000Rear axle loadkg25400Power Engine model SC8DK280Q3WD615.329Engine rated powerkW/(r/min)206/2200213/2200Engine rated torqueN.m/(r/min)1112/14001160/1400Travel Max. travel speedkm/h80Min. turning diameterm22Min. ground clearancemm291Approach angle°19Departure angle°13Max. grade ability%40Fuel consumption for 100kmL40Lifting Performance Max. rated total lifting capacityt30Min. rated working radiusmm3000Turning radius at turntable tailm3.065Max. lifting torquekN.m1025Base boomm10.6Fully extended boomm40.4Fully extended boom+ jibm48.7Longitudinal outrigger spanm5.85Lateral outrigger spanm6Working speed Boom luffing times68Boom full extension times150Max. swing speedr/min2.5Max. speed of main winch (single rope) (no load)m/min120Max. speed of aux. winch (single rope) (no load)m/min120 30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I

30 Ton Truck Crane Qy30K5-I
