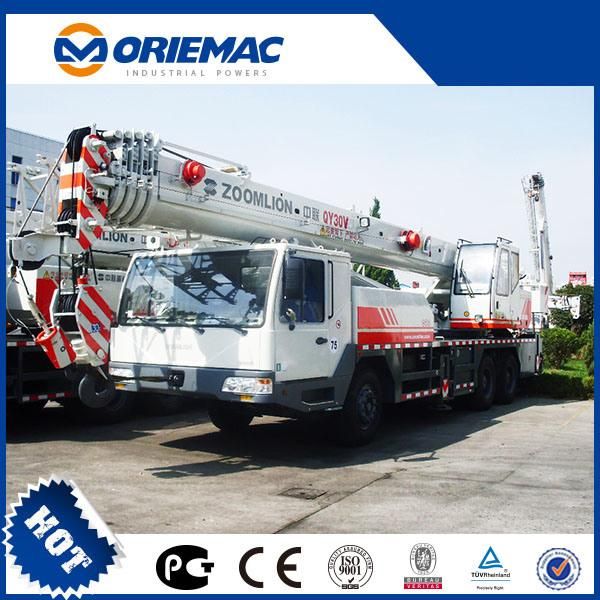

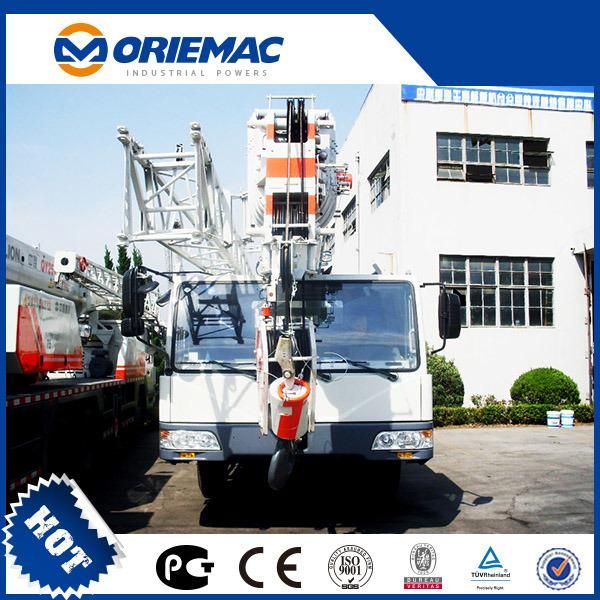

• Model NO.：QY30V532
• Max. Rated Lifting Weight：30ton
• Max. Lifting Height of Basic Boom：11.1m
• Max. Lifting Height of Fly Jib：48.5m
• Engine：Qsc260
• Tower Crane Type：Slewing Tower Crane
• Sling Type：Wire Rope
• Main Girder Form：Single Girder
• Power Source：Hydraulic
• Transport Package：Nude Packing
• Specification：CE, ISO9001
• Trademark：ZOOMLION
• Origin：Jiangsu, China
• HS Code：87051092
• Production Capacity：100 Set,Sets , Month

ItemValueRemarksWorking performance specification
Max. rated total lifting capacitykg32000
Max. load moment of basic boomkN.m1132
Max. load moment with max. main boom lengthkN.m588
Max. lifting height of basic boomm11.1
Max. lifting height of main boomm40.5Deformation of boom is not taken into consideration.
Max. lifting height of fly jibm48.5Working speed
Max. speed of single rope on main winch m/min120The 4 th layer of drum
Max. speed of single rope onauxiliary winch m/min100The 2 nd layer of drum
Derricking time of booms40
Telescopic time of booms80
Slewing speedr/min0~2.2 Traveling specification
Max. traveling speedkm/h78
Max. gradeability%37
Min. turning circle diameter m22
Min. ground clearancemm220
Limits for exhaust pollutants and smokeComply with related standards
GB3847-2005

GB17691-2005 (Stage III)
Oil consumption per hundred kilometersL45 Mass specification
Deadweight of crane in traveling conditionkg32000
Complete vehicle kerb mass kg31870
Front axle loadkg7000
Rear axle loadkg25000 Dimension specification
Overall dimensions (L×W×H)mm12900×2500×3465
Base on outriggersm5.36
Distance between outriggersm6.1
Main boom lengthm10.6~40.0
Main boom angle°-2~80
Fly jib lengthm8
Offset angle of fly jib°0 , 30 Chassis
ModelZLJ5323
Feature No: ZLJ5323V3.2

ZLJ5323V3.3TClassII Engine
ModelWP10.270
QSC 260
Rated powerkW/r/min199/2200
194/2200
Max. output torqueN.m/r/min1100/1300~1600
1180/1500ManufacturerZOOMLION
