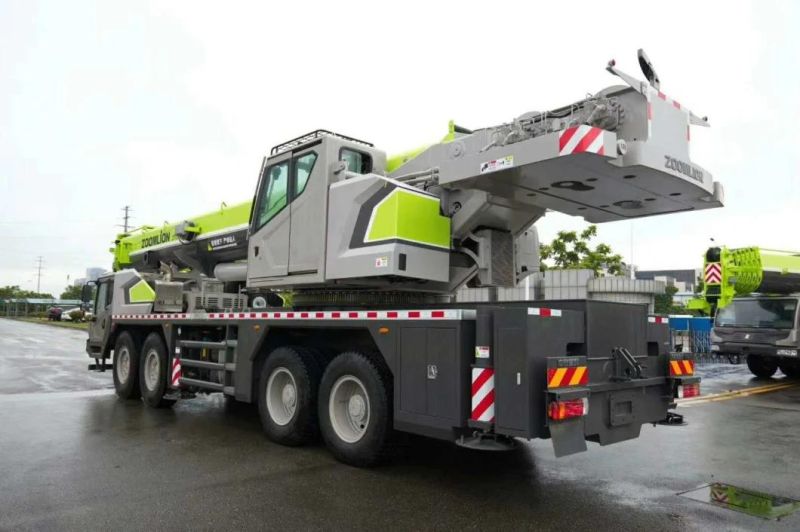

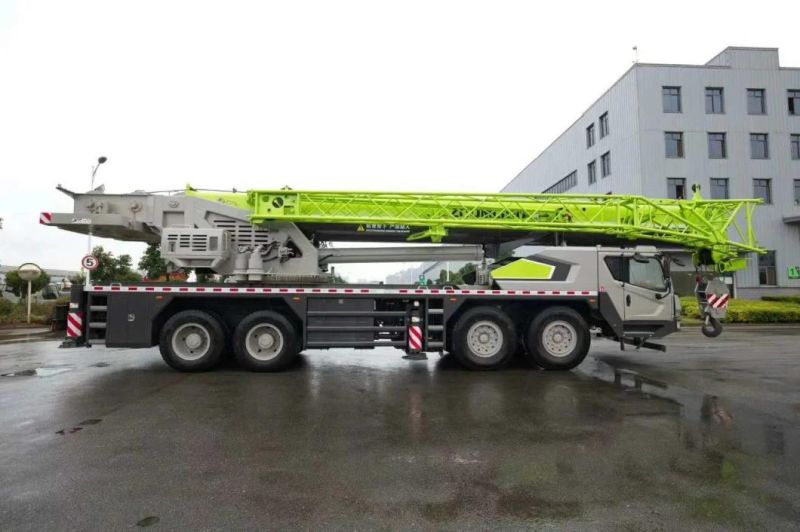

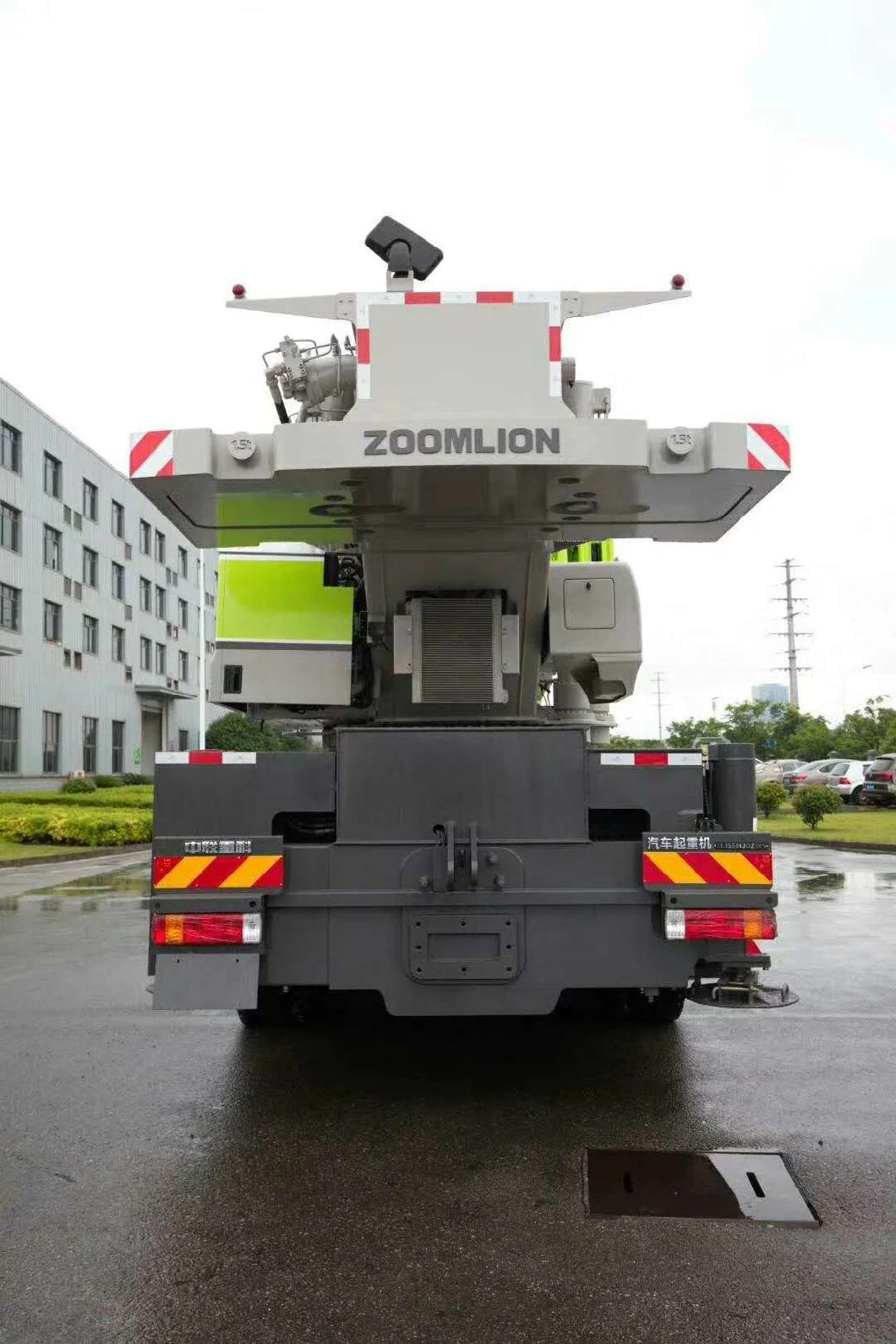

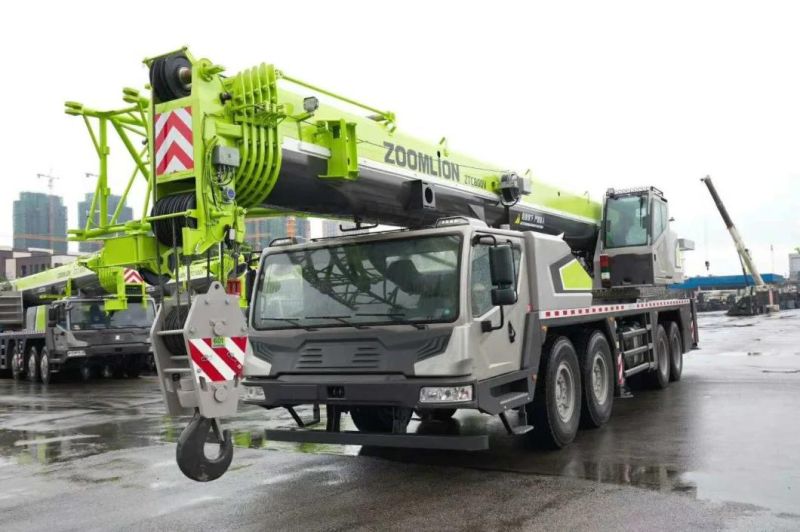

Zoomlion 80 Ton Hydraulic Mobile Truck Crane (QY80V532)
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification:GS, RoHS, CE, ISO9001
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
- Shaft Number:4
- Crane Jib:Five-Arm
Base Info
- Model NO.:QY80V532
- Type:Straight Arm
- Max. Rated Lifting Weight:80 Ton
- Power Source:Hydraulic
- Sling Type:Wire Rope
- Application:Construction Usage
- Transport Package:Nude Packing
- Specification:ISO, CE, GHOST
- Trademark:Zoomlion
- Origin:Hunan, China
- HS Code:87051092
- Production Capacity:5000sets,Month
Description
ItemValue Remarks Working performance specification Max. rated total lifting capacity kg 80000 Max. load moment of basic boom kN.m 2940 1470(Outrigger beam half extended) Max. load moment with max. main boom length kN.m 1440 793.8(Outrigger beam half extended) Max. lifting height of basic boom m 13.2 Max. lifting height of main boom m 47.2 Deformation of boom is not taken into consideration Max. lifting height of fly jib m 58.3 Working speed Max. speed of single rope on main winch m/min 130 The 4 th layer of drum Max. speed of single rope onauxiliary winch m/min 110 The 2 nd layer of drum Derricking time of boom s 70 Telescopic time of boom s 140 Slewing speed r/min 0~2.2 Traveling specification Max. traveling speed km/h 75 Max. gradeability % 38 Min. turning circle diameter m ≤24 Min. ground clearance mm 270 Comply with related standards Limits for exhaust pollutants and smoke Comply with related standards GB3847-2005
GB17691-2005
(StageIII) Oil consumption per hundred kilometers L 52 Mass specification Deadweight of crane in traveling condition kg 50000 Complete vehicle kerb mass kg 49870 Front axle load kg 24000 Rear axle load kg 26000 Dimension specification Overall dimensions(L×W×H)mm
mm 14600×2800×3800 Base on outriggers m 6.20 Main boom length m 12.1~46.5 Main boom angle° -2~80 Fly jib length m 10.3~17.5 Offset angle of fly jib ° 0 , 30
GB17691-2005
(StageIII)
mm
