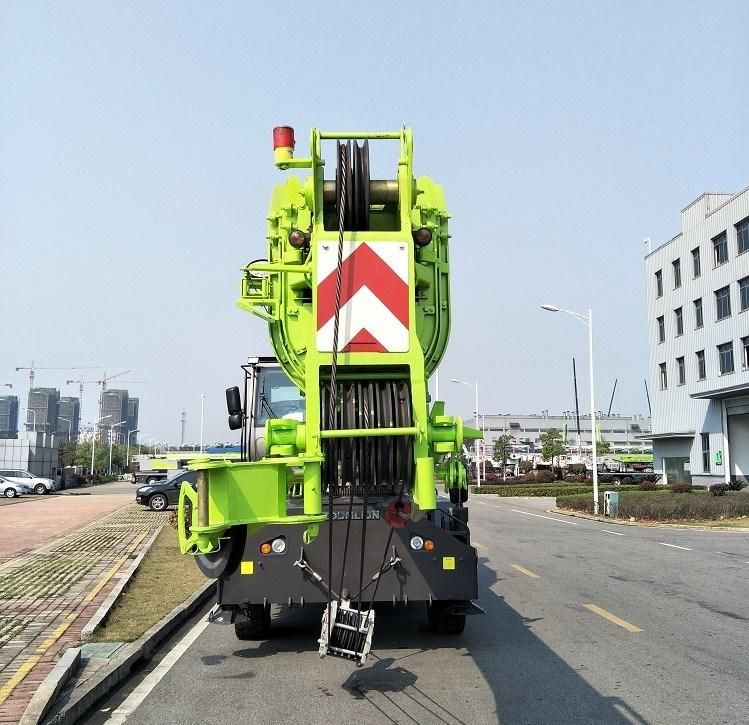

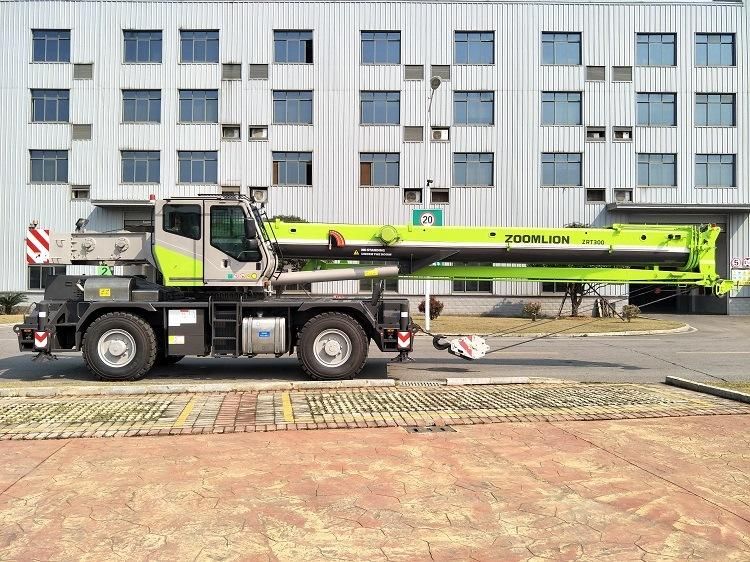

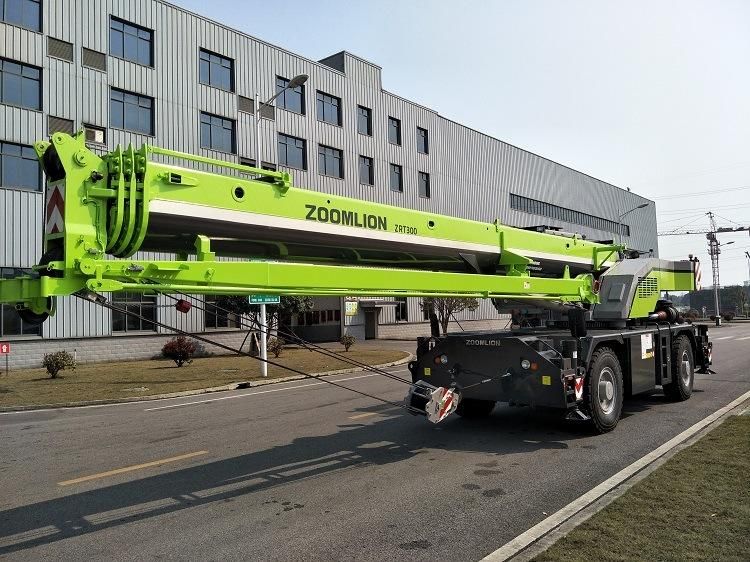

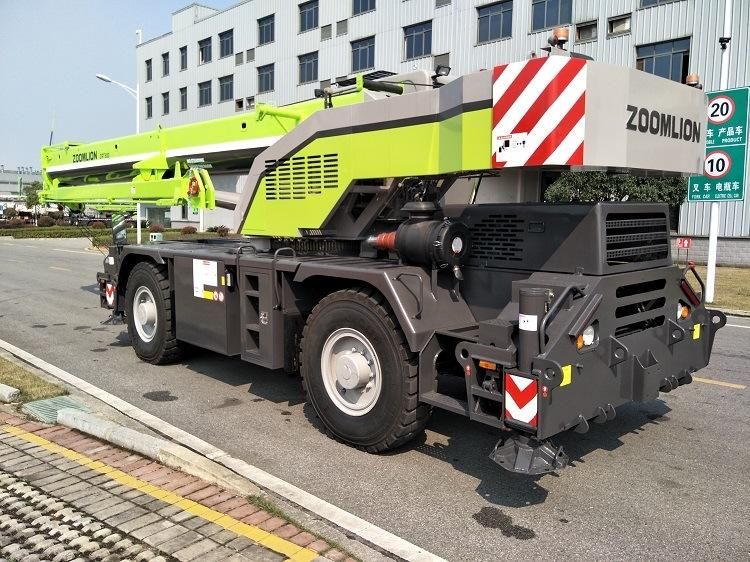

Zoomlion Zrt300 30 Ton Small Rough Terrain Crane for Sale
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification:CE, ISO9001
- Condition:New
- Maximum Lifting Height:30-40m
- Maximum Lifting Weight:35 Ton
- Shaft Number:2
- Crane Jib:Four-Arm
Base Info
- Model NO.:ZRT300
- Type:Straight Arm
- Max. Rated Lift Capacity:30000X3kg.M
- Max. Load Moment of Basic Jib:960kn.M
- Max. Load Moment of Max. Length Main:660kn.M
- Max. Lifting Height of Max. Length M:37.2m
- Max. Lifting Height of Jib:45m
- Complete Vehicle Kerb Mass:28300kg
- Max. Travel Speed:45km,H
- Wheelbase:3880mm
- Max. Gradeability:51%
- Swing Speed:0-2.5r,Min
- Transport Package:Nude Package
- Specification:13600x2610x3600 mm
- Trademark:Zoomlion
- Origin:China
- HS Code:87059091
- Production Capacity:10000
Description
Type
Ser. No.
Item
Unit
Value
Working performance
1
Max. rated lifting weight × working radius
kg.m
30000×3.0
2
Max. lifting moment of basic boom
kN.m
1344
3
Max.lifting moment of longest boom
kN.m
870
4
Max. lifting height of longest boom
m
31
5
Max. lifting height of jib
m
46
Dimensions
6
Outline dimensions (L×W×H)
mm
11935×2980×3600
7
Distance between outriggers (Longitudinal × transversal)
mm
6810×6800
8
Main boom length (completely retracted - completely extended)
mm
9800~31000
9
Jib length (completely retracted - completely extended)
mm
9088~15028
10
Main boom angle of elevation
°
-3~78
11
Swing range
360°continuously
Working speed
12
Max.speed of single rope on the drum of main winch
m/min
150
13
Boom extension time
s
70
14
Boom retraction time
s
75
15
Boom derricking up time
s
46
16
Boom derricking down time
s
47
17
Swing speed
r/min
0~2.5
Hydraulic system
18
Rated working pressure
MPa
27
19
Rated working flow
L/min
400
20
Hydraulic oil tank capacity
L
600
Mass
21
Complete vehicle kerb mass
kg
32000
22
Front axle load
kg
15030
23
Rear axle load
kg
16970
Traveling
24
Max. traveling speed (forwards / backwards)
km/h
38/15
25
Wheelbase
mm
3820
26
Treads (front / rear)
mm
2444
27
Max. gradeability
%
57
28
Min. turning radius (outer edge of the vehicle body)
m
6.5
29
Min. turning radius (2 wheels)
m
11.25
