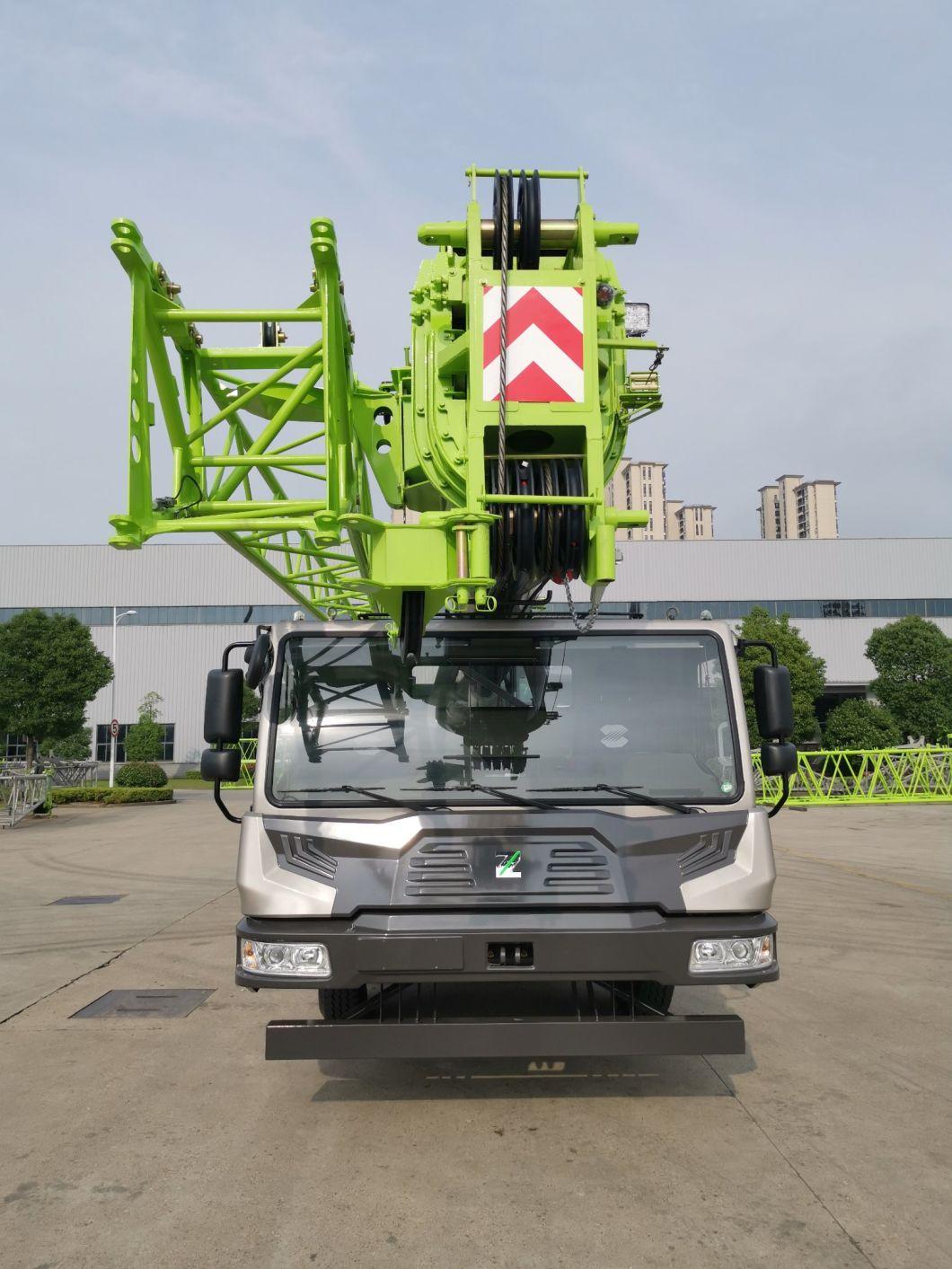

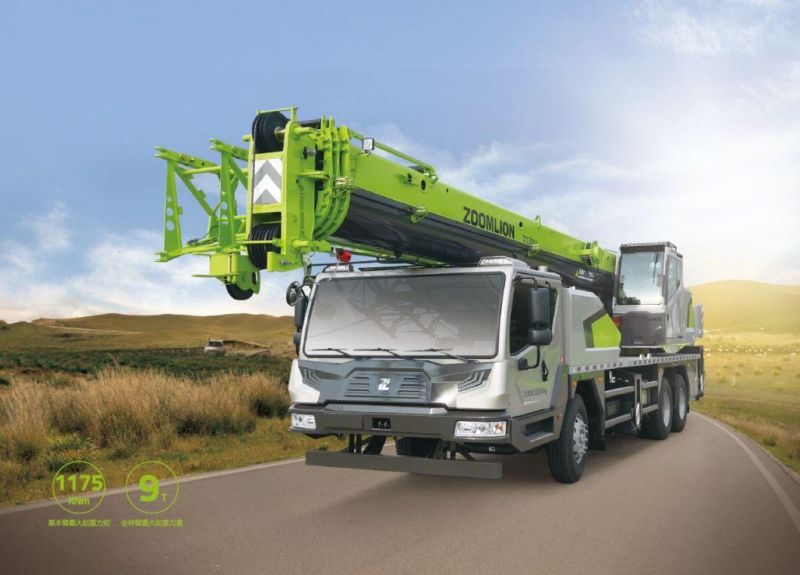

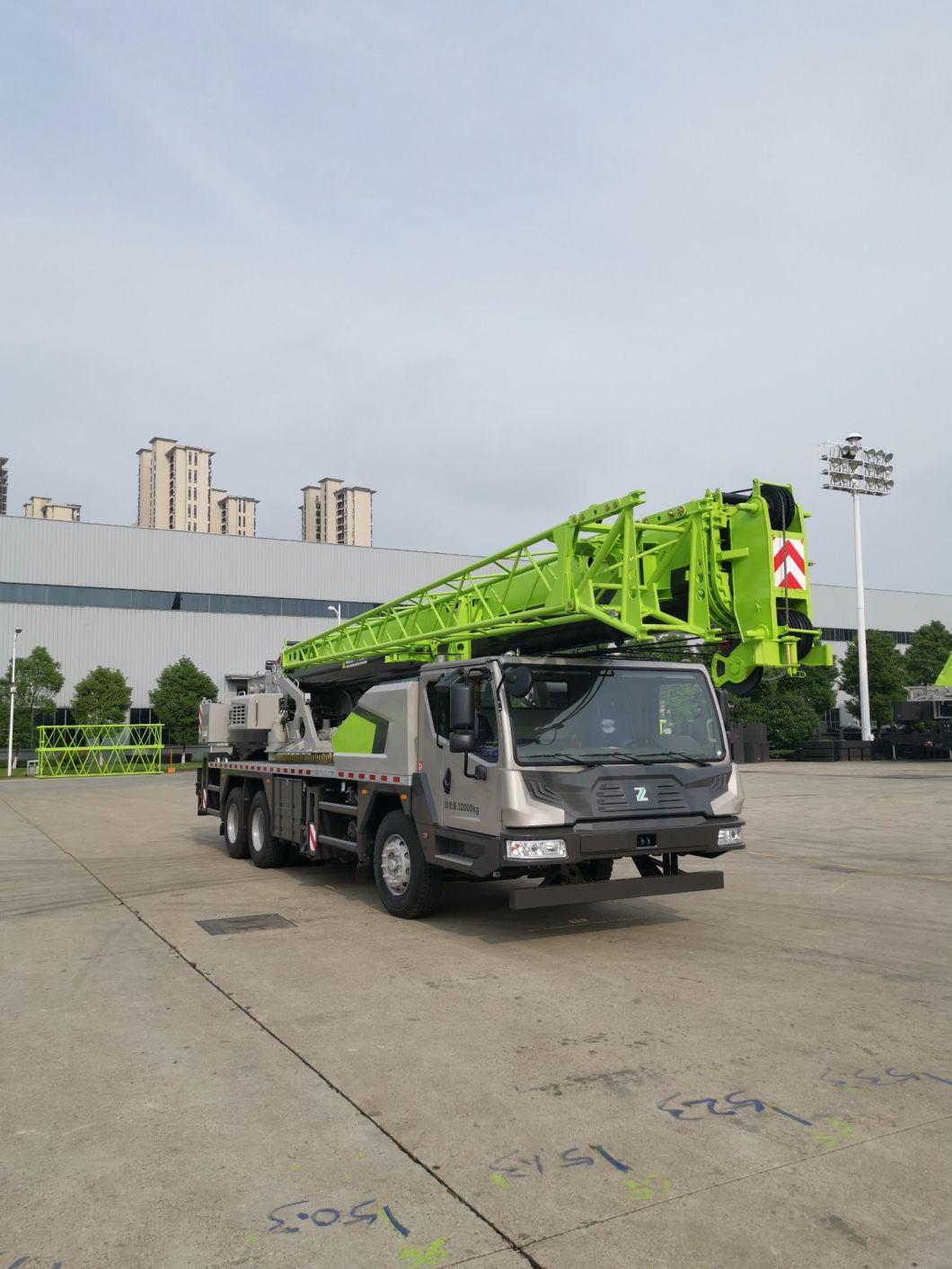

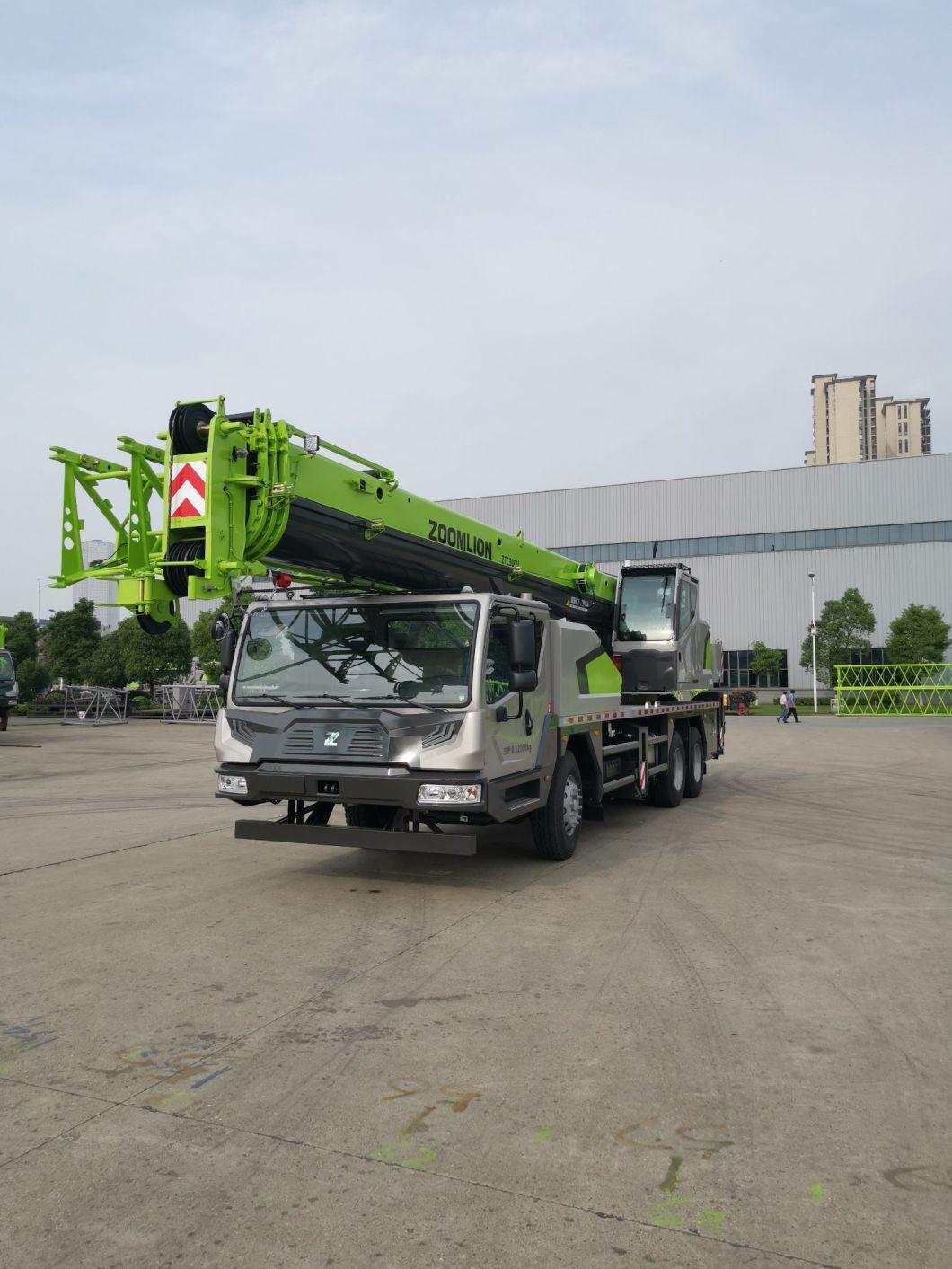

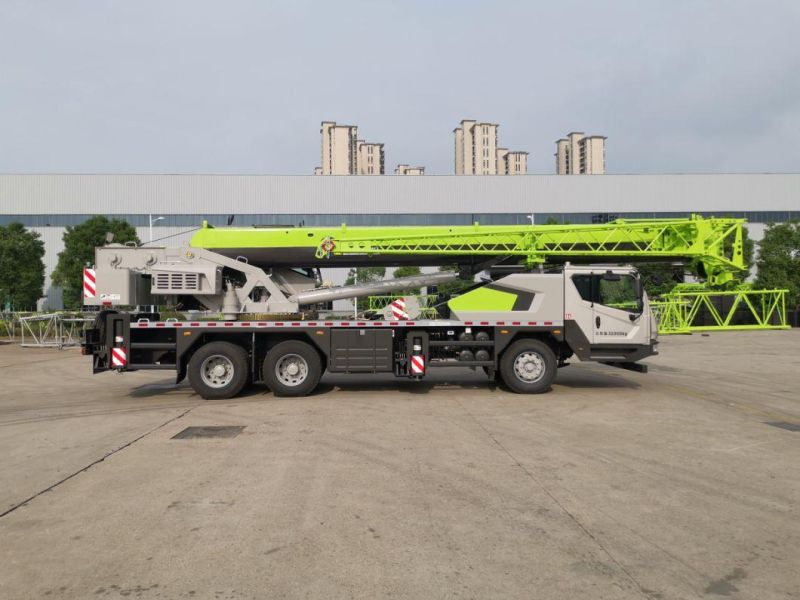

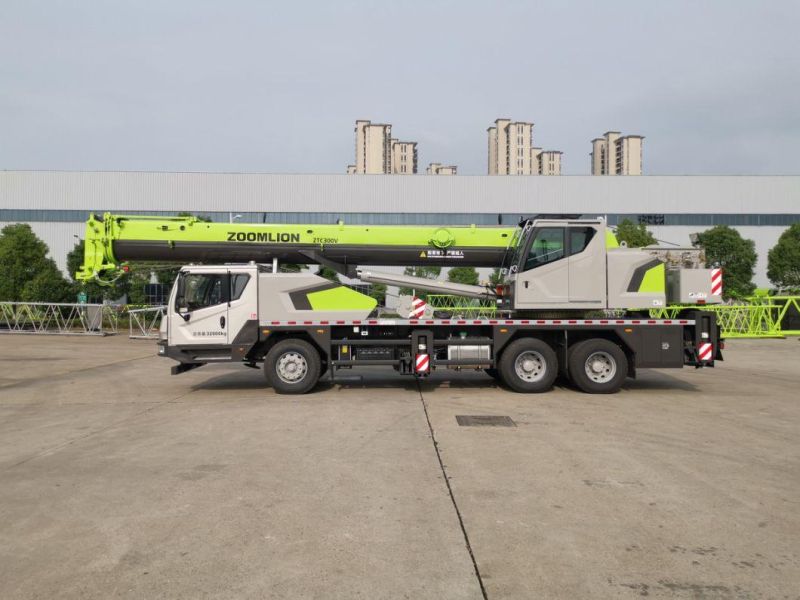

Low Price 30 Ton New Zoomlion Ztc300V452 Truck Crane

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：43m
  • Maximum Lifting Weight：30ton
  • Shaft Number：3
  • Crane Jib：Four-Arm

Base Info

  • Model NO.：ZTC300V452
  • Type：Straight Arm
  • Rated Loading Capacity：30ton
  • Max. Lifting Height of Jib：43m
  • Max. Load Moment of Basic Boom：1175kn.M
  • Engine：Wp8.320e51
  • Power：235kw,2100rpm
  • Weight：32000kg
  • Transport Package：Nude
  • Specification：30ton
  • Trademark：ZOOMLION
  • Origin：Hunan China
  • HS Code：87051091
  • Production Capacity：500unit,Month

Description

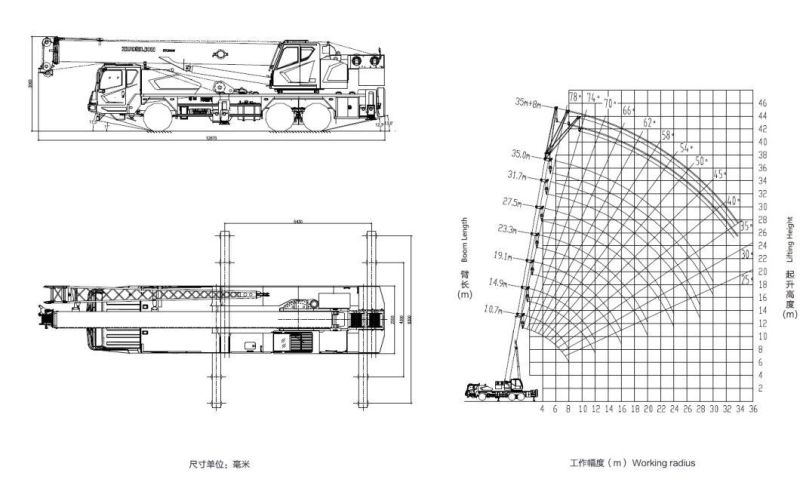

Working performanceMax. rated lifting capacitykg30000Max. load moment of basic boomkN.m1175Max. lifting height of basic boomm10.7Max. lifting height of main boomm35Max. lifting height of jibm43Working  speeds              Max. hoist rope speed(Main winch)m/min140Boom demrricking up times30Boom telescoping out times50Slewing speedr/min3.0Driving parametersMax. driving  speedkm/h85Max. gradeability%42Min. Turning diameterm≤21Min.  ground clearancemm260Oil consumption per hundred kilometersL40MassDeadweight in driving conditionkg32000DimensionsOverall  dimensions(L×W×H)mm12870×2550×3560
