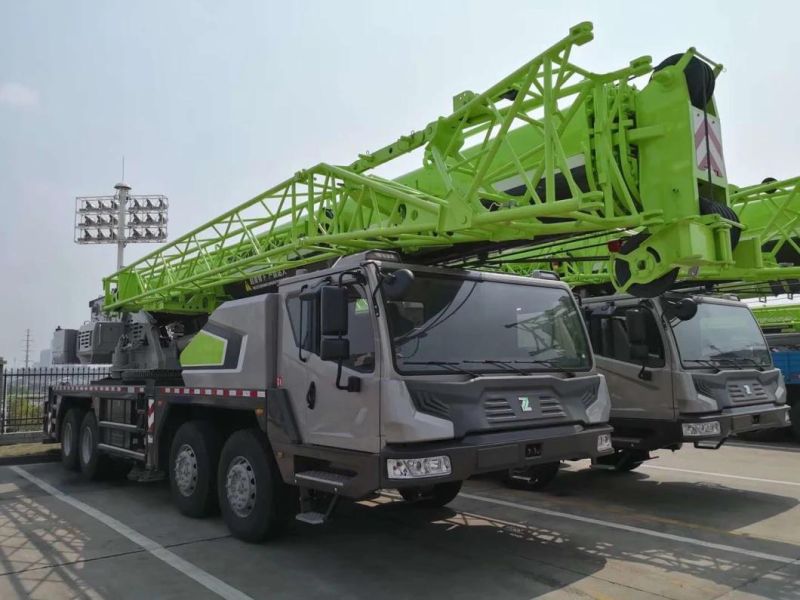

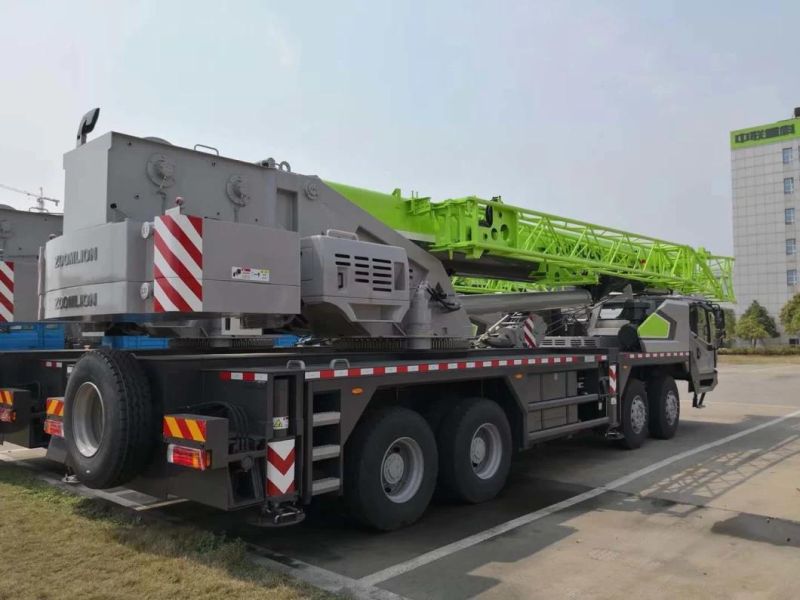

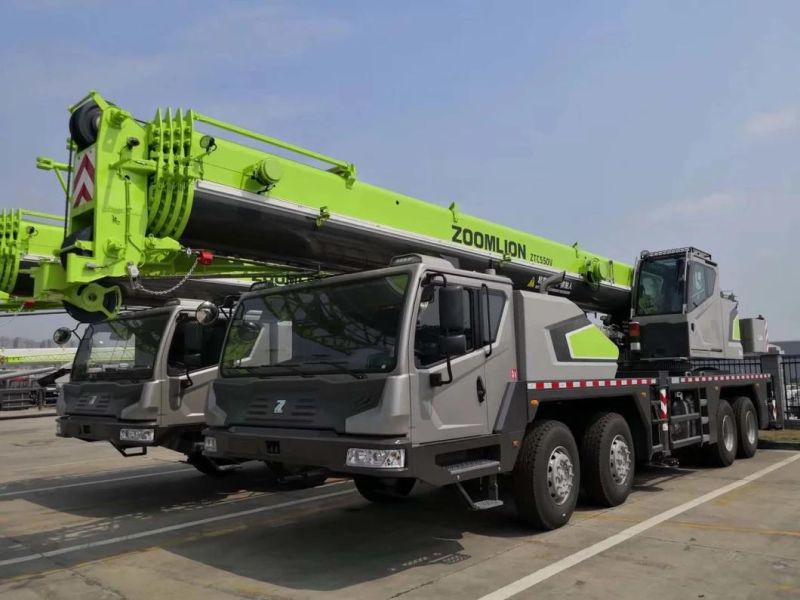

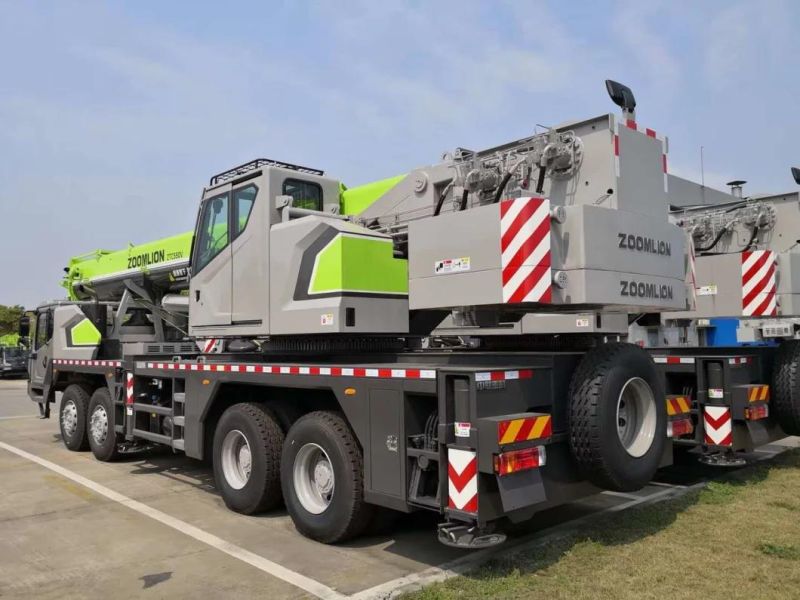

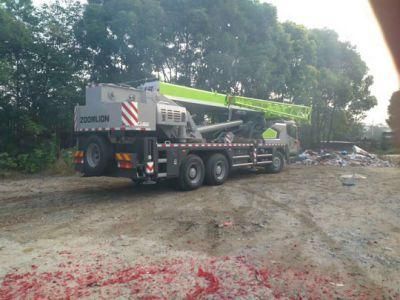

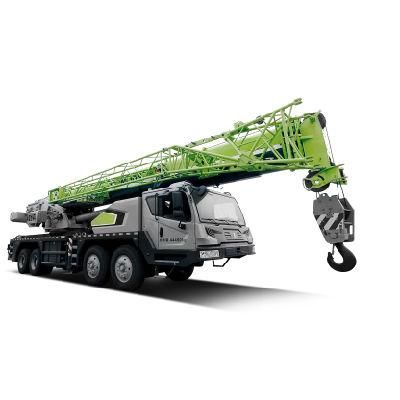

62m Boom Length Zoomlion Ztc550V552 55ton Truck Mobile Crane

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Certification：GS, RoHS, CE, ISO9001
Condition：New
Maximum Lifting Height：61.5m
Maximum Lifting Weight：55ton
Shaft Number：4
Crane Jib：Five-Arm

Base Info

Model NO.：ZTC550V552
Type：Straight Arm
Rated Loading Capacity：55ton

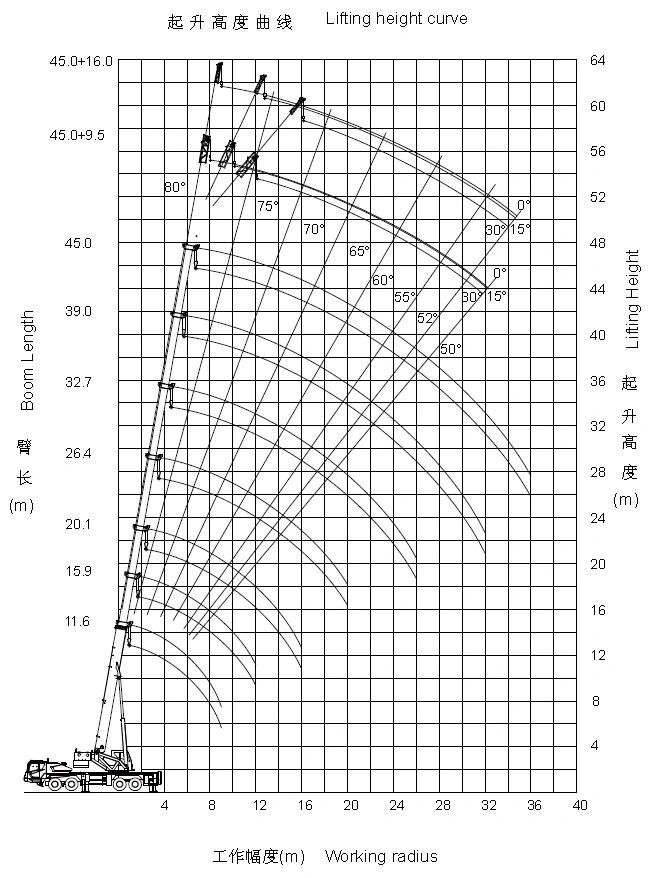

Max. Lifting Height of Jib：61.5m
Max. Load Moment of Basic Boom：2033kn.M
Engine：Wp10.375e53
Power：276kw,1900rpm
Weight：42000kg
Transport Package：Nude
Specification：55ton
Trademark：ZOOMLION
Origin：Hunan China
HS Code：87051091
Production Capacity：500unit,Month

Description

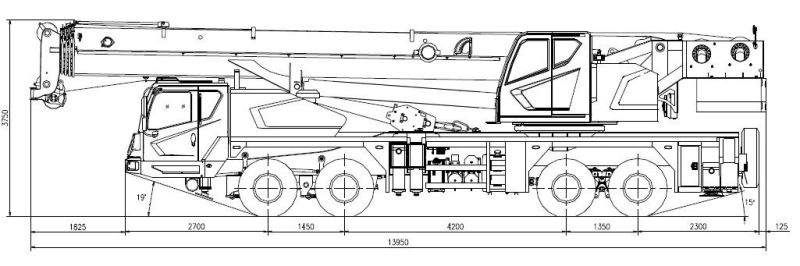

Working performanceMax. rated lifting capacitykg55000Max. load moment of basic boomkN.m2033Max. load moment of main boom(fully extended)kN.m1192Max. lifting height of basic boomm12.8Max. lifting height of main boomm45.7Max. lifting height of jibm61.5Working speeds Max. hoist rope speed(Main winch)m/min125Boom demrricking up times45Boom telescoping out times95Slewing speedr/min2.2Driving parametersMax. driving speedkm/h85Max. gradeability%47Min. Turning diameterm≤23Min. ground clearancemm285Oil consumption per hundred kilometersL43MassDeadweight in driving conditionkg42000Front axle loadkg16000Rear axle loadkg26000DimensionsOverall dimensions(L×W×H)mm13950×2800×3750Longitudinal distance between outriggersm5.92Transversal distance between outriggersmFully extended:7.10Boom lengthm11.6~45.0Jib lengthm9.5 ,16.0

62m Boom Length Zoomlion Ztc550V552 55ton Truck Mobile Crane

62m Boom Length Zoomlion Ztc550V552 55ton Truck Mobile Crane

62m Boom Length Zoomlion Ztc550V552 55ton Truck Mobile Crane

62m Boom Length Zoomlion Ztc550V552 55ton Truck Mobile Crane

62m Boom Length Zoomlion Ztc550V552 55ton Truck Mobile Crane
