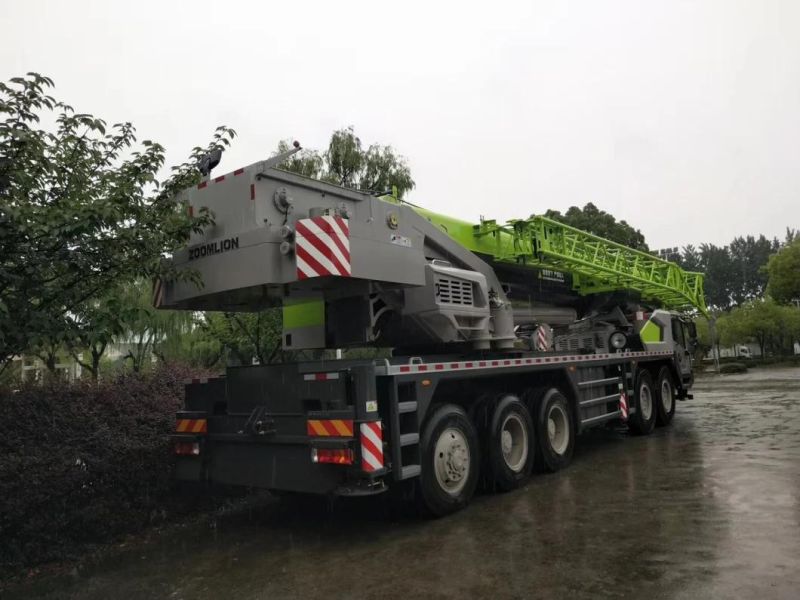

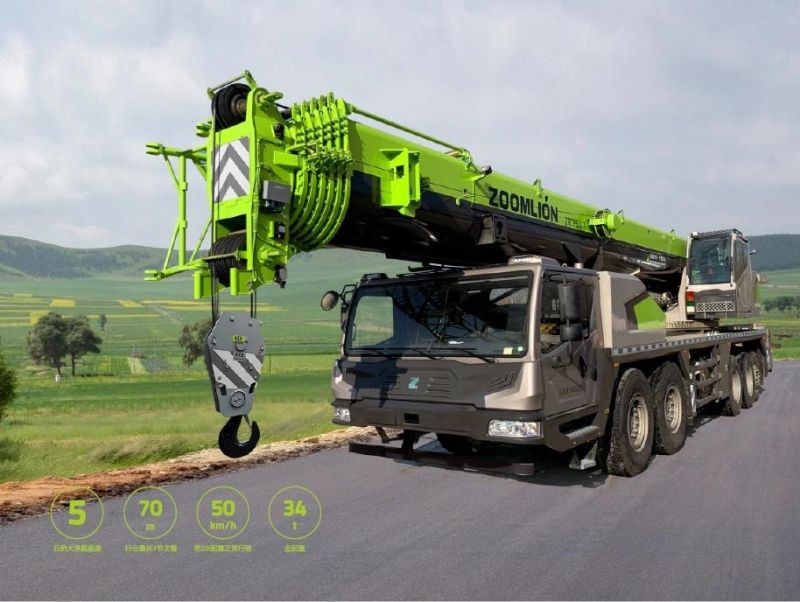

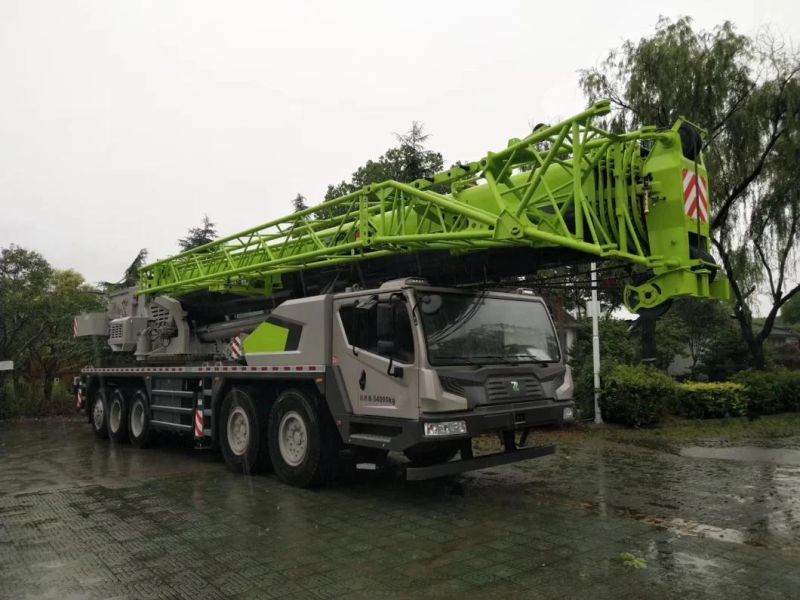

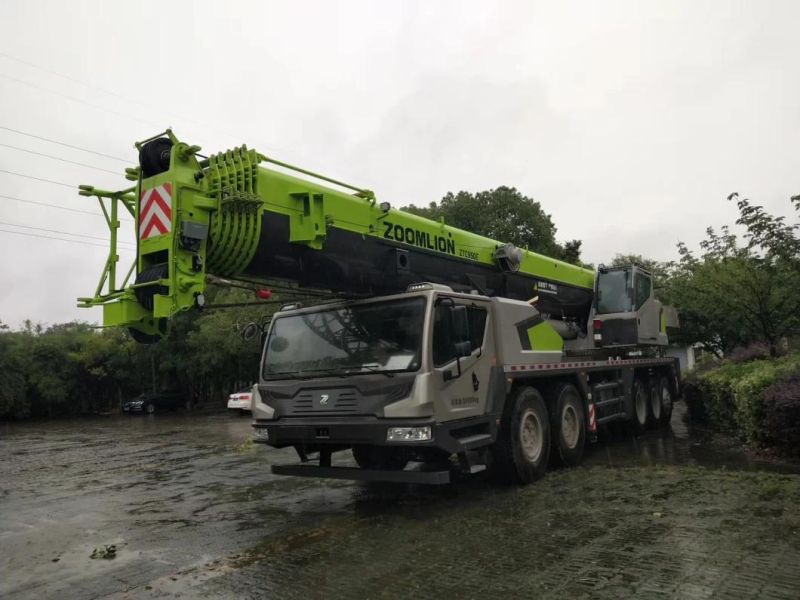

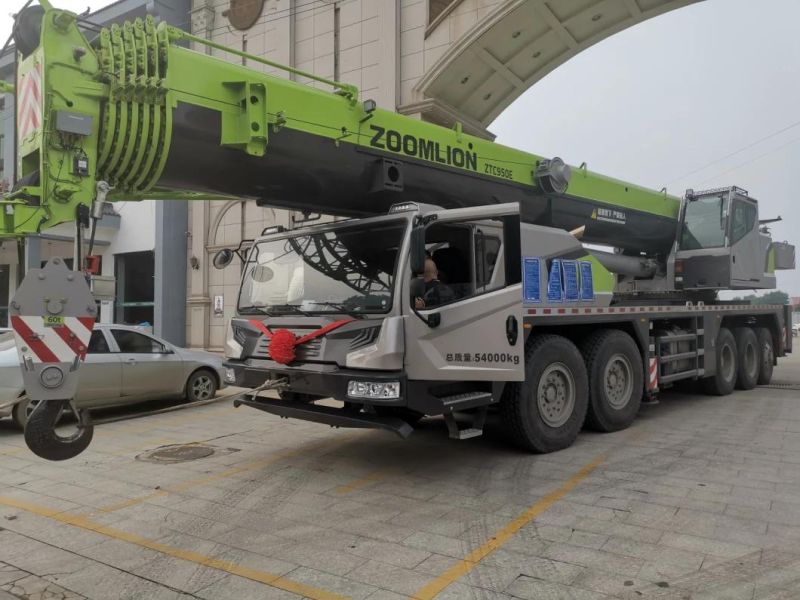

• Model NO.：ZTC950E753
• Type：Straight Arm
• Rated Loading Capacity：95ton
• Max. Lifting Height of Jib：97.8m
• Max. Load Moment of Basic Boom：3611kn.M
• Max. Lifting Height of Main Boom：70.6m
• Max. Driving Speed：90km,H
• Min. Ground Clearance：310mm
• Max. Gradeability：40%
• Total Weight：54000kg

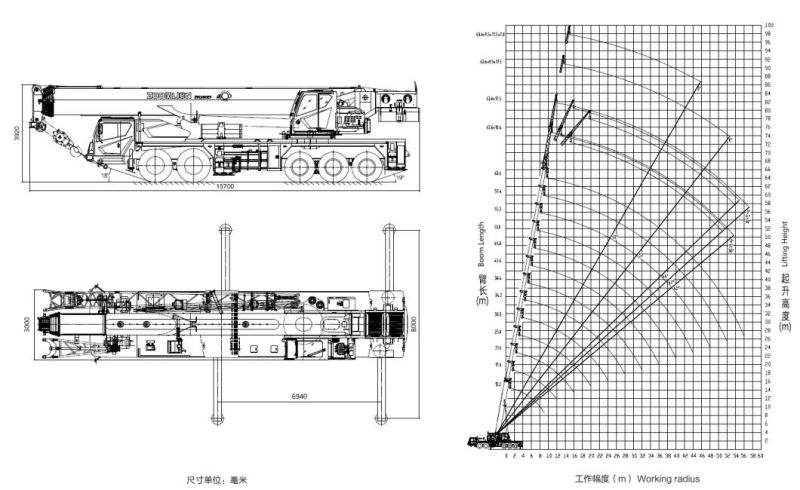

• Overall Dimensions(L×w×h)：15700*3000*3920mm
• Engine：Wp12.375e50
• Power：276kw,1900rpm
• Transport Package：Nude
• Specification：95ton
• Trademark：ZOOMLION
• Origin：Hunan China
• HS Code：87051091
• Production Capacity：500unit,Month

Working performanceMax. rated lifting capacitykg95000 Max. load moment of basic boomkN.m3611 Max. lifting height of main boomm70.6These parameters do not include deflection of main boom and jibMax. lifting height of jibm97.8Working  speeds              Max. hoist rope speed(Main winch)m/min130At 4th layerMax. hoist rope speed(Auxiliary winch)m/min110At 2nd layerBoom demrricking up times60 Boom telescoping out times750 Slewing speedr/min1.6 Driving    parametersMax. driving  speedkm/h90 Max. gradeability%40 Min. Turning diameterm24 Min.  ground clearancemm310 Oil consumption per hundred kilometersL45 MassDeadweight in driving conditionkg54000 DimensionsOverall  dimensions(L×W×H)mm15700*3000*3920 Longitudinal  distance between outriggersm6.05 Transversal distance between outriggersmFully extended:7.8 Tail slewing radiusmm4200
