• Model NO.：Zcc5200s
• Operation Weight：318 Ton
• Rated Power：318 Kw
• Transport Package：Nude Package
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：84295212
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. Zcc5200s Operation Weight 318 Ton Rated Power 318 Kw Transport Package Nude Package Trademark Zoomlion Origin Hunan, China HS Code 84295212 Production Capacity 2000PCS/Year

Product Description

Zoomlion 400 Ton Huge Duty Cycle Zcc5200s Dragline Hydraulic Crane
 Product Description

1. Powerful lifting capacity:
1) Comprehensive lifting performance is higher than products of the same tonnage;
2) Shield hoisting: main boom 24m + jib 9m, amplitude 12m, lifting weight 173t, load rate 86.7% (lifting weight 150t);
3) Hoisting of bridge columns: main boom 36m, amplitude 12m, lifting weight 176t, load rate 90.9% (lifting weight 160t);
4) Wind power hoisting: main boom 106m + jib 7m, amplitude 18m, lifting weight 80.5t, load rate 86% (lifting weight 70t).

2. Convenient and efficient disassembly and transfer:
1) The weight of the body and the left and right track frames can be completely self-assembled and unloaded, with one key to pull up and one key to thread;
2) The maximum single transport weight of the host is 40.7t, the transport width is 3m, and the transport height is 3.2m;
3) The boom can be packaged and transported.

Technical Parameters

Model	ZCC5200S
Max. lifting weight	400 ton
Max. lifting moment	2360 / 5200 t.m
Max. lifting height	102 /126 m
Wind turbine boom	106+7 m
Engine brand	Weichai
Engine power	318/1900 kw/rpm
Max. length of heavy boom	84 m
Max. length of light boom	102 / 126 m
Operation weight	318 ton
Max. shipping weight per piece	40.7 ton

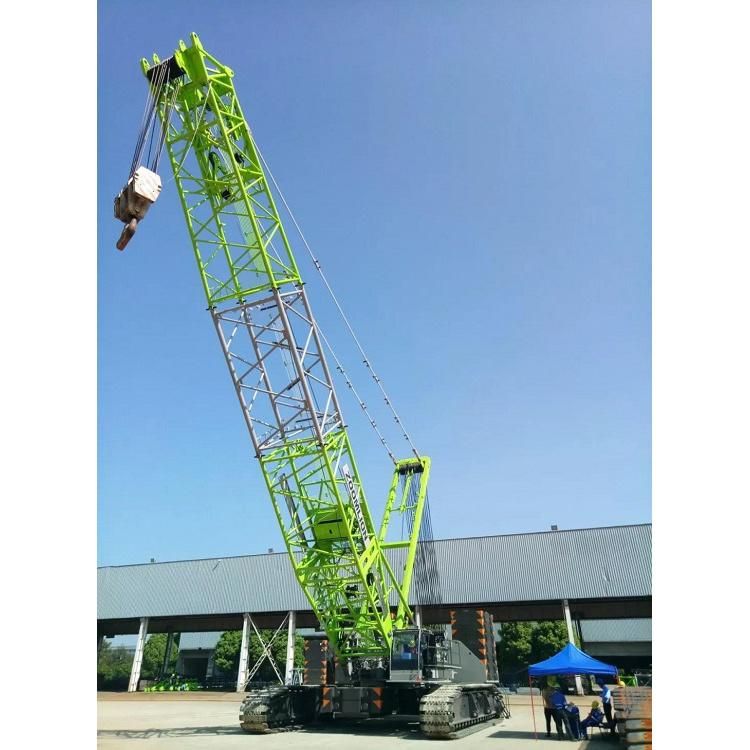

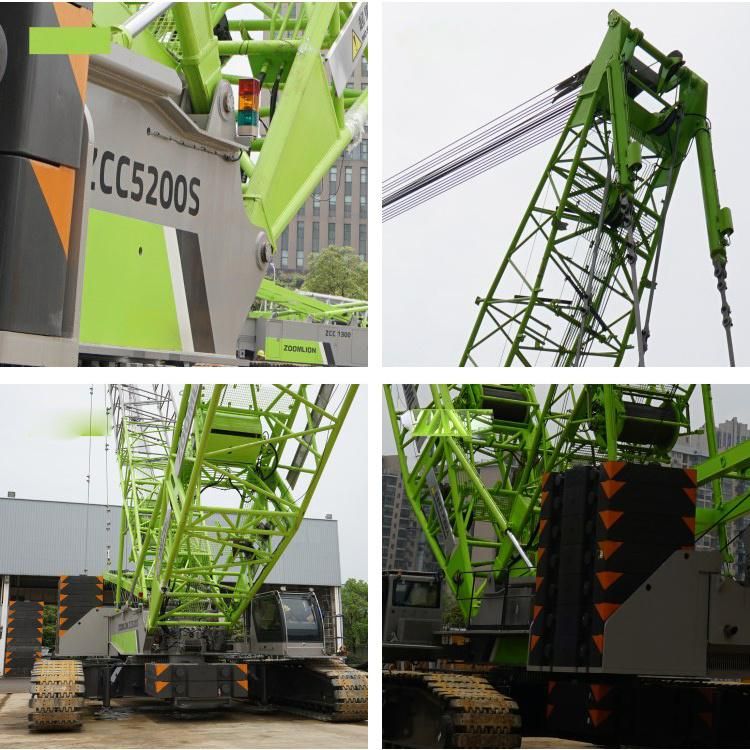

Product Pictures
