• Model NO.：SAC2200
• Type：Straight Arm
• Max. Lifting Capacity：220t
• Overall Weight：60000 Kg
• Front Axle Load：12000 Kg
• Rear Axle Load：12000 Kg
• Engine：Benz
• Rated Power：390 Kw,1800rpm
• Rated Torque：2400 N.M, 1100 Rpm
• Emission Standard：Euro III
• Max. Traveling Speed：81 Km,H
• Min.Turning Radius：10 M
• Min.Turning Radius of Boom Head：11 M
• Boom Shape：U-Shaped
• Max. Lifting Moment-Base Boom：7271 Kn.M
• Max. Lifting Moment-Full-Extend Boom：3540 Kn.M
• Max. Lifting Moment-Full-Extend Boom+Jib：952 Kn.M
• Transport Package：Nude
• Specification：,
• Trademark：Acntruck
• Origin：China, Hunan
• HS Code：8705102300
• Production Capacity：200 Units, Month

Basic Info.

Model NO. SAC2200 Type Straight Arm Max. Lifting Capacity 220t Overall Weight 60000 Kg Front Axle Load 12000 Kg Rear Axle Load 12000 Kg Engine Benz Rated Power 390 Kw/1800rpm Rated Torque 2400 N.M/ 1100 Rpm Emission Standard Euro III Max. Traveling Speed 81 Km/H Min.Turning Radius 10 M Min.Turning Radius of Boom Head 11 M Boom Shape U-Shaped Max. Lifting Moment-Base Boom 7271 Kn.M Max. Lifting Moment-Full-Extend Boom 3540 Kn.M Max. Lifting Moment-Full-Extend Boom+Jib 952 Kn.M Transport Package Nude Specification / Trademark Acntruck Origin China, Hunan HS Code 8705102300 Production Capacity 200 Units/ Month

Product Description

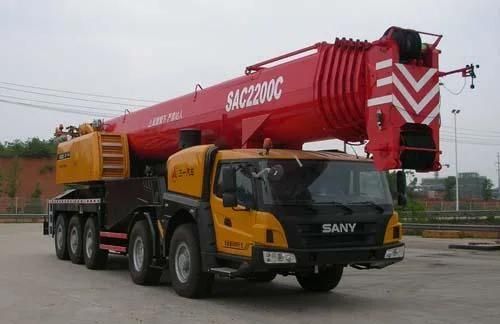

Long Service Life 220 Ton All Terrain Crane
 SAC2200 all terrain crane uses the seself-assembly and disassembly of the main and auxiliary winches, which reduce the traveling weight of the whole machine, thus improving efficiency and reducing fuel consumption.

1. Powerful Lifting Capacity
The 220 ton crane is equipped with seven section U-shaped booms made of fine-grain high-strength steel plate; the longest boom length is 103m, lifting height of 103.5m, max.lifting capacity of 220t;
0°~ 40°automatical infinite variable luffing jib is applied to ensure convenient switch over between all operating conditions with high efficiency.

2. Efficient Hydraulic System
Self-developed dual-pump converging/diversion main valve is used. Converging flow of the single-action dual-pump can be up to 520L/min, ensure fast and efficient operation. Combined-action dual-pump diversion system is applied to ensure stable controllability with independent oil supply.
Electric proportional variable displacement piston pump is used to ensure high-accurate flow control which is efficient and energy saving.

3. Excellent & Stable Chassis

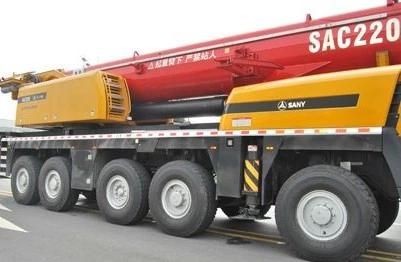

The use of innovative 5-axle chassis design and multiple braking modes provide more reliable traveling performance. With tipping early-warning technology, high stable overall operation and high safety can be achieved.

4. Intelligent Electronic Control
The adoption of internationally advanced distributed integration bus data communication network and the configuration of abundant sensing elements can achieve timely feedback of data information and monitor the overall working status in real-time. The human-computer interaction interface is used to meet customer's individual requirements.

5. Various Safe Devices
The crane's cab is made of safety glass and anti-corrosion steel plate with ergonomic design, the voice alarm, anti-rollover function and ABS are applied.

6. Lifting Expert System
The system could guide and provide lifting plan or select the best lifting plan which could ensure the stability and safety of the construction.

Capacity	Main Performance
Max. lifting capacity	Temperature range
220t	- 20 ºC ~ + 40 ºC
Dimensions	Min.lifting radius
Overall length	3 m
15530mm	Tail swing radius of superstructure
Overall width	4.85 m
3000mm	Boom section
Overall height	6
4000mm	Boom shape
Axles	U-shaped
5	Max. lifting moment-Base boom
Axle distance-1,2	7271 kN·m
2750mm	Max. lifting moment-Full-extend boom
Axle distance-2,3	3540 kN·m
1650mm	Max. lifting moment-Full-extend boom+jib
Axle distance-3,4	952 kN·m
2490mm	Length-Base boom
Axle distance -4, 5	13.5 m
1650 mm	Length-Full-extend boom
Weight	62 m
Overall weight	Length-Full-extend boom+jib
60000 kg	103.5 m
Front axle load	Outrigger span(Longitudinal/Transversal)
12000 kg	9.0 × 8.5 m
Rear axle load	Jib offset
12000 kg	0°~40°
Engine	Working Speed
Model	Max. single rope lifting speed of main winch(no load)
BENZ	130 m/min
Rated power	Max. single rope lifting speed of auxiliary winch(no load)
390 kW/1800rpm	130 m/min
Rated torque	Full extend/retract time of boom
2400 N.m/ 1100 rpm	550 / 550 s
Emission standard	Full raise/lower time of boom
Euro III	60 / 90 s
Traveling	Swing speed
Max. traveling speed	1.8 r/min
81 km/h	Aircondition
Min.turning radius	HVAC in up cab
10 m	Cooling/Heating
Min.turning radius of boom head	HVAC in low cab
11 m	Cooling/Heating
Drive train
10 × 8
Min. ground clearance
325 mm
Approach angle
20 °
Departure angle
17 °
Max. gradeability
58%
Fuel consumption per 100km
≤ 72 L
