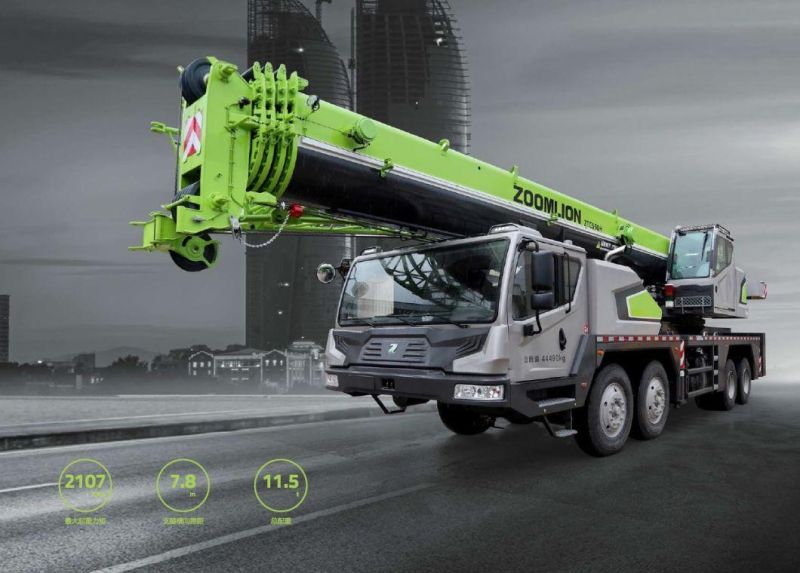

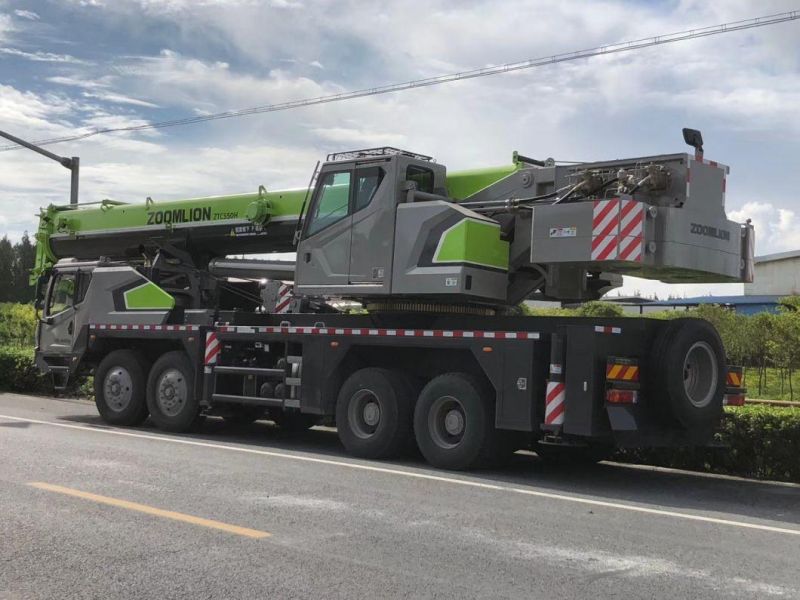

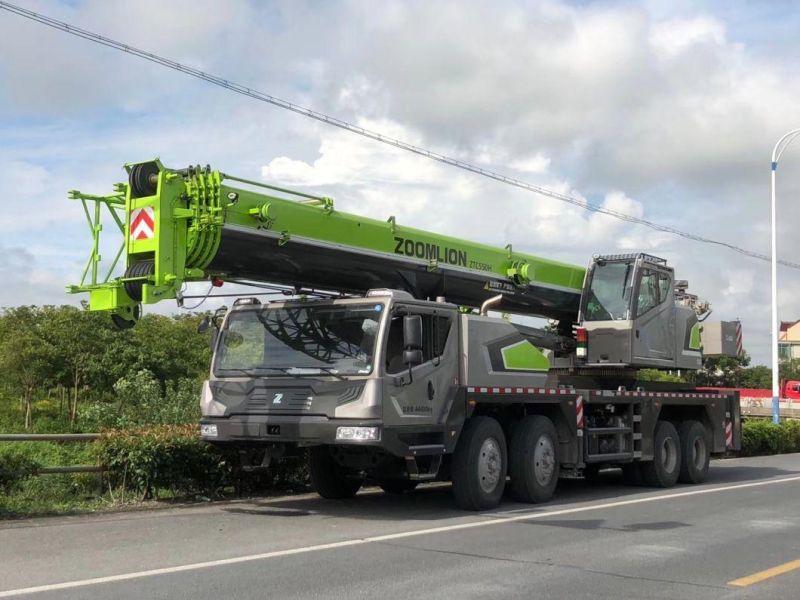

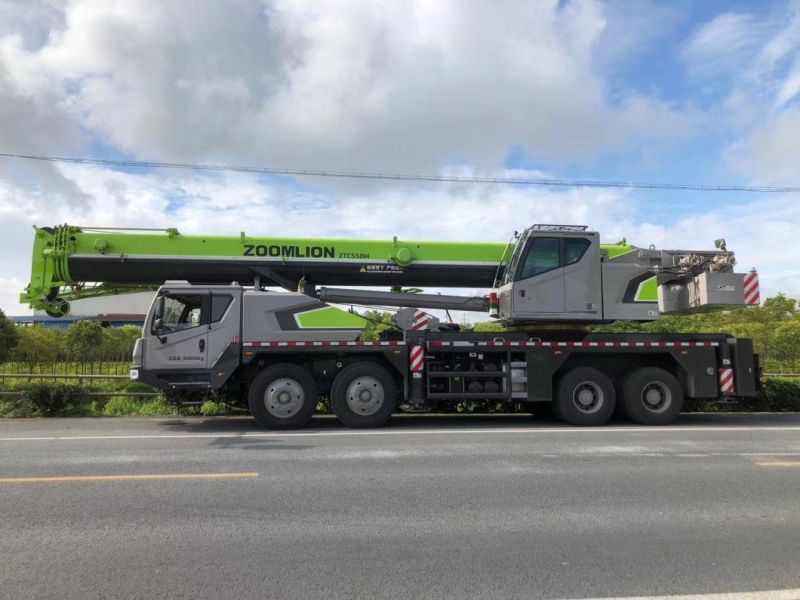

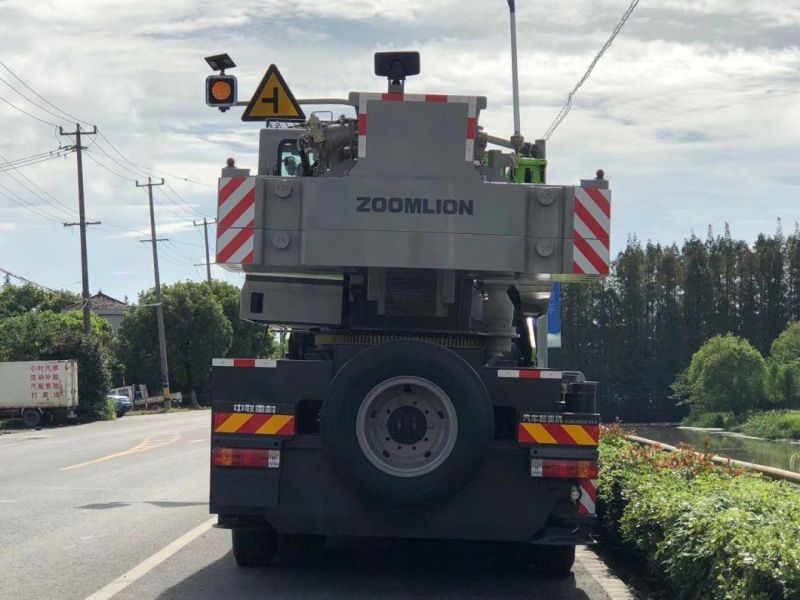

Factory Supply Zoomlion 55 Ton Truck Crane Ztc550h552 in Stock

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：62m
  • Maximum Lifting Weight：55ton
  • Shaft Number：4
  • Crane Jib：Five-Arm

Base Info

  • Model NO.：ZTC550H552
  • Type：Straight Arm
  • Rated Loading Capacity：55ton
  • Max. Lifting Height of Jib：62m
  • Max. Load Moment of Basic Boom：2170kn.M
  • Engine：Wp10.375e53
  • Power：276kw,1900rpm
  • Weight：44900kg
  • Transport Package：Nude
  • Specification：55ton
  • Trademark：ZOOMLION
  • Origin：Hunan China
  • HS Code：87051091
  • Production Capacity：500unit,Month

Description

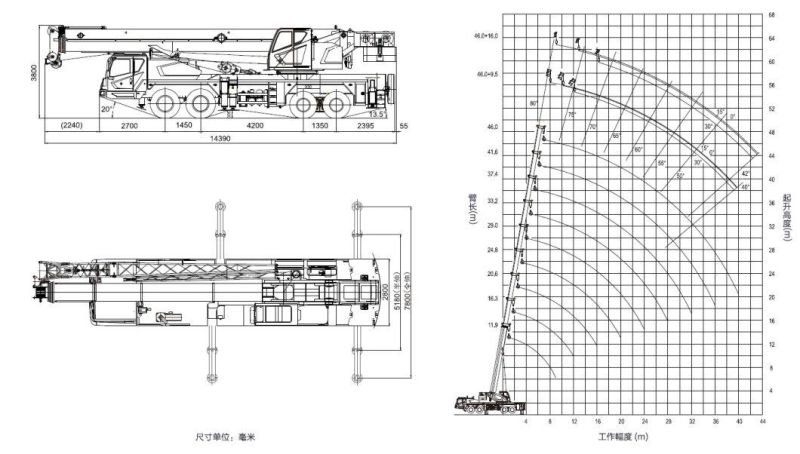

Working performanceMax. rated lifting capacitykg55000Max. load moment of basic boomkN.m2170Max. lifting height of basic boomm11.9Max. lifting height of main boomm46Max. lifting height of jibm62Working  speeds              Max. hoist rope speed(Main winch)m/min125Boom demrricking up times45Boom telescoping out times105Slewing speedr/min2.2Driving parametersMax. driving  speedkm/h90Max. gradeability%46Min. Turning diameterm≤23Min.  ground clearancemm305Oil consumption per hundred kilometersL40MassDeadweight in driving conditionkg44900DimensionsOverall  dimensions(L×W×H)mm14390×2800×3800
