300 Ton Mobile Crawler Crane Heavy Construction Crawler Crane
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Installation, Commissioning and Training
- Max. Lifting Height：-
- Rated Loading Capacity：300ton
- Condition：New
- Warranty：1 Year
- Transport Package：by Sea,Road
Base Info
- Model NO.：XGC300
- Specification：300 ton
- Origin：China
- HS Code：84264910
- Production Capacity：500,Month
Description
Basic Info.
Model NO. XGC300 Specification 300 ton Origin China HS Code 84264910 Production Capacity 500/MonthProduct Description

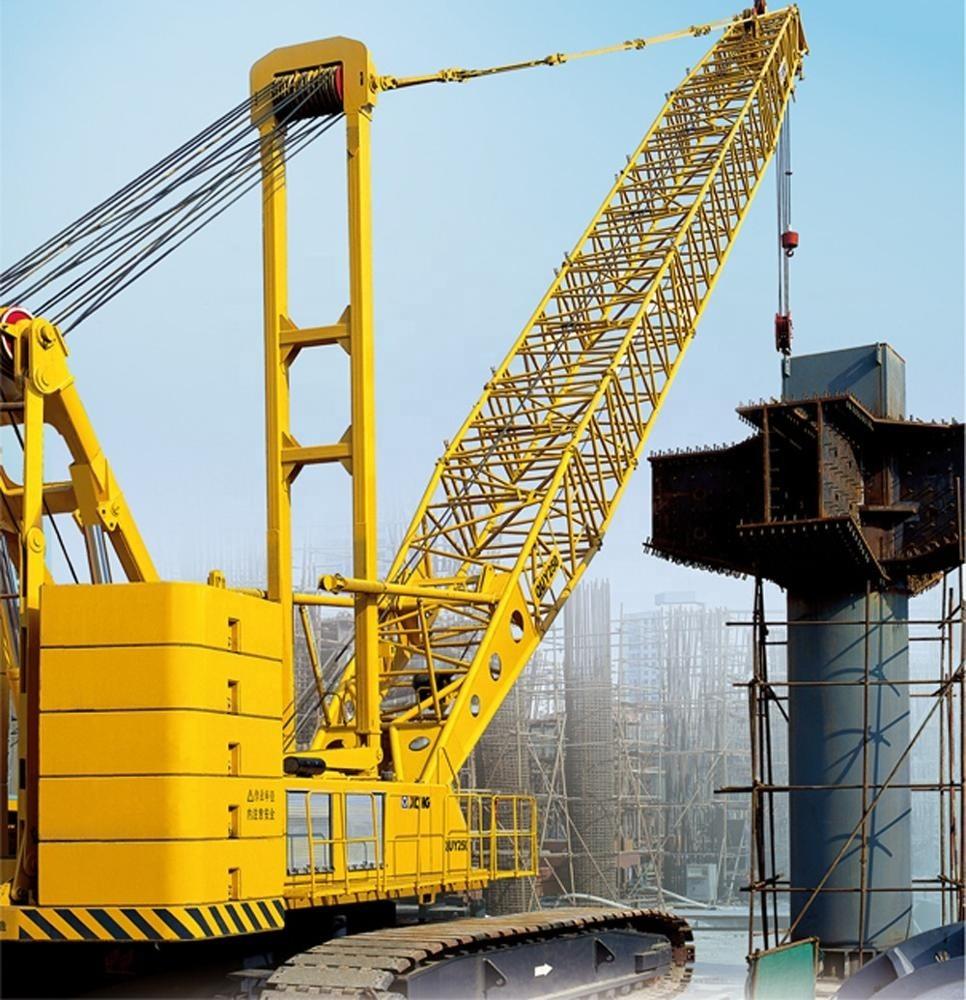

300 ton mobile crane heavy construction crawler crane Factory Price
Integrating 30 years of crawler crane design and manufacturing experience, based on the full understanding of customer's demand, a new generation crawler crane XGC300 is developed by after QUY300, the overall crane technology reaches the international-leading level.
Designed with the originally developed boom function integration technology, hierarchical load lifting technology and globally barrier free integration transport, combined with optimized lightweight high strength boom/jib section and integrated low gravity center large chassis technology, XGC300 has a good cost/performance ratio with strong lifting capacity. For customer use, it is more applicable and economical with higher safety and reliability.
XGC300 fully satisfies the requirements for metro shield lifting, wind power equipment assembly, petrochemical tower/tank installation and municipal construction. "Three in one" fixed jib working condition with highest integration level in the industry has been specially developed, make sure that it meets the low operation cost requirement of special equipment lifting.
| Item | Unit | Parameter value |
| Parameter Item | - | XGC300 |
| Operation performance parameter | * | |
| Max. rated lifting capacity for boom | (t) | 300 |
| Max. rated lifting capacity for fixed jib | (t) | 130 |
| Max. rated lifting capacity for luffing jib | (t) | 135 |
| Max. load moment | (t.m) | 1837 |
| Max. rated lifting capacity for tower jib | (t) | 135 |
| Max. rated lifting capacity for boom single top | (t) | 28 |
| Max. rated lifting capacity for special jib | (t) | 172.2(TBM jib working condition) |
| Dimension parameter | * | |
| Boom length | (m) | 24~96 |
| Boom luffing angle | (°) | -3~85 |
| Fixed jib length | (m) | 9~42 |
| Tower jib length | (m) | 24~66 |
| Max. dimension of single unit in transport state(L×W×H) | (m) | 13.5×3.0×3.3 |
| Fixed jib offset angle | (°) | 10,30 |
| Special jib length | (m) | 9~12 |
| Speed parameter | * | |
| Max. single line speed for hoist mechanism | (m/min) | 110 |
| Max. single line speed for boom luffing mechanism | (m/min) | 2×42.5 |
| Max. single line speed for jib luffing mechanism | (m/min) | 117 |
| Max. slewing speed | (r/min) | 1 |
| Max. travel speed | (km/h) | 1 |
| Grade ability | (%) | 30 |
| Mean ground pressure | (MPa) | 0.13 |
| Max. single line speed for tower jib luffing mechanism | (m/min) | 117 |
| Max. single line speed for superlift luffing | (m/min) | - |
| Engine | * | |
| Model | - | WP12G460E300 |
| Engine power | (kW) | 338 |
| Emission | - | National III |
