• Model NO.：SCC600A
• Max Lifting Moment：222t.M
• Type：Cantilever

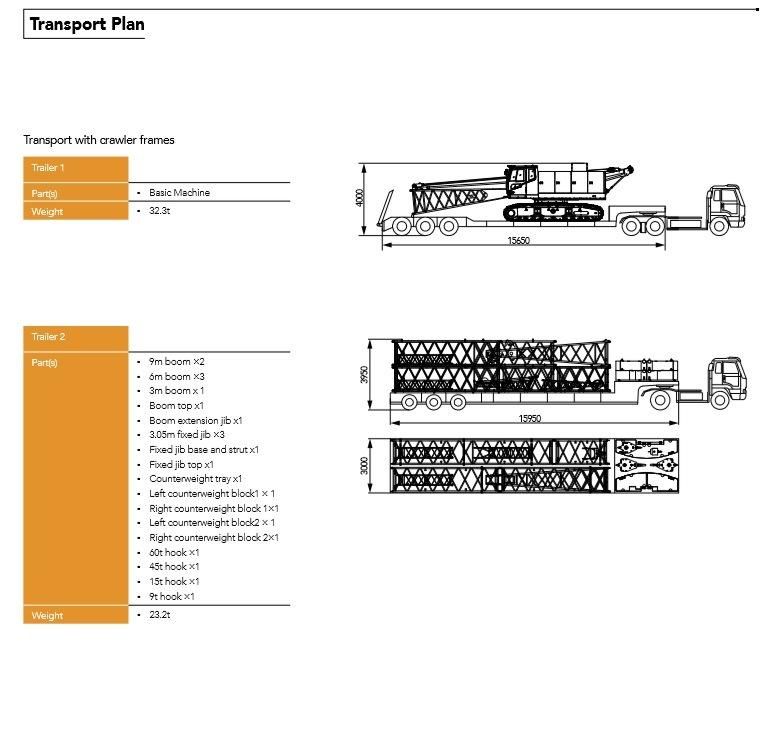

• Transport Package：Roro

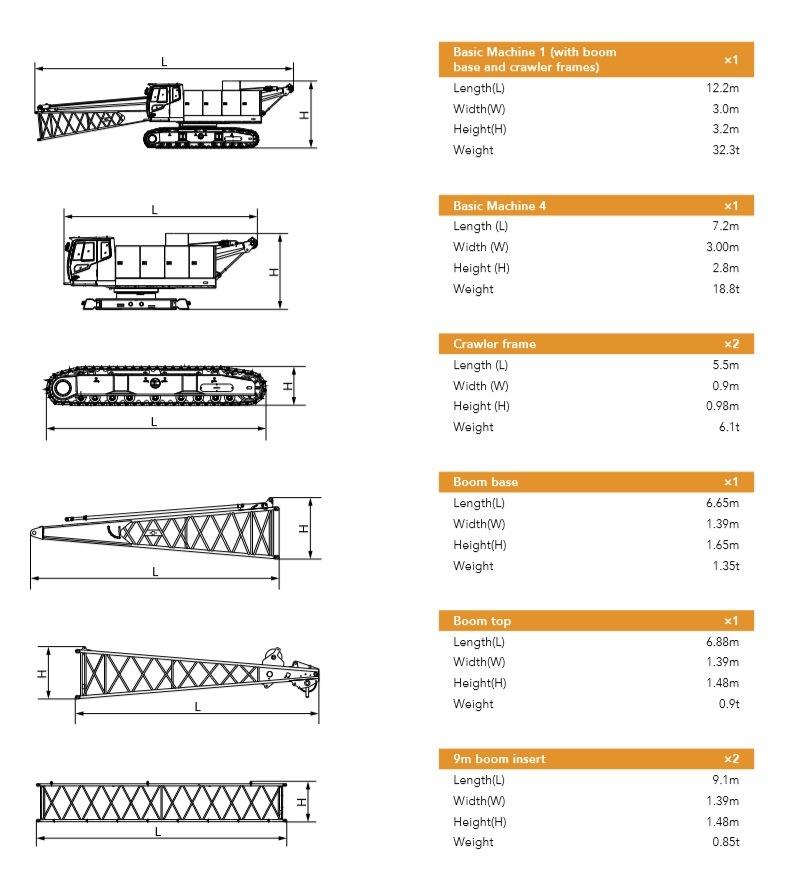

• Specification：12200*3000*3300mm
• Trademark：SINOMADA
• Origin：Hunan, China
• Production Capacity：1000 Pieces,Per Month

Basic Info.

Model NO. SCC600A Max Lifting Moment 222t.M Type Cantilever Transport Package Roro Specification 12200*3000*3300mm Trademark SINOMADA Origin Hunan, China Production Capacity 1000 Pieces/Per Month

Product Description

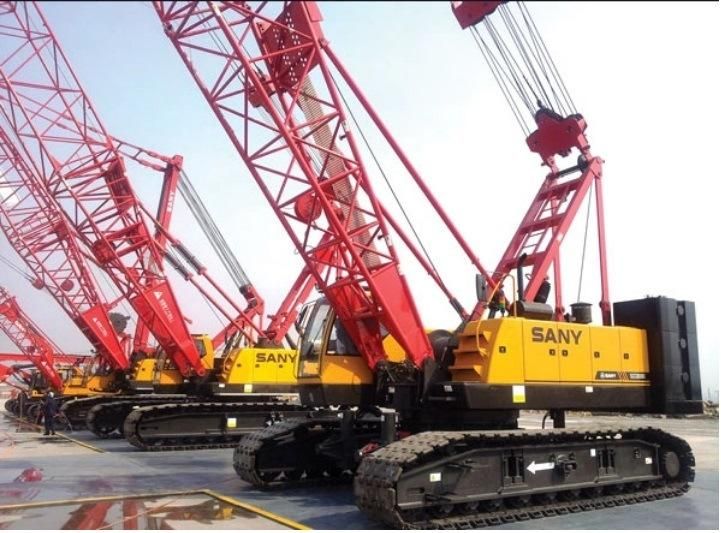

China SCC600A Crawler Crane 60t Crawler Crane for Sale

Engine

▪ Model: ISUZU 6HK1 Diesel engine;

▪ Type: 4-stroke, water-cooled, vertical in-line 6 cylinders, direct

injection, turbo-charger, intercooler, complied with European

Off-way Tier III Emission Standard and Chinese Off-way Tier III

Emission Standard;

▪ Displacement: 7.79L;

▪ Rated power: 212kW/2000rpm;

▪ Operation power: 200kW/1800rpm;

▪ Max. Torque: 1080N·m/1500rpm;

▪ Starter: 24V-5.0kW;

▪ Radiator: fin type aluminum plate core;

▪ Air cleaner: Dry type system with main filter element, safety

element and resistance indicator;

▪ Throttle: Grip type hand throttle, electrically-controlled;

▪ Fuel filter: Replaceable paper element;

▪ Batteries: Two 12V×180Ah capacity batteries, connected in

series;

▪

Electrical Control System

▪ Self-developed SYIC-II integrated control system is adopted with

higher integration, precise operation and reliable quality;

▪ Control system consists of power system, engine system,

main control system, LMI system, auxiliary system and safety

monitoring system. CAN BUS is used for data communication

between controller, monitor and the engine;

▪ Monitor: the working parameters and status are shown on the

monitor, such as the engine speed, fuel volume, engine oil

pressure, servo pressure, wind speed, engine working hours,

lifting conditions and boom angle.

Hydraulic System

▪ Main pumps: three open variable displacement piston pumps

are adopted to provide oil supply for main actuators of main

machine;

▪ Gear pump: two types of gear pump for radiator and control

circuit;

▪ Control: main pump adopts electrically-controlled positive

flow control; winch motor adopts limitless adjustable piston

motor of variable displacement. The operating components

are three parallel hydraulic handles, one dual handle for travel

and one cross hydraulic handle, to control various actuators

proportionally;

▪ Way of cooling: heat exchanger, fan core and multi-stage

cooling;

▪ Filter: large flow, high precision filter, with bypass valve and

transmitter, which can remind the user to replace the filter

element in time;

▪ Max. pressure of system: 32MPa;

▪ Main/aux. load hoist and travel system: 32MPa;

▪ Swing system: 32MPa;

▪ Control system: 5MPa;
