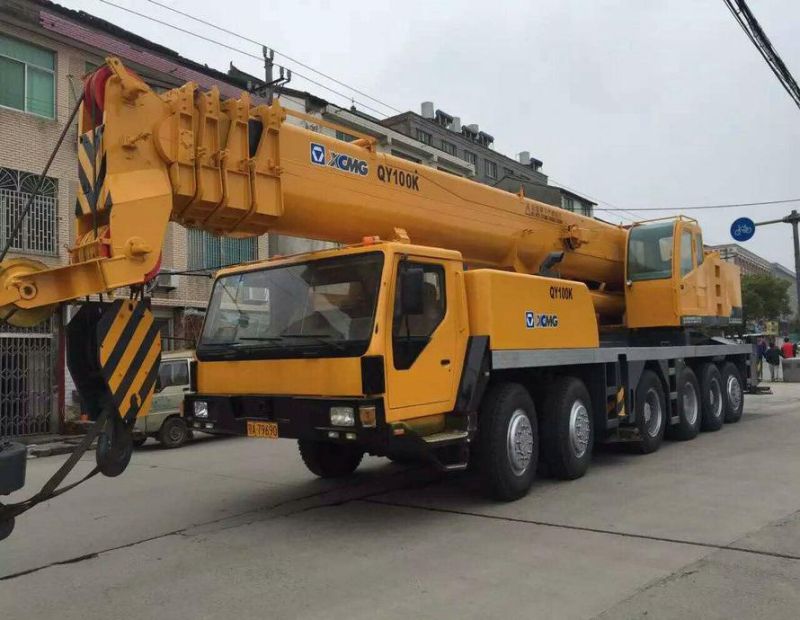

• Model NO.：QY100K
• Type：Straight Arm
• Transport Package：Roro,Container
• Trademark：Top brand
• Origin：China
• HS Code：87051091
• Production Capacity：500,Month

DimensionUnitQY100K-IOverall length, width, heightmm15600×3000×3850Wheel basemm1420+2420+1800+1420+1505Weight  Total weight in travelkg54900   58000Axle load  Axle 1kg7500    7500Axle 2kg7500    7500Axle 3kg8300    10000Axle 4kg12000    12500Axle 5kg12000    12500Axle 6kg7600       8000Power  Engine rated powerkW/(r/min)360/1800 (306/1900)Engine rated torqueN.m/(r/min)2200/1300 (2010/1200)Engine rated speedr/min1800 (1900)Min. ground clearancemm310Travel  Approach angle°20Departure angle°14Braking distance (at 30km/h)m≤10Max. grade ability%40Min. turning diameterm24Fuel consumption for 100kmL70Main performanceMax. rated total lifting capacitym100Min. rated working radius 3Turning radius at turntable tail  Counterweightmm4200Aux. winchmm4590Max. lifting torque 3450Base boomkN.m3450(4m×88t)Fully extended boomkN.m1950(24m×7.1t)Fully extended boom+ jibkN.m1230(19.2m×6t)Outrigger span (full extension)  Longitudinalm7.56Lateralm7.6Lifting height  Base boomm13.5Fully extended boomm50.9Fully extended boom+ jibm70.4Boom lengthm13.5Fully extended boomm51Fully extended boom+ jibm51+18.1+4Working speed  Jib setting angle°0,15,30Boom luffing times75Boom  Boom telescoping time  Full extensions160Max. swing speedr/min2Outrigger extension/retraction time  Outrigger beam in extension/retractions25/15Outrigger jack in extension/retractions45/25Lifting speed (single rope, layer 4)  Main winchm/min105Aux. winchm/min104
