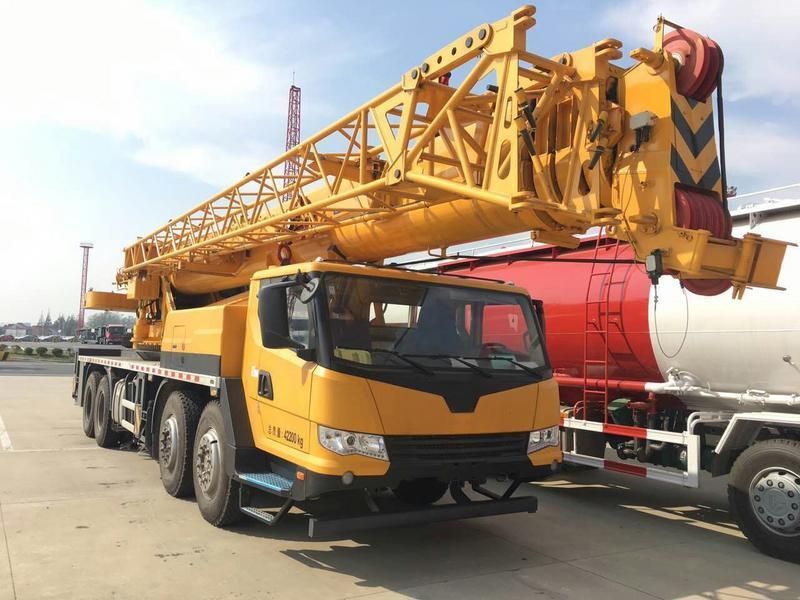

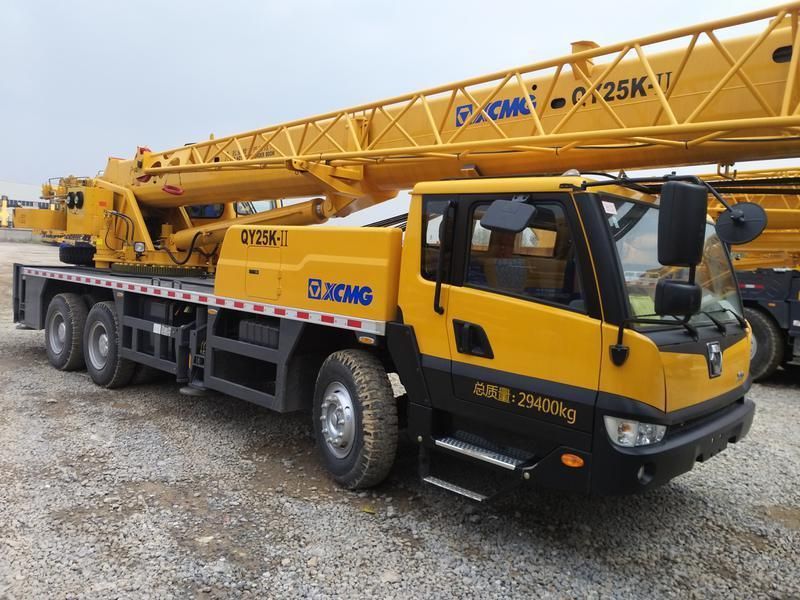

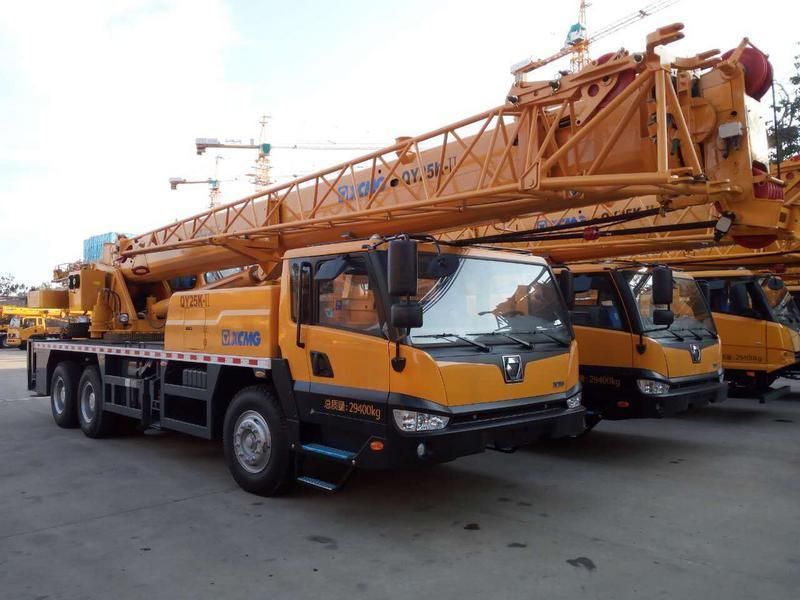

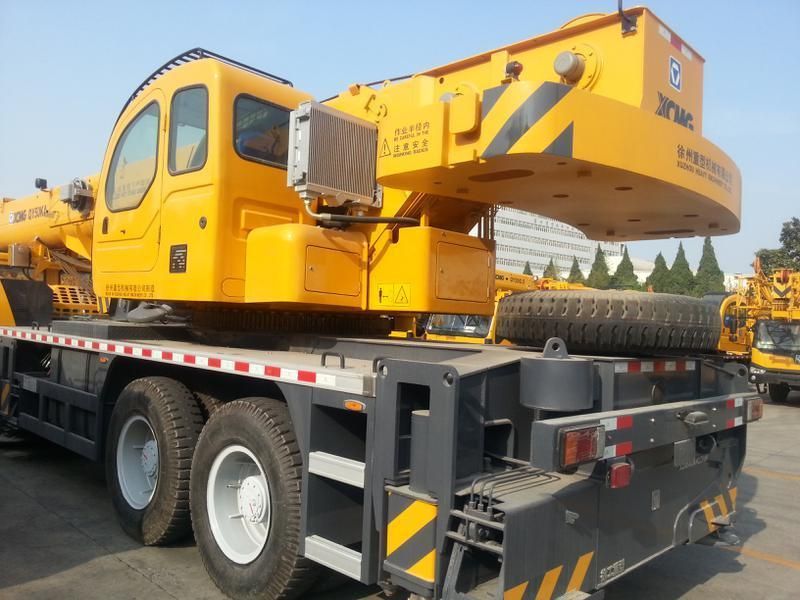

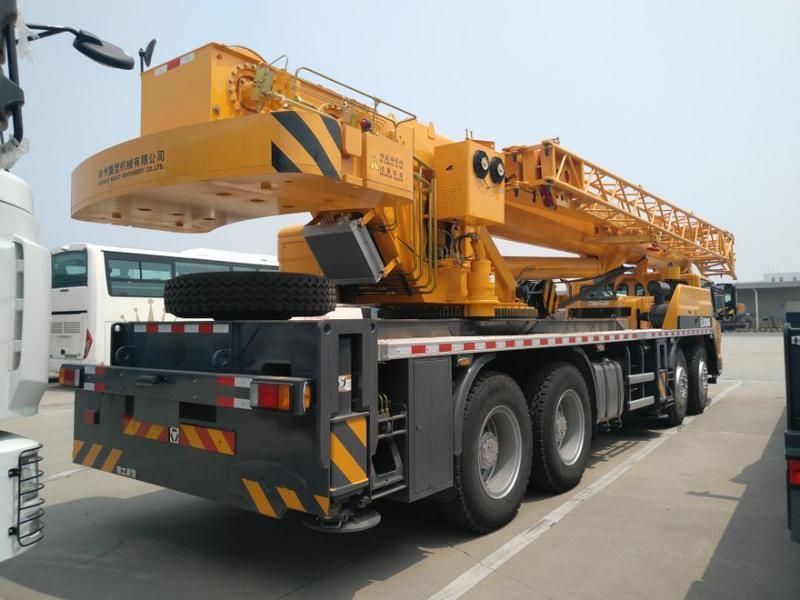

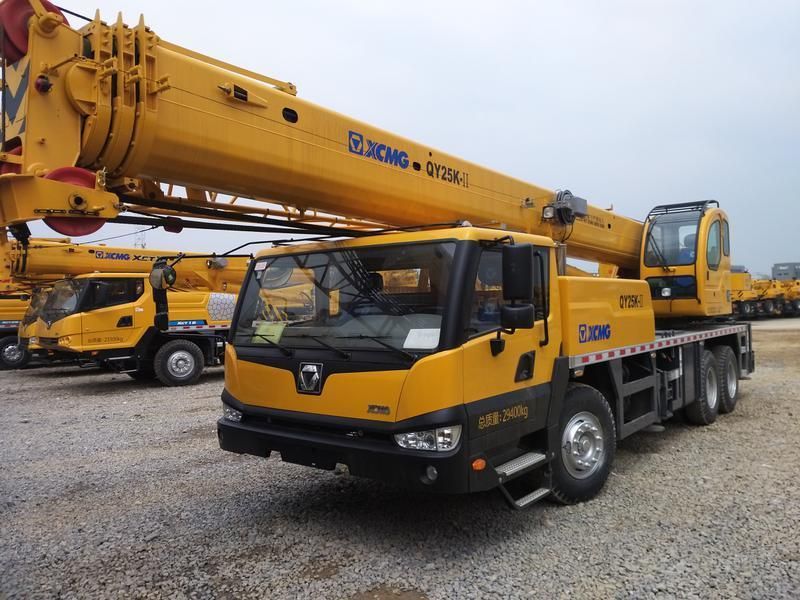

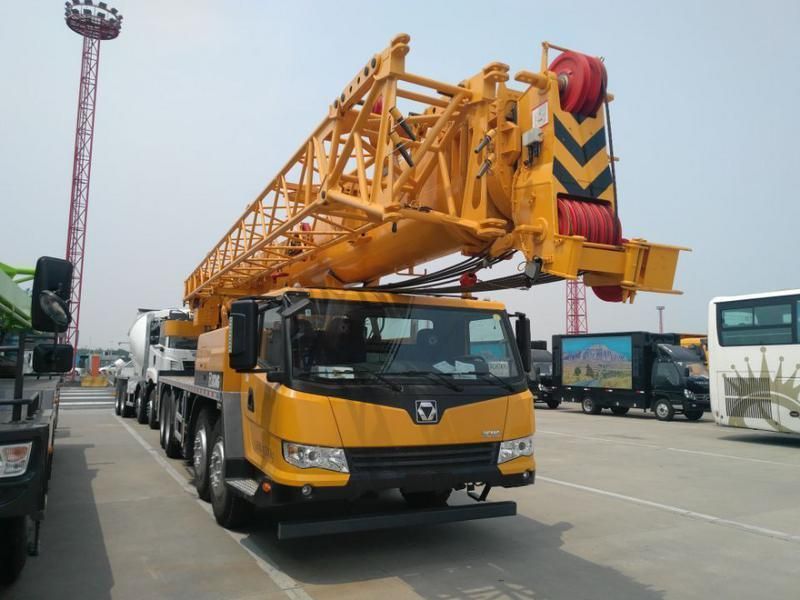

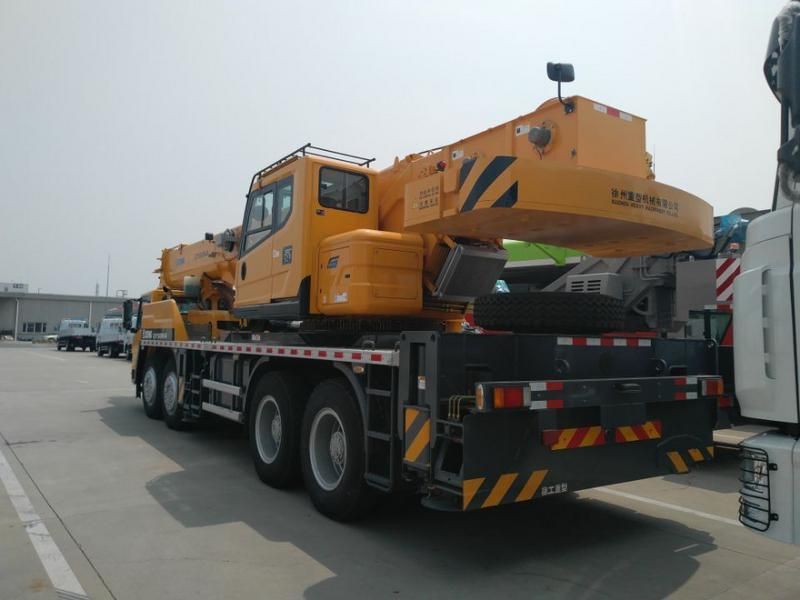

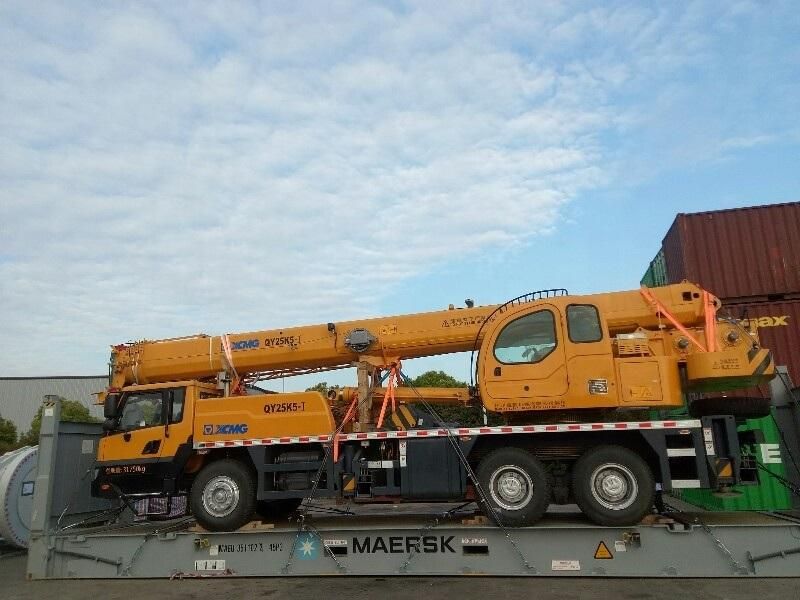

Xuzhou Factory 25 Ton Truck Cranes Qy25K-II with Factory Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Installation, Commissioning and Training
- Warranty：4000hours
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：25t
Base Info
- Model NO.：QY25K-II
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Straight Arm
- Transport Package：Roro,Container
- Trademark：Top brand
- Origin：China
- HS Code：87051091
- Production Capacity：500,Month
Description
Dimension
Unit
Overall length
mm
12650
Overall width
mm
2500
Overall height
mm
3380
Weight
Total weight in travel
kg
29400
Front axle load
kg
6200
Rear axle load
kg
23200
Power
Engine model
SC8DK280Q3 / WD615.329(domestic III)
Engine rated power
kW/(r/min)
206/2200 213/2200
Engine rated torque
N.m/(r/min)
1112/1400 1160/1400
Travel
Max. travel speed
km/h
75
Min. turning diameter
m
21.5
Min. ground clearance
mm
275
Approach angle
°
16
Departure angle
°
13
Max. grade ability
%
30
Fuel consumption for 100km
L
≈37
Main performance
Max. rated total lifting capacity
t
25
Min. rated working radius
mm
3000
Turning radius at turntable tail
m
3.065
Max. lifting torque
kN.m
1010
Base boom
m
10.7
Fully extended boom
m
34.19
Fully extended boom+jib
m
42.15
Longitudinal outrigger span
m
5.14
Lateral outrigger span
m
6
Working speed
Boom luffing time
s
75
Boom full extension time
s
100
Max. swing speed
r/min
≥2.5
Max. speed of main winch (single rope)
m/min
≥120
Max. speed of aux. winch (single rope)
m/min
≥120
