• Model NO.：EMH1
• Main Girder Form：Single Girder
• Feature：Small Gantry Crane
• Capacity：500kg-5t
• Span：3-9m
• Adjustable Lifting Height：3-9m
• Power Supply：380V,50Hz,3p, Can Be Customized
• Transport Package：Strong Wooden Box
• Specification：CE
• Trademark：LYFOOCRANE
• Origin：Beijing, China
• HS Code：84261930
• Production Capacity：5000 Units Per Year

Basic Info.

Model NO. EMH1 Main Girder Form Single Girder Feature Small Gantry Crane Capacity 500kg-5t Span 3-9m Adjustable Lifting Height 3-9m Power Supply 380V/50Hz/3p, Can Be Customized Transport Package Strong Wooden Box Specification CE Trademark LYFOOCRANE Origin Beijing, China HS Code 84261930 Production Capacity 5000 Units Per Year

Product Description

EMH Adjustable Manual Gantry 1000kg~20t

Features:
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Most energy-saving

Workplace:

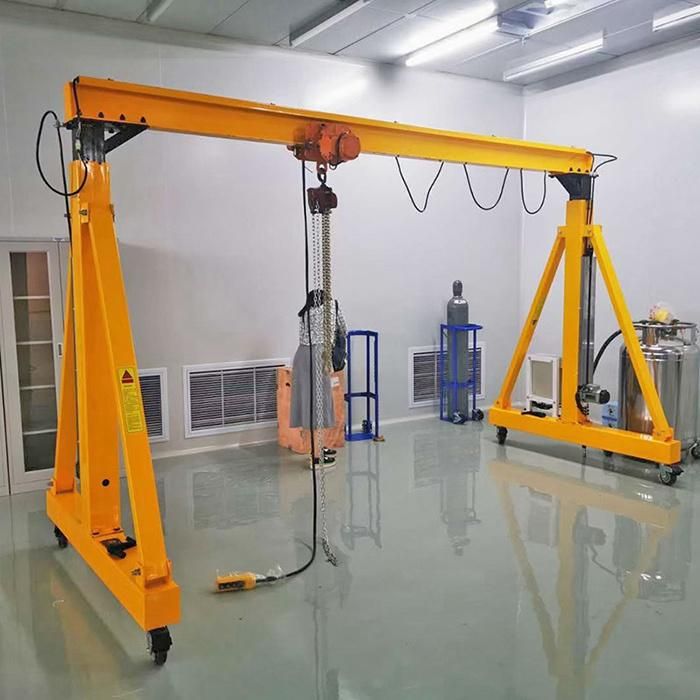

Assembly workshop, manufacturing plant, warehouse, laboratory room, maintenance plant,
Freight station, repair shops, machine tool processing workshop, mold assembly, research laboratory, warehouse, auto repair factory, especially suitable for customers with load walking conditions.In many places, especially some confined place, where the general overhead crane or gantry crane is not applicalbe, the manual gantry crane is a very useful sololution.  It is a light duty, easy installation, easy operation equippment.

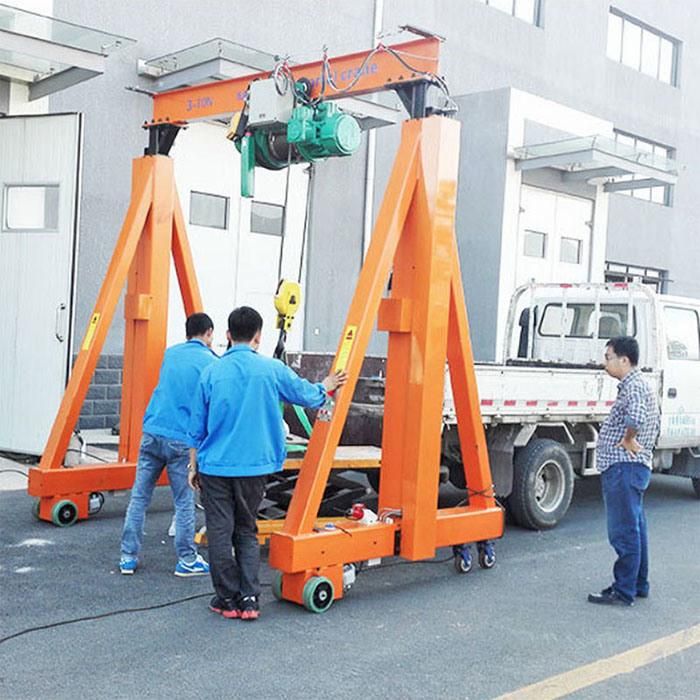

Non-Rail Travelling
It is designed with rubber wheel ,by which, it can run on concrete floor.  The universal wheel on front can lead the gantry to any point by any direction.  The driving wheels can be electrical or manual type according to the site situation.

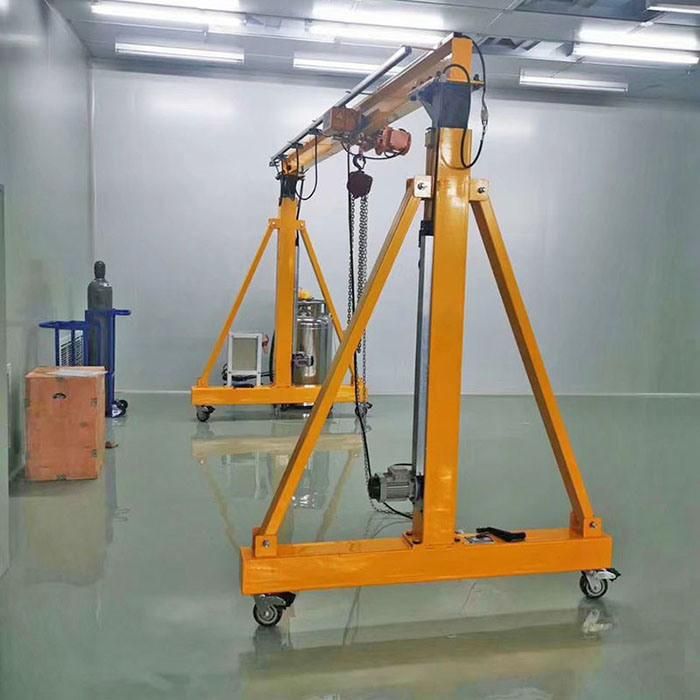

Beam Height Adjusted
The beam height can be rasied to different height.  It is very useful when certain area has some low roof.  As a result, you do not have to buy different cranes or tools. We provide 3 type of height adjusted gantry: Lever raising; Winch raising and Turbine raising model.

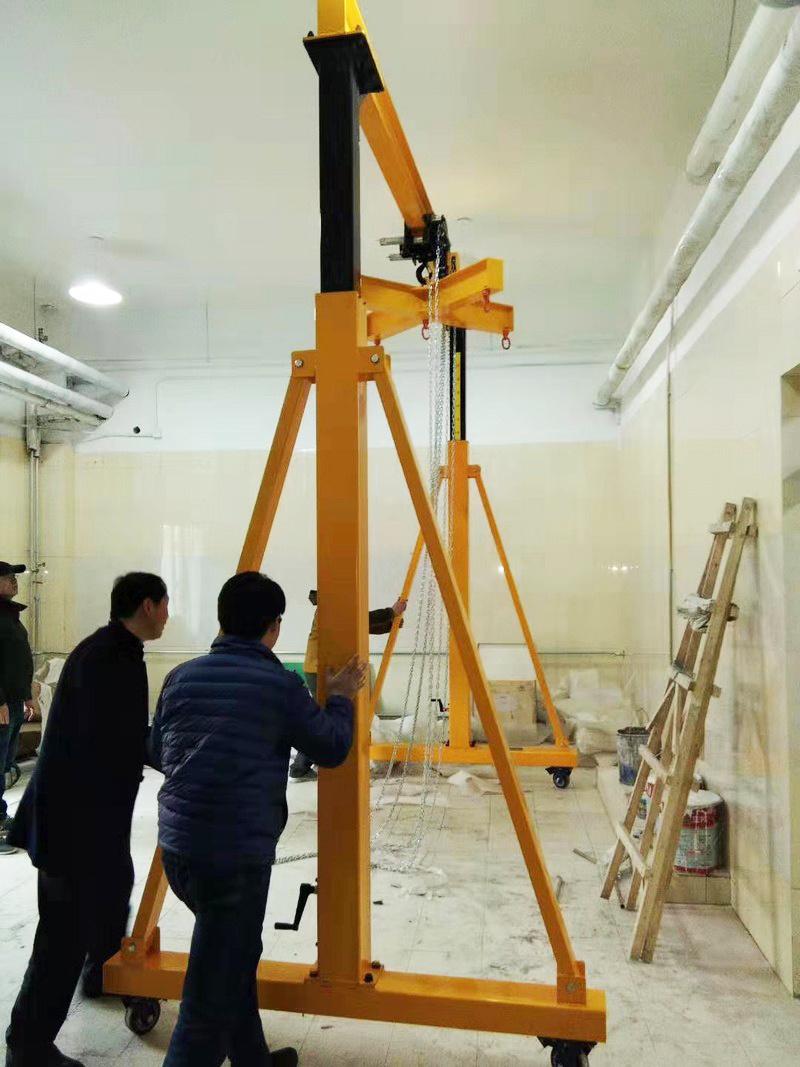

Assemble and Disamemble

1. Bolt connection
All loose parts are connected by high-strength bolts. 2 worker can assemble them at site easily.

2. Nut embeded design
Ground beam has a nut embeded designing.  This makes the assemble work very simple.  All bolts and nuts are matched perfectly.

3. Span alternative
Clinet can order differnet span of beams to meet the same legs.  It can be assembled according to different working site.

4. Other features
Heavy-Duty Casters: Four-position, swivel-lock casters with moldon polyurethane wheels for excellent floor protection.

Technical Parametre


Type	Capacity(t)	Height(m)	Span(m)	Beam(mm)
EMH-0.5	0.5	3-9m	3-9m	140
EMH-1	1	3-9m	3-9m	160
EMH-2	2	3-9m	3-9m	160

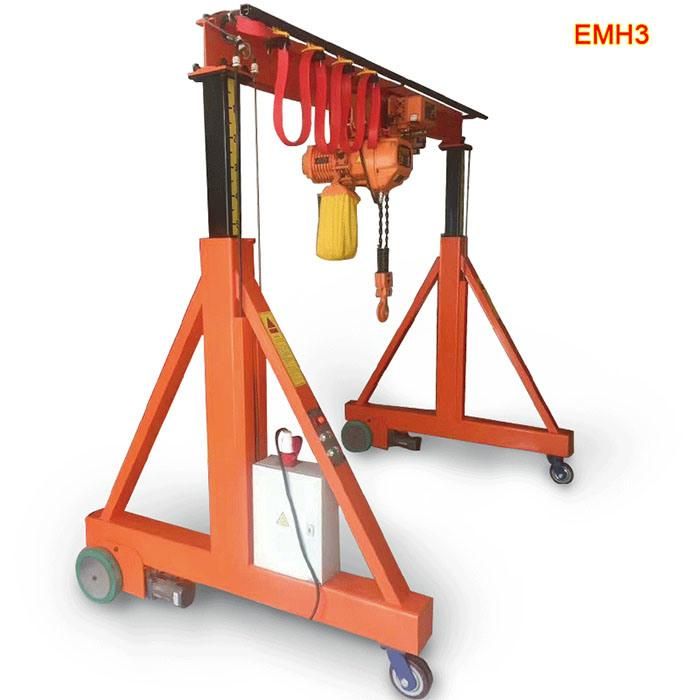

EMH-3	3	3-9m	3-9m	200
EMH-5	5	3-9m	3-9m	250

Advantages:
Trackless electric running. Can be free to turn, load-assisted walking, drive with clutch, electric manual convertible
