5610 Flat Top Tower Crane 6ton Crane Towers Construction Equipment

SHANDONG TAVOL MACHINERY CO., LTD.
  • Certification：GS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：100-150m
  • Maximum Lifting Weight：6t
  • Installation：Assembled
  • Moving Type：Fixed

Base Info

  • Model NO.：QTZ80-5610
  • Type：Top-Slewing Crane
  • Application：Building, Construction
  • Rated Max.Load：6ton
  • Rated Tip Load：1.0ton
  • Free Standing Height：40m
  • Max.Lifting Height：130m
  • Span：56m
  • Mast Section：1.6mx1.6mx2.5m
  • Electric：Schneider
  • Warranty：14 Months From The B,L Date
  • Brand：Tavol
  • Transport Package：40hc Container
  • Specification：SGS ISO BV
  • Trademark：Tavol
  • Origin：Shandong, China
  • HS Code：84262000
  • Production Capacity：200sets,Year

Description


Series
QTZ80
Standard Model
5610
Max. Lift Load
6t
Tip Load1.0t
Free Standing Height40m
Max.Anchorage Height140m
Jib Length
56m
Mast size
1.833m×1.833m×2.5 mm
Lift Mechanism
Lifting Speed
(a=2) 80/40/8 m/min
(a=4) 40/20/4 m/min
Lift motor
24/24/5.5 kw
Wire rope diameter
12.5 mm
Trolley Mechanism
Trolley speed
48/24 m/min
Trolley Motor
2.2/3.3 kw
Slewing Mechanism
Slewing Speed
0~0.65 r/min
Slew Motor
3.7 kwX2
Jacking Mechanism
Jack Climbing Speed
0.58 m/min
Jack Climbing motor7.5 kw
Power
380V/50Hz/3P
Luxury Operate Cabin,Schneider Electric PartsQTZ80551355m1.3645m/17 mast1.75×1.75×2.5601060m1.0640m/13 mast1.6×1.6×2.5601060m1.06 or 845m/15 mast1.83×1.83×2.5QTZ125601560m1.58 or 1050m/17 mast1.83x1.83x2.5QTZ160651665m1.61050m/17 mast1.83x 1.83x 2.5QTZ250703070m31250m/13mast+7m foundation2.0x2.0x3.0QTZ250703070m31651.5m2.0x2.0x2.99QTZ315704070m41661.5m2.0x2.0x2.99QTZ315704070m41850m/13mast+7m foundation2.0x2.0x3.0

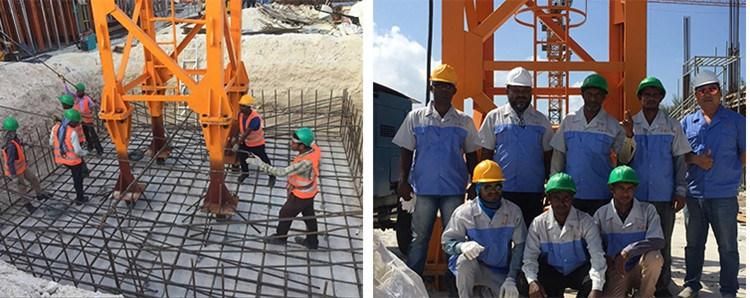

After-sales service:
1- One year warranty for whole machines.
2- Providing free quick-wear part.
3- Low charge for continue maintenance when warranty is expired.
4- Exclusive engineer support at any time.
5- We can provide free training to end-users.
5610 Flat Top Tower Crane 6ton Crane Towers Construction Equipment
5610 Flat Top Tower Crane 6ton Crane Towers Construction Equipment


FAQ
Please supply more detail to us:

1. Building height or tower crane working height.
2. Working range or jib length
3. Max load capacity and tip load capacity.
4. Other Special requirements
