Electro Lifting Magnet for Scraps of Ferromagnetic Materials
Yueyang Shengang Lifting Electromagnet Co., Ltd.- Certification：ISO9001
- Condition：New
- Operation Form：Remote Control
- Maximum Lifting Height：20-25m
- Maximum Lifting Weight：<20t
- Main Girder Form：Double Girder
Base Info
- Model NO.：MW5-120L,1
- Type：Beam
- Color：Red
- Rated Voltage：220V
- Duty Cycle：60%
- Diameter：1200mm
- Electric Current：45.5A
- Cold-State Power：10kw
- Mass：1700kg
- Lifting Capacity for Steel Ball：7500kg
- Lifting Capacity for Cast Iron：1300,1000kg
- Lifting Capacity for Steel Scrap：600,500kg
- Transport Package：Standard Export Package
- Specification：ISO9001: 2008
- Trademark：SHENGANG MAGNET
- Origin：China
- HS Code：85059010
- Production Capacity：80 Sets Per Month
Description
Normal temperature type(Rated voltage DC-220V;Power-on sustaining rate TD-60%) Model Electric
current (A) Cold-state power
(kw) lifting capacity (kg) cold/hot state Mass (kg) Overall dimension (mm) steel ball
cast iron
steel scrap
A B C D E MW5-70L/1 15 3.3 2500 380/200 120/100 490 700 800 160 90 30 MW5-80L/1 18 3.96 3000 480/250 150/300 620 800 800 160 90 30 MW5-90L/1 26.6 5.9 4500 650/440 250/200 800 900 1090 200 125 40 MW5-110L/1 35 7.7 6500 1000/800 450/400 1350 1100 1140 220 150 45 MW5-120L/1 45.5 10 7500 1300/1000 600/500 1700 1200 1100 220 150 45 MW5-130L/1 54 12 8500 1400/1100 700/600 2010 1300 1240 250 175 50 MW5-150L/1 71.2 15.6 11000 1900/1500 1100/900 2830 1500 1250 350 210 60 MW5-165L/1 75 16.5 12500 2300/1800 1300/1100 3200 1650 1590 370 230 75 MW5-180L/1 102 22.5 14500 2750/2100 1600/1350 4230 1800 1490 370 230 75 MW5-210L/1 129 28.4 21000 3500/2800 2200/1850 7000 2100 1860 400 250 80 MW5-240L/1 154 33.9 28000 4800/3800 2850/2250 9000 2400 2020 450 280 90
To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift?
For example: Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length×Width×Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V, DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).
(More details, please feel free to contact us directly.)

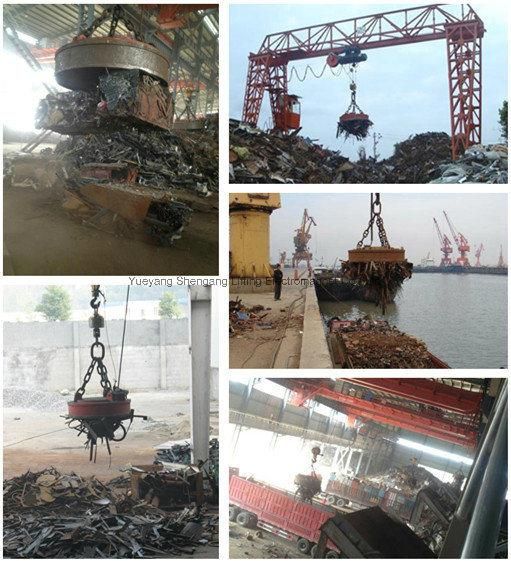

Application Pictures:
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
