• Model NO.：LDTC
• Insulation：F
• Model Number：Dgtc-3.0-350
• Rated Loading Capacity：15t
• Transport Package：Plywood Case
• Specification：high quality
• Trademark：ELK
• Origin：China
• HS Code：8431100000
• Production Capacity：5000sets,Month

Basic Info.

Model NO. LDTC Insulation F Model Number Dgtc-3.0-350 Rated Loading Capacity 15t Transport Package Plywood Case Specification high quality Trademark ELK Origin China HS Code 8431100000 Production Capacity 5000sets/Month

Product Description

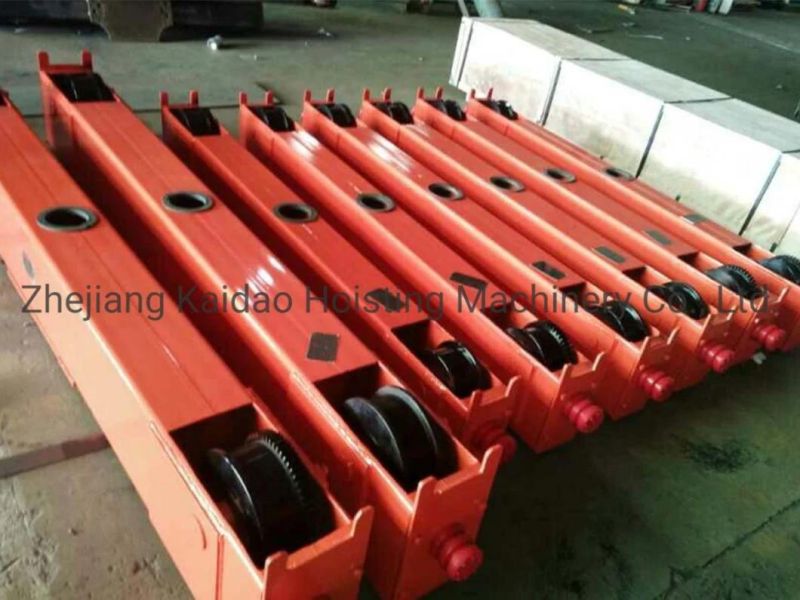

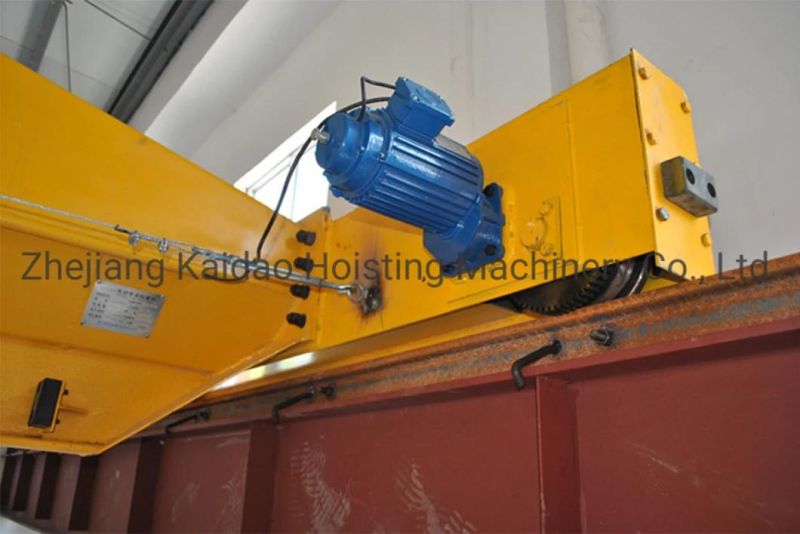

Single track power trolley--End carriage of crane

Features of product as follows:

1. Respective dollies in the system are independently driven.

2. A structure composed of track, side track for horizontamovement, turn plate, and other sections, to form a 3D network for material conveyance.

3. Multiple control mechanism, able for centralized control, scattered control, or distributed control measures, and the dollies are able to perform full automatic operations according to the set program.

4. Random material supply system for random applications for vehicle request by service positions to be made through random material supply system, with random complication of characteristic address code of service positions through dollies, for them to directly reach the stations where vehicles are requested for material supply.

5. Sorting and distributing system for carrying dollies to set address reading stations on the ground according to the characteristic address codes carried by different types of carried cargos, able to achieve automatic sorting and distributing operations and so on.

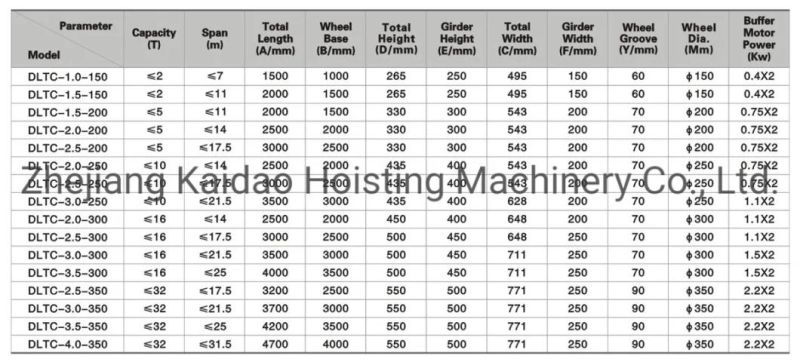

Size Specification for Single-track Power Trolley

Type	DGTC-3.0-350
Length	3.0m
Power	2.2-1.5KW
Orbit	30kg
Gear Dia	350(Φ )mm
Output gear	M5
Capacity	15T
