• Model NO.：MW5-120L,1
• Shape：Round,Circular
• Rated Voltage：DC-220V
• Duty Cycle：60%
• Electric Current：45.5A
• Cold-State Power：10kw
• Diameter of Magnet：1200mm
• Lifting Capacity of Single Steel：7.5ton
• Weight：1700kg
• Conductor Coil：Aluminum or Copper Optional
• Transport Package：Standard Export Package
• Specification：ISO9001: 2008
• Trademark：SHENGANG MAGNET
• Origin：China
• HS Code：85059010
• Production Capacity：100 Sets Per Month

  ModelElectric
current (A)Cold-state

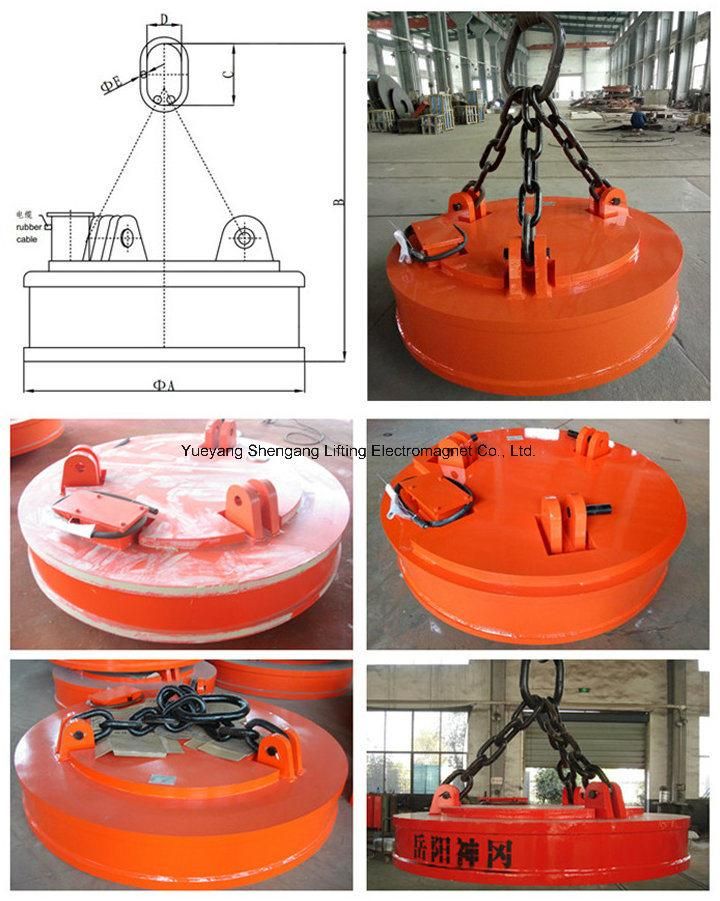

power    (kw)lifting capacity (kg)              cold/hot state           Mass (kg)  Overall dimension (mm)steel ball  cast ironsteel scrapABCDEMW5-70L/1153.32500380/200120/1004907008001609030MW5-80L/1183.963000480/250150/3006208008001609030MW5-90L/126.65.94500650/440250/200800900109020012540MW5-110L/1357.765001000/800450/40013501100114022015045MW5-120L/145.51075001300/1000600/50017001200110022015045MW5-130L/1541285001400/1100700/60020101300124025017550MW5-150L/171.215.6110001900/15001100/90028301500125035021060MW5-165L/17516.5125002300/18001300/110032001650159037023075MW5-180L/110222.5145002750/21001600/135042301800149037023075MW5-210L/112928.4210003500/28002200/185070002100186040025080MW5-240L/115433.9280004800/38002850/225090002400202045028090Complete set of equipment:

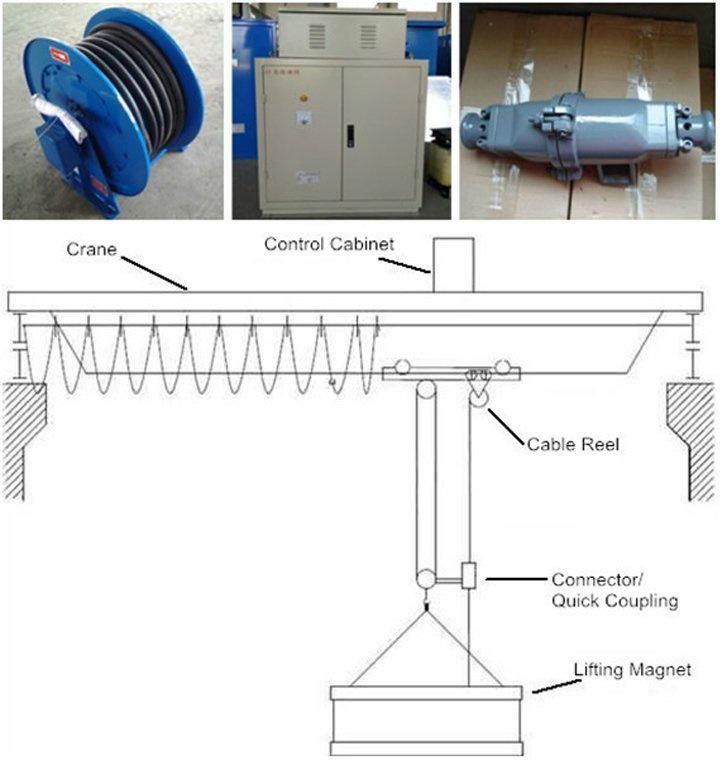

· Lifting electromagnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.




FAQ:


1. Why customers choose us?
We are a professional lifting magnet,cable reel and se[arator products manufacturer with 19 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.



2.What is your payment terms?
Our payment is 30% T/T deposit,70% balance before factory delivery.



3.How long is your delivery time?
A:Standard model is within 10 workdays after deposit confirmed.
Customerized model will depend on actual production needs.



4.What is the total cost of freight?
Please provide your port of destination in order to give accurate freight.



5.Can I have product with our design and nameplate?
Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.



6.What is your warranty and after service?
Our product is with 12 months warranty from delivery. We also support engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
