• Model NO.：LYFOOCRANE
• Span：7.5-22.5m
• Capacity：1ton
• Lift Speed：8,0.8 M,Min
• Travel Speed：20 M,Min
• Work Duty：A3-A5
• Lift Height：6-30m
• Rail：24kg,M
• Hosit：CD,MD
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Wheel
• Installation：Overall Rapid Disassembly
• Transport Package：Plastic Cloth
• Specification：CE
• Trademark：LYFOOCRANE
• Origin：Beijing, China
• HS Code：84253190
• Production Capacity：50000 Units

Basic Info.

Model NO. LYFOOCRANE Span 7.5-22.5m Capacity 1ton Lift Speed 8/0.8 M/Min Travel Speed 20 M/Min Work Duty A3-A5 Lift Height 6-30m Rail 24kg/M Hosit CD/MD Sling Type Wire Rope Power Source Electric Moving Type Wheel Installation Overall Rapid Disassembly Transport Package Plastic Cloth Specification CE Trademark LYFOOCRANE Origin Beijing, China HS Code 84253190 Production Capacity 50000 Units

Product Description

_{Single/Double Girder Overhead Crane}

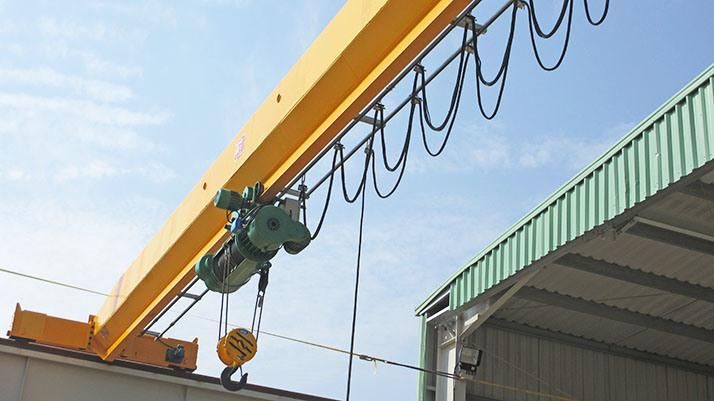

Single Girder Overhead Crane Crane (LD) 1T~30T

The LD type of under running overhead crane (also called bridge crane )is the most popular designing since the very beginning.  Our annual turnout is 20,000 units for the whole market. The main girder adopts 6mm and 8mm thickness steel plate. Chinese workshop has a 1700mm clearrance above the rail, which is excellenct for the maintenance of the crane.  In some Middle East countries, the clearance is  less than this, and please indicate this data when you placing the order.

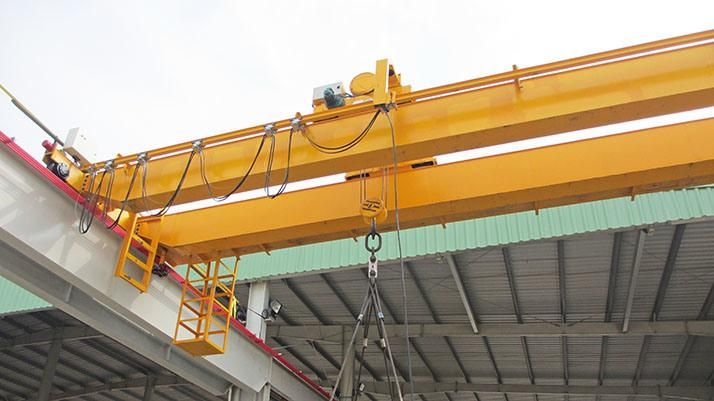

Light Duty Double Girder Overhead Crane (LH) 5T~50T

LH Double Girder Overhead Crane is a light duty overhead crane.  It is excellent for workshop and assembly workshop for light duty job.

Light duty normally refers to A3 (FEM 1) working situation.  It is often used for warehouse, general workshop.

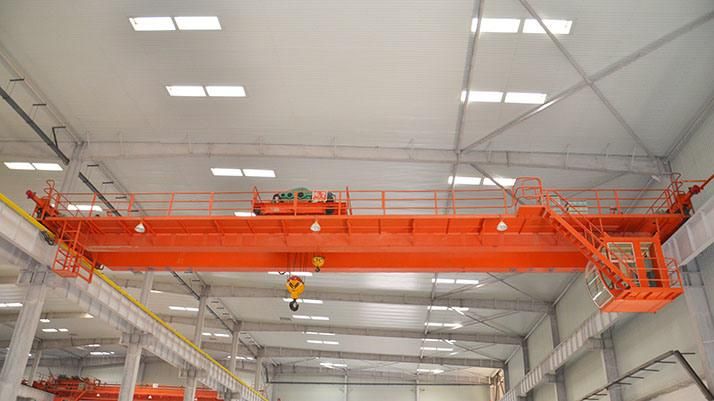

Heavy Duty Double Overhead Crane Crane (LD)

The QD double girder overhead crane is a traditional heavy duty crane which more than 5000 units has been produced each year for the market.  Compare to the light duty LH overhead crane, it is consist of winches system, heavy girder, heavy end carriages.

The work duty is available by A5, A6, A7 and A8.

This crane is designed for workshop, steel factory, shipyard, power house, and all heavy duty working situation.

QD crane is normally controlled by cabinet for a good bird view of the working site.

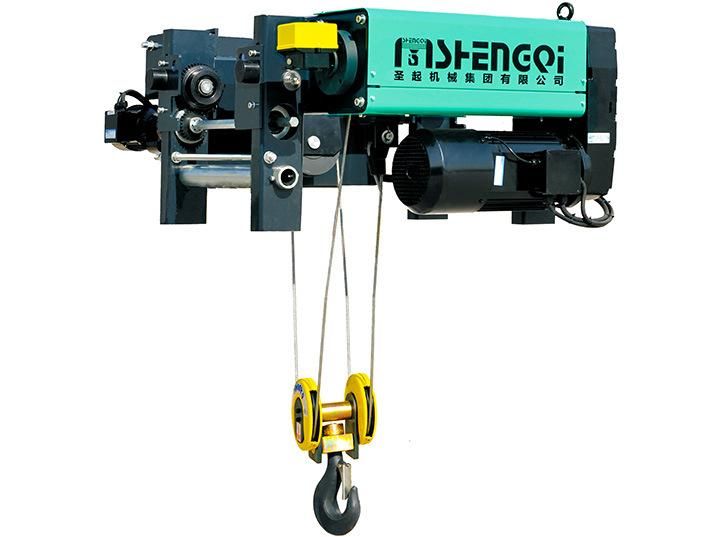

FEM Single Girder Europe Style Overhead Crane Crane (CXTS)

 CXTS Single Overhead Crane is designed and fabricated accoring to FEM standard.   Modular designing is easy for assembly and maintenance.

Hoist Speed:  0.8m/min & 5m/min

Trolley Speed: 0-20m/min by inverter

Crane Speed: 0-20m/min by inverter

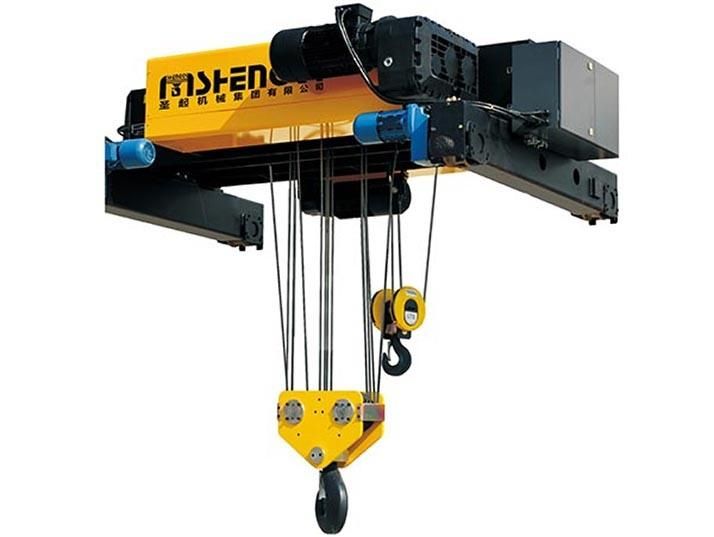

FEM Single Girder Europe Style Overhead Crane Crane (CXTS)

FEM Double Girder Overhead Cranes have light weight, compact structure and low energy consumption. A trolley and lifting mechanism are set on the bridge frame. The trolley can run back and forth, and the trolley can move to realize the transportation of materials in three-dimensional space.

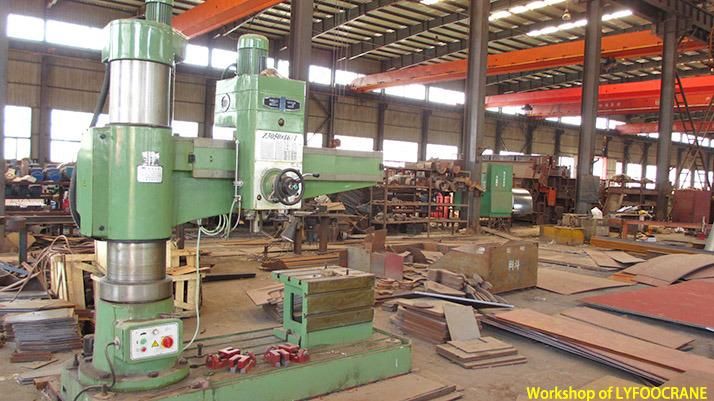

Steel Plate Cutting and Treatment

The board was cut by auto-cutting machine.

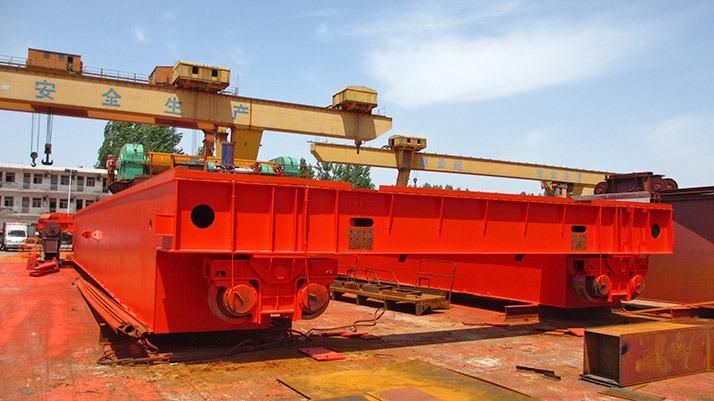

Main Beam

We reserve the concept of "safety factor", and remain the traditional main beam fabrication methord. Each of the beam is made by 6mm thickness of side board, and 8mm top and bellow board.



Bearing System

The  reducer is hardtooth designing. Bearing is HA/WA/LUO 3 brands. Casting box type. The gear box is made by our factory in order to give a reliable quality. The market has many suppliers, and some of them can get 50% price than ours.  However, we do not reduce the quality in order to reduce the cost.



Safety Device

  Long travel limit switch

  Cross travel limit switch

 Counter-weight and pedal limit switch for hoisting

   Pedal limit switch for lowing

   Overload limit switch



End Trucks (Carriage)

Soft start driving system(380v only) makes the long travel smoothly, reduces noise.  Modular system designing gives the crane more free working space. Unique conbinations with steel profiles sections for maximum distance between suspensions.

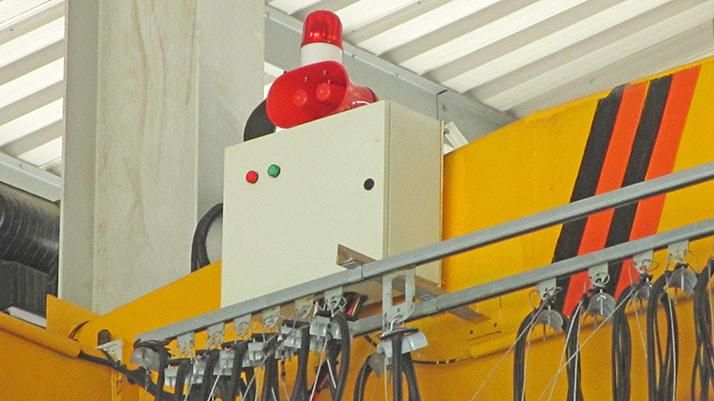

Double C-track Festoon System



 4mm thickness national standard trackpull  and push wheel with sealed bearing

 Flat cable for strong life.

 Electrical box has indication of working.

 This double C-track festoon system makes the driver can be seperate from the hoist , so that give a maximum safety protection.


Capacity	0.5t~20t
Span	4.5m~30m
Lift height	6m~12m
Lifting Speed	7m/min
Cross Travel Speed	20m/min
Long Travel Speed	20m/min or 30m/min
Work Duty	A3(Equal to m2)
Controlled by	Pendant/Radio
Power Supply	380v/400/415v/460v
