Zcc100h 100tons Zoomlion Mobile Crawler Crane for Lifting
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Max. Lifting Height：52m
- Rated Loading Capacity：100ton
- Certification：ISO9001, CE
- Condition：New
- Warranty：1 Year
- Engine Model：Shangchai Diesel Engine
Base Info
- Model NO.：ZCC100H
- Fixed Jib Length：6.1-15.25m
- Type：Under-Slewing Crane
- Transport Package：Nude Package
- Specification：6800*3300*3020mm
- Trademark：Zoomlion
- Origin：Jiangsu, China(Mainland)
- HS Code：84295212
- Production Capacity：5000PCS,Year
Description
Item
Value
Remarks
Max. lifting capacity × Radius
100×3.7t ×m
Deadweight with basic boom
48t
Main boom length
13~52m
Fixed jib length
6~15m
Max. lifting capacity of fixed jib
5t
Offset angle of fixed jib
10,30°
Max. length of main boom with fixed jib
43+15m
Max. speed of single rope on drum
Main winch
120m/min
The 4th rope layer
Auxiliary winch
120m/min
The 4th rope layer
Derricking winch
60m/min
The 4th rope layer
Slewing speed
0~3.0rpm
Traveling speed
0~1.6km/h
Gradeability
40%
Ground pressure
0.066MPa
Overall dimensions (L×W×H)
6800×3300×3020mm
Engine
Rated power/ rotational speed
132/2200kW/rpm
Max. output torque/ rotational speed
750/1300Nm/rpm
Emission standard
EU Stagethird
Crawler gauge × ground contact length × track shoe width
2540×4700×760mm
Crawler carrier retracted
3540×4700×760mm
Crawler carrier extended

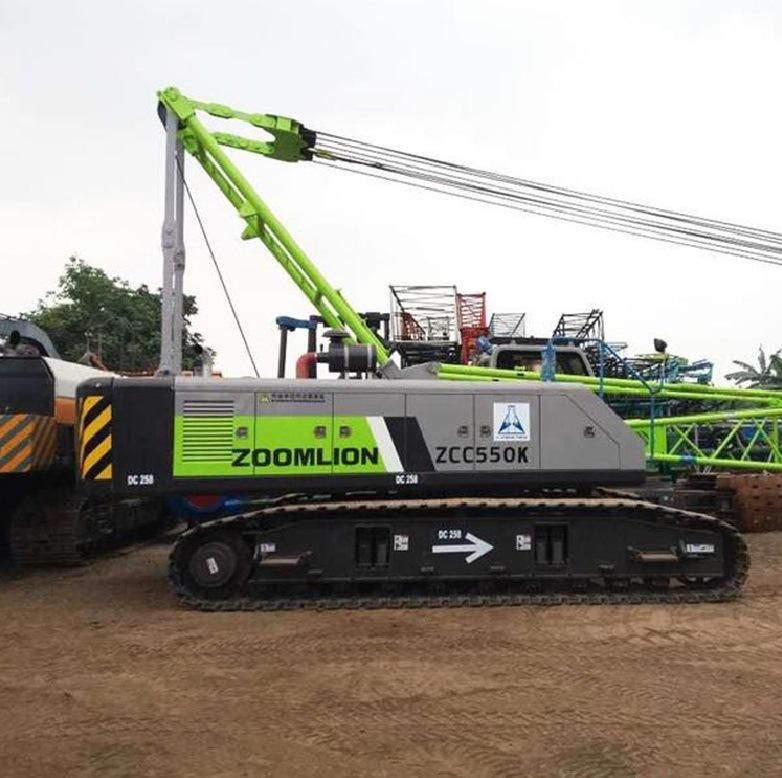

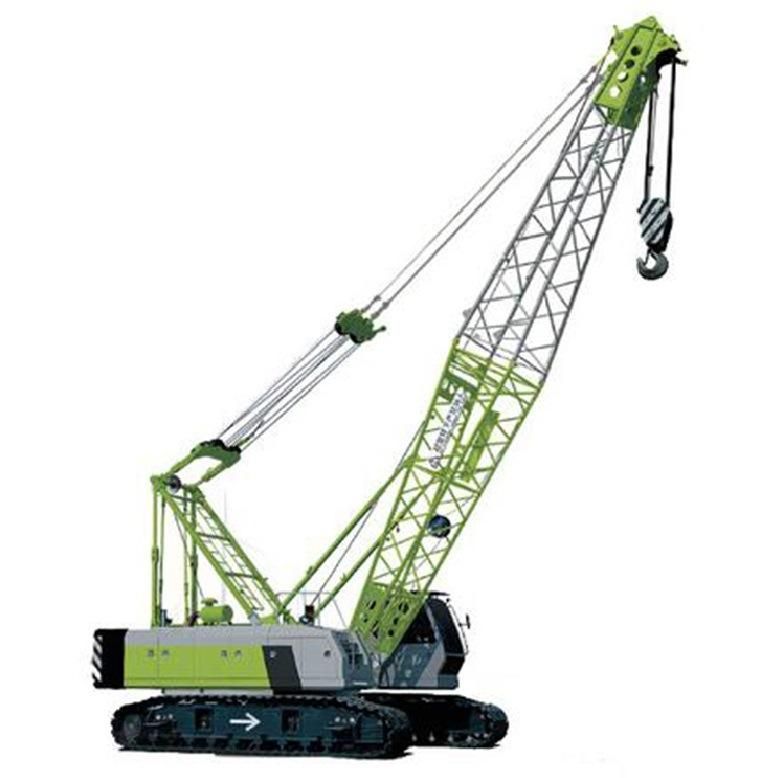

Product Pictures
