• Model NO.：XCT30
• Type：Straight Arm
• Total Weight in Travel：31750
• Engine Rated Power：206kw
• Min. Turning Diameter：22m
• Min. Rated Working Radius：3000mm
• Transport Package：Nude
• Specification：8225x3016x3515
• Trademark：XCMC
• Origin：China
• Production Capacity：350units,Month

DimensionUnitQY25K5-IOverall lengthmm12300Overall widthmm2500Overall heightmm3350Weight  Total weight in travelkg31750Front axle loadkg6550Rear axle loadkg25200Power  Engine model SC8DK280Q3WD615.329Engine rated powerkW/(r/min)206/2200213/2200Engine rated torqueN.m/(r/min)1112/14001160/1400Travel  Max. travel speedkm/h80Min. turning diameterm22Min. ground clearancemm260Approach angle°16Departure angle°13Max. grade ability%40Fuel consumption for 100kmL≈37Main performance  Max. rated total lifting capacityt25Min. rated working radiusmm3000Turning radius at turntable tailm3.065Max. lifting torquekN.m961Base boomm10.4Fully extended boomm39.5Fully extended boom+jibm47.8Longitudinal outrigger spanm5.14Lateral outrigger spanm6Working speed  Boom luffing times68Boom full extension times150Max. swing speedr/min2.5Max. speed of main winch (single rope) (no load)m/min125Max. speed of aux. winch (single rope) (no load)m/min125

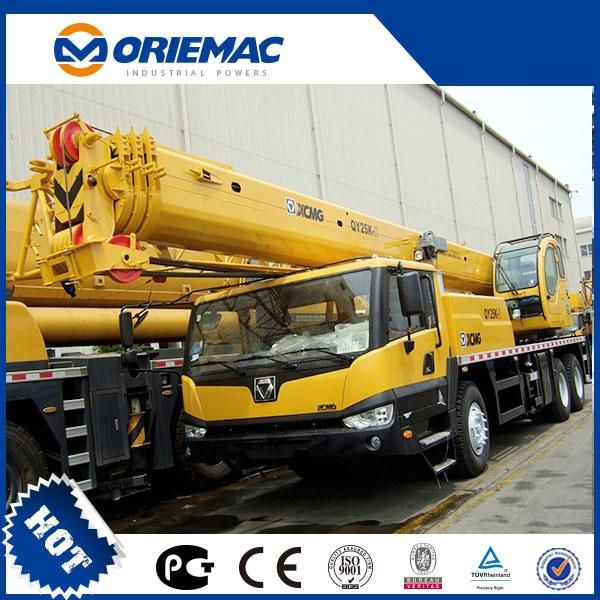

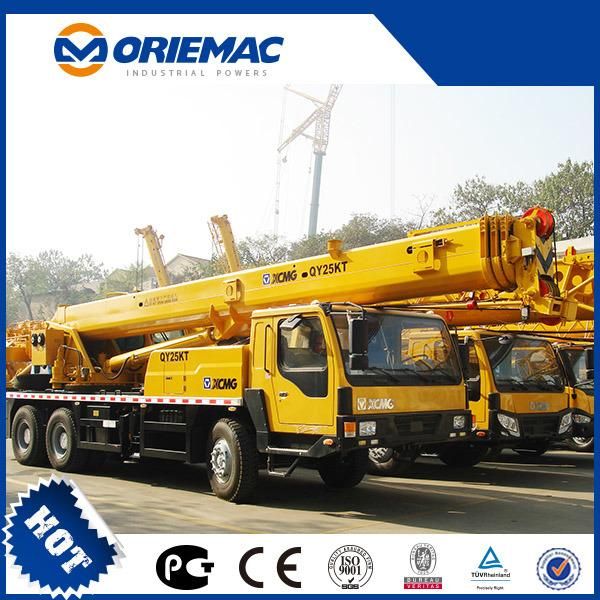

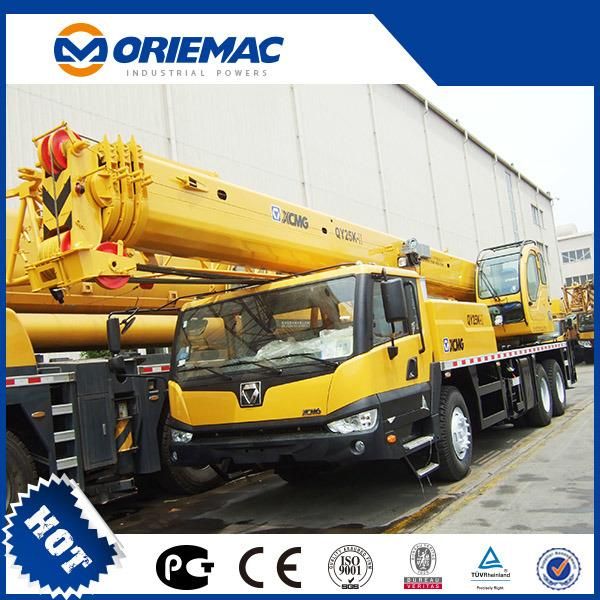

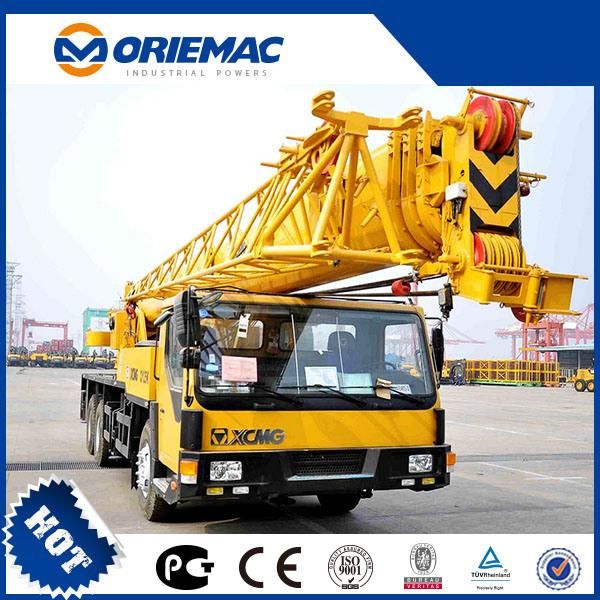

Product Show
