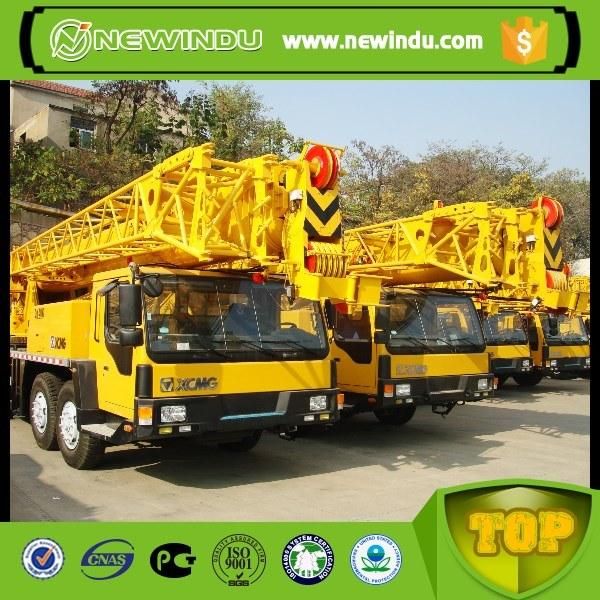

• Model NO.：QY16C
• Type：Straight Arm
• Max. Lifting Height：61m
• Rated Lifting Moment：5252.8kn.M
• Span：8.0m
• Transport Package：Nude Packing by Roro Shipment
• Specification：160ton
• Trademark：Newindu
• Origin：China
• HS Code：8705109100
• Production Capacity：100sets,Month

ClassificatoryItemUnitParameterEngineModel D6114Outline dimensionOverall lengthmm11990Overall widthmm2500Overall heightmm3350Wheel baseAxle 1, Axle 2mm4025Axle 2, Axle 3mm1350MassTotal mass in travel statekg22900 Axle 1kg5240Axle loadAxle 2kg17660Travel performanceTravel speedMax. travel speedkm/h70Min. stable travel speedkm/h4Turning diameterMin. turning diameterm20Min. turning diameter at boom tipm23Min. ground clearancemm270Approach angle(°)21Departure angle(°)10Braking distance (at 30km/h with full load)m9.5Max. grade-ability%24Fuel consumption for 100kmL35PowerEngine rated outputkW/(r/min)158/2200Engine rated torqueN.m/ (r/min)790/1400Engine rated speedr/min2200ClassificatoryItemUnitParameterLifting performanceMax. total rated lifting capacityt16Min. rated working radiusm3Turning radius at turntable tailm≤3.12Max. load momentBase boomkN.m711Fully extended boomkN.m449Fully extended boom + JibkN.m186Outrigger spanLongitudinalm4.6Lateralm5.4Lifting heightBase boomm≥9.9Fully extended boomm≥23.6Fully extended boom + Jibm≥30.8 Boom raising times≤60Working speedBoom full extension times≤75 Max. swing speedr/min≥2.5 Hoist speedMain winchFull loadm/min≥54 (single line)No loadm/min≥100  Aux. winchFull loadm/min≥54  No loadm/min≥100Noise limitCrane exterior noisedB (A)≤118At seated positiondB (A)≤90Product photos
