• Model NO.：ZTC550
• Type：Straight Arm
• Base Boom：11.3m
• Max. Load Moment of Basic Boom：2009kn.M
• Max. Lifting Height of Main Boom：43.6m
• Fuel Consumption for 100km：37L
• Max. Lifting Height of Jib：59m
• Boom Elevating Time：40s
• Rear Axle：24600kg
• Boom Demrricking up Time：50s
• Max.Total Lifting Capacity：55t
• Transport Package：Nude
• Specification：130cbm
• Trademark：MAFAL
• Origin：Hunan
• HS Code：87051091
• Production Capacity：200units

ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg55000Max. load moment of basic boomkN.m2009Max. load moment of main boom(fully extended)kN.m1050Max. load moment of basic boomm12.6Max. lifting height of main boomm45Max. lifting height of jibm59.5Working speeds    Max. hoist rope speed(Main winch)m/min120Max. hoist rope speed(Auxiliary winch)m/min120Boom demrricking up times50Boom demrricking up times95Slewing  speedr/min0-2.2DrivingMax. driving  speedkm/h76Max. gradeability%40Turning diameterm≤24Min.  ground clearancemm260Oil consumption per hundred kilometersL43MassDeadweight in driving conditionkg42000Complete vehicle kerb masskg41870Front axle loadkg16000Rear axle loadkg26000DimensionOverall dimensions(L×W×H)mm13700×2800×3650Longitudinal distance between outriggersm5.92Transversal distance between outriggersmFully extended:7.1,
Intermediately extended:4.8Tail slewing radiusmm3900Main boom lengthm11.4 - 43.0Main boom angle°-2 - 80jib lengthm9.5,16.0Offset°0,30

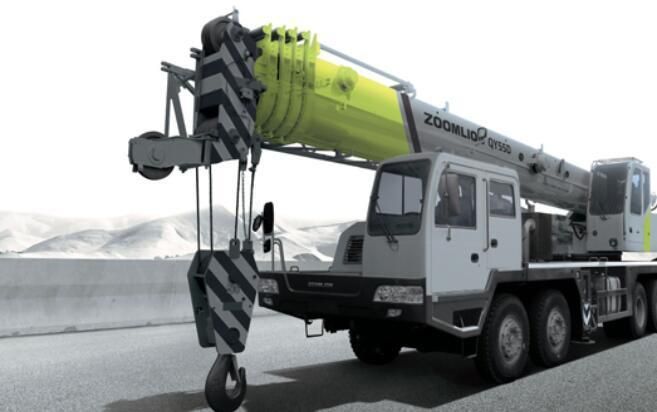

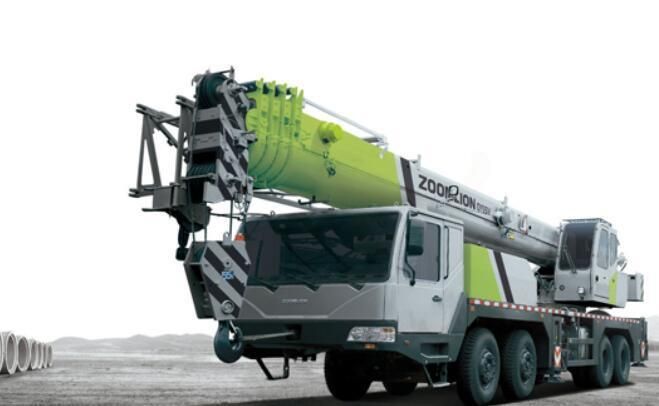

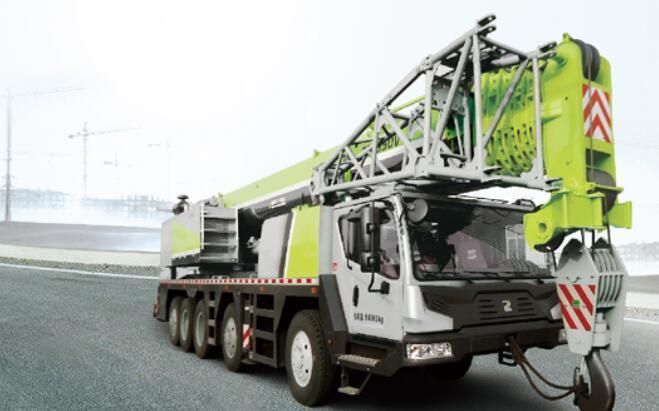

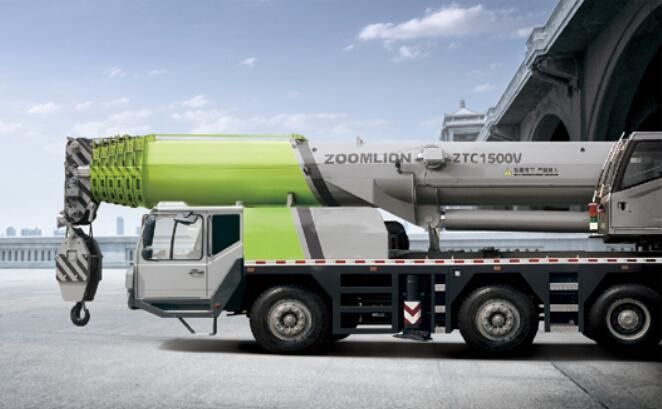

Photos:

1.. Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya, Ghana,Algeria,etc.

2.What are our advantages compared with other manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for supporting spare
parts,like engines,bridge,transmissions,and many parts designed and produced
by ourselves,
always adapting the best materials.
2)Competitive Price: Concentration of mechanized production in large quantities reduce
production cost to ensure that our price is competitive.
3)Service Team: First, our sales managers are online 24 hours,ready to answer your
questions at any time. Second, professional maintenance team with senior technicians,
ready to provide support services to users and dealers. Most problems can be solved
within 24 hours.
4)Fast Delivery:Under normal circumstances,we can delivery with 10 working days in
factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall
be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses" can be accepted.
4. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through one year, we only adjust
our price based on two situations:
1)The rate of USD
2)TheThe price of material

Other questions, please contact me directly!!
